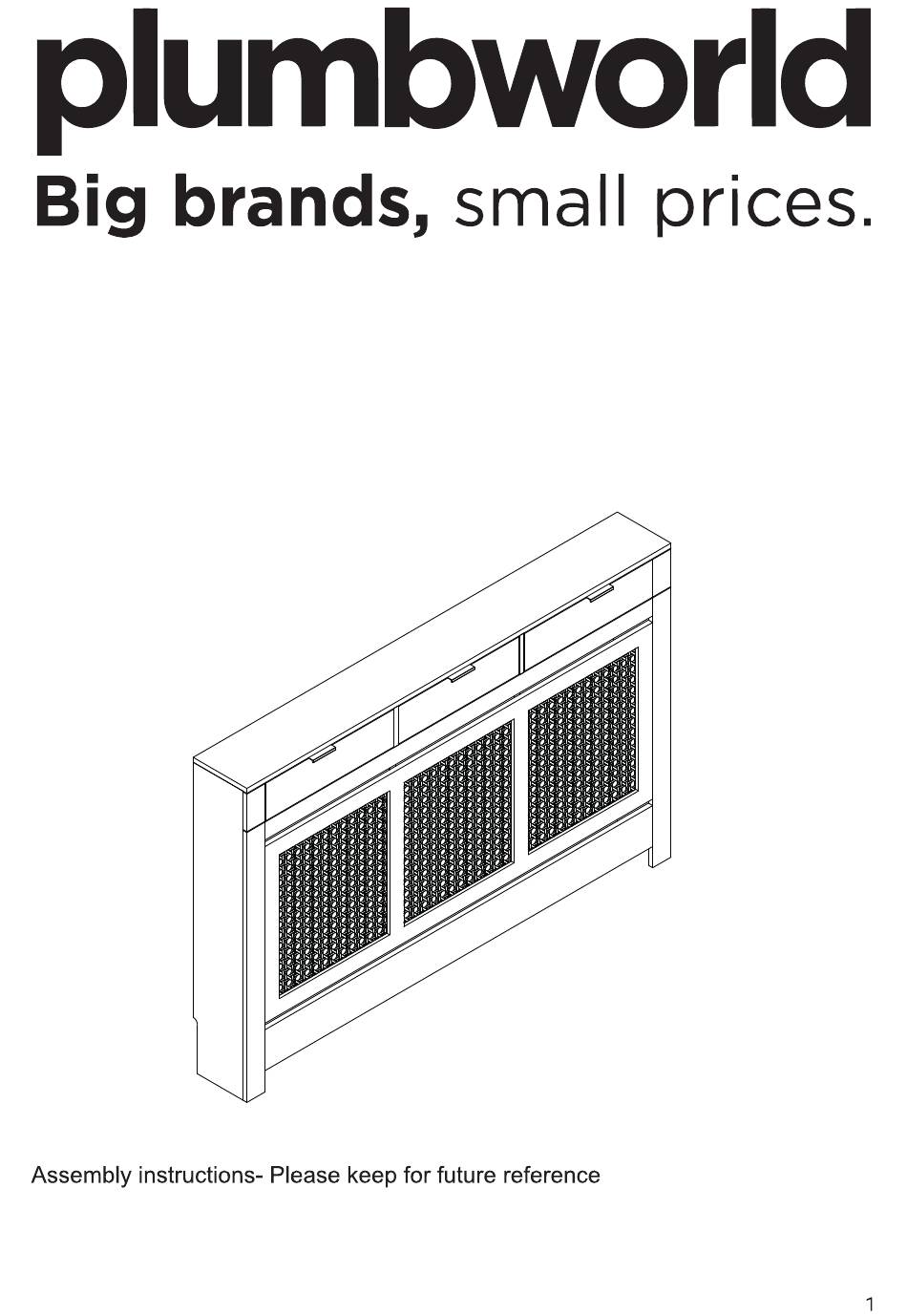

- Page 1 Large Radiator Cover with 3 Drawers PWLPRADC15 PWLPRADC18 Issue 1 - 24/11/22...
- Page 2 WARNING! IN ORDER TO PREVENT OVERTURNING THIS PRODUCT MUST BE USED WITH THE WALL ATTACHMENT DEVICE PROVIDED Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent this item of furniture tipping over: • Use the wall attachment device provided. •...
-
Page 3: Tools Required
Fittings NOTE: The quantities below are the correct amount to complete the assembly. In some cases Cam Stud x 34 Cam Socket x 34 Dowel x 36 35mm screw x 16 10mm screw x 12 Handle x 3 Large Joint Plate x 4 12mm screw x 34 Wall Strap Kit x 2 Wall Plug x 2... -
Page 4: Panel List
Panels Panel List Top panel 150 x 19 x 1.5 cm Left side panel 94.5 x 17.8 x 1.2 cm Right side panel 94.5 x 17.8 x 1.2 cm Horizontal panel 147 x 17.5 x 1.2 cm Back panel 149 x 14.5 x 0.3 cm Face left side panel 75 x 6.5 x 1.2 cm Face right side panel... - Page 5 10mm screw x 12 Handle x 3 Cam Stud x 24 Drawer Stop x 6...
- Page 6 Cam Socket x 4 Dowel x 8 35mm screw x 4 For how to use camlocks watch our video: www.youtube.com/ watch?v=tBMdYxtpu88 Dowel x 14...
- Page 7 Small Joint Plate x 2 12mm screw x 20 Large Joint Plate x 4 Cam Stud x 10 Long Joint Plate x 2 10mm screw x 8...
- Page 8 Cam Socket x 10 Dowel x 6 Cam Socket x 8 Dowel x 8...
- Page 9 10mm screw x 14 Cam Socket x 12...
- Page 10 35mm screw x 12...
- Page 12 Wall Strap Kit x 2 Wall Plug x 2...
- Page 13 Using camlocks Step 1 Step 3 Connect the male Push the male camlock camlock as directed in into every hole. the assembly instructions using a screwdriver. Step 2 Step 4 Insert the female Turn the female camlock camlock as shown in the with a screwdriver.
