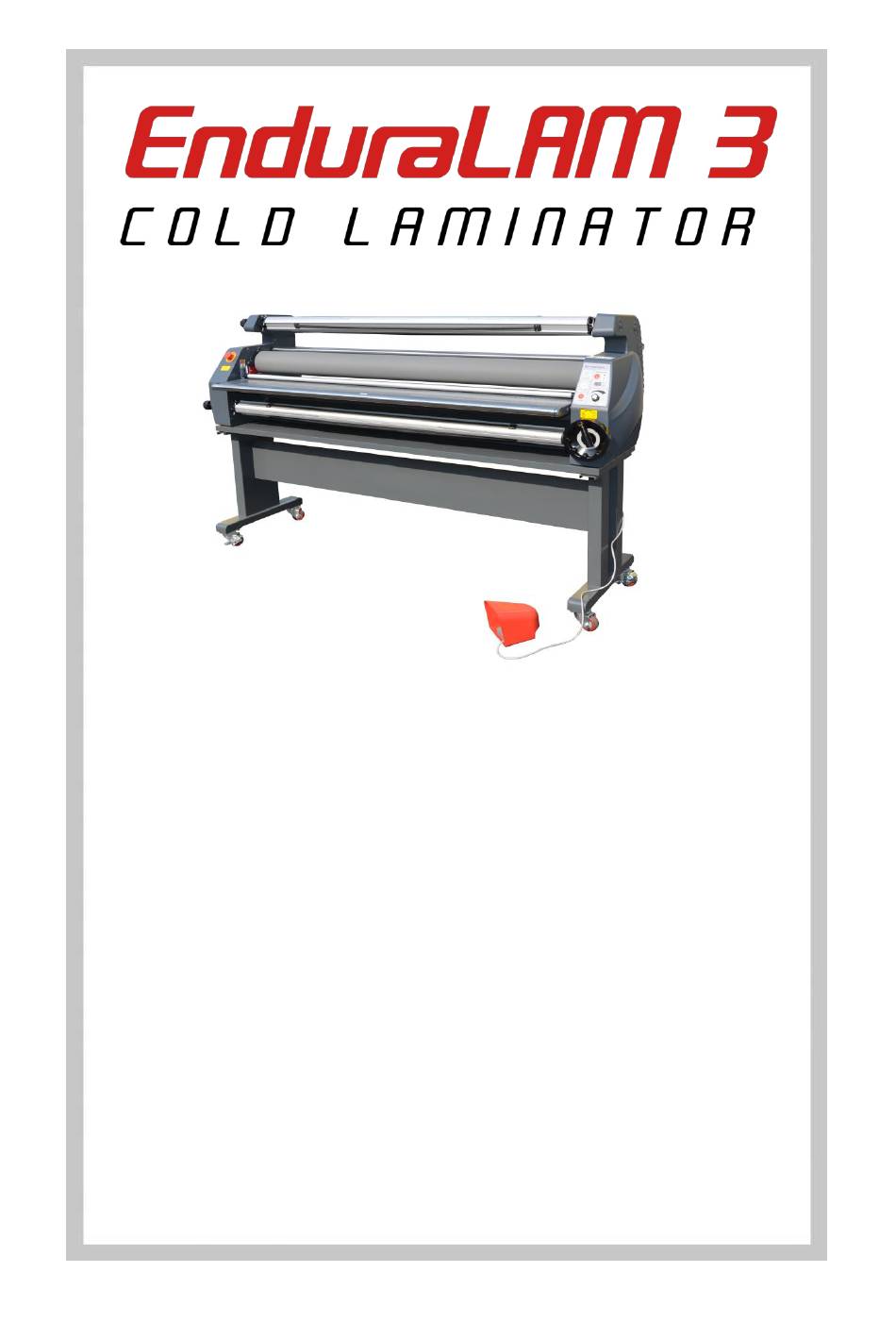

- Page 1 EnduraLAM 3 User Manual LMN-ES-C-55-1400E COLD LMN-ES-C-55-1700E COLD 10-27-21 Please read this manual in detail before operation...
-
Page 2: Table Of Contents
CONTENT Features：............................2 INSTALLATION ........................3 1.1 NOTES: ..........................3 1.2 Frame assembly ........................4 1.3 Machine Installation ......................5 Safety ..........................8 2.1 Warning Symbols ......................... 8 2.2 Safety parts ......................... 9 2.3 SAFETY NOTICE ........................10 Technical parameter ....................11 PARTS OF LAMINATOR ..................... -
Page 3: Features
Description： Thank you for purchasing an EnduraLAM III laminator. In addition to the traditional function of cold lamination, auto-peeling of liner paper and print take-up, it has the function of increasing the laminating pressure. The function can effectively improve the output quality. Besides, smarter and people-oriented innovation in the design concept and details will give you simple and relaxing lamination experience. -
Page 4: Installation
SIGNWarehouse Product Support or Customer Service at your earliest opportunity. 2. After unpacking, check the contents against the packing list to make sure everything has been shipped as expected. -
Page 5: Frame Assembly
1.2 Stand assembly Unpack all the parts for the floor stand and make sure there are no missing pieces. Assemble the two legs and all shafts according to FIG 1 below. Install the casters to the left and right legs（Where two casters with brakes and two without brakes are supplied, make sure you install one of each kind on each end of the stand.). -
Page 6: Machine Installation
1.3 Machine Installation 1) Carefully unwrap and remove the laminator from crate. This will require at least two able-bodied adults. Use 4 of the supplied M10 screws to mount the laminator to the floor stand. Take care to position the laminator facing the same direction as the front of the cross-bar, as seen below (FIG2). - Page 7 Working Table Installation （Refer to Pic） 。 2） Hold the media feed table sideways and place it onto the front of the laminator. Align the media table opening and screw. 2. Under the feed table(A), at each end, push the table interlocks towards the side frames to secure the feed table.
- Page 8 Power: Cables and On/Off Switch A: Power switch B: Power cable C: Foot Pedal connector 7） Turn on the machine, roller is rotating. Make trial laminating if everything is well and check the lamination result.
-
Page 9: Safety
2 Safety Read the safety instructions and familiarize yourself with the main structure, performance and operation measures before starting the machine. When using the equipment, please take note of the warning labels placed on the surface. These are provided to support safe operation of the product. -
Page 10: Safety Parts
Hands, hair, or clothing caught in chains or gears may pose risk of injury. C. Crush Hazard: Placing hands or fingers in or near rollers during operation may pose hazard of injury to hands. Keep hands away from rollers during operation. D. -
Page 11: Safety Notice
2.3 SAFETY NOTICE All operators should read this manual before using the product. The power supply should match the power requirements on the nameplate and specifications. Use a grounded three-plug power cable. Do not change the ground wiring. ... -
Page 12: Technical Parameter
3 EnduraLAM Specifications specification EnduraLAM 55 EnduraLAM 65 Maximum media width 55 inches 63 inches maximum laminating speed 19.6 feet/min 19.6 feet/min Roller Diameter 4072 inches (120mm) Roller Maximum Height 1.38 inches (35mm) Roller Lifting method Manual, hand crank Voltage 220V/110C AC 50Hz Power Laminator: 120W, Motor: 90 - 120W... -
Page 13: Parts Of Laminator
4 PARTS OF LAMINATOR 4.1Front view 1.Caster 2. Bracket 3. Shaft 4.left cabinet 5.Emergency Stop 6.Working table 7. Media guide rod 8.Roller 9.Liner take up 10. Control panel 11.Right cabinet 12.Hand crank 13.Foot pedal 4.2 Back view... -
Page 14: Notes
1.connection 2. Media take up 3.Film unwind 4.Friction wheel 5.Electric parts cabinet 4.3 Notes ◼ Foot Pedal The Foot pedal is another way to control the motion of the rollers. This is a convenient option for working with large-format media. In some instances, your hands will be busy loading media. - Page 15 3. Grasp the media feed table near the middle and pull outwards. ➢ Assemble the front turntable： 1. Hold the middle part of working table, put down slowly. 2. Put down while the gap against screw. 3. Lock the plug. ➢...
- Page 16 roller is controlled by drive motors, manual crank and speed control switch. The top roller is operated by friction against the bottom roller. NOTE: Keep hands away from pressure rollers during operation. In case of accidental entanglement, press the Emergency Stop button. ◼...
- Page 17 • Film unwind shaft (B) • Media rewinder (C) • Media unwind shaft (D) The four shafts are interchangeable. The film liner rewinder and media rewinder are actuated by the drive motors. The film unwind shaft and media unwind shaft are not. Remove the pin from saddles, then move out one side of shaft.
- Page 18 roller pressure has been achieved. NOTE: It is a default position ,Do not adjust ◼ Drive system ⚫ Film unwind drive liner take up through the sprocket wheel. The running speed is different because the number of teeth of the two sprockets is different, you can adjust the two brake tension knob to change the speed ratio.
-
Page 19: Usage Of Machine
5 USAGE OF MACHINE ◼ Power Connection ⚫ Power cable: Use the supplied 120V Power Cord to connect the machine to a 110/120 Volt 20-amp receptacle. ⚫ Main switch: It is installed in the rear of machine (Cold series is the rocker switch) the switch has two positions, up to open, down to close. - Page 20 NOTE: Remove the hand crank before flipping upward. ◼ Function shaft Installation and using Three rubber straps on each shaft are designed to create friction against the inside of the media core. Slide the 3” core on the shaft, then rotate it to tighten the core on the shaft.
- Page 21 fiber friction pad and bracket to create the necessary friction. The friction pad for media rewind is also a consumable that will need to be replaced over time. When friction diminishes to the point where the film unwind function is impaired, inspect and replace the friction pad.
- Page 22 ADJUSTING ROLLER ALIGNMENT AND PRESSURE 1.left pressure bracket 2. left cabinet 3. Spring 4. top pressure bracket 5. pressure bolt 6. Screw The top and bottom rollers are the key components of the laminator and they directly affect the quality of laminating. The rollers are aligned parallel to each other at the factory. The alignment may be affected by jostling during shipping.
- Page 23 roller pressure on the left side. Adjust the bolts behind the left side cover to reduce the pressure. It should be possible to keep same adjustment for bolts on both sides. NOTES：Measure the length of both springs and adjust them so that they are the same height.
-
Page 24: Laminating Process
6.2 Operation Lamination is somewhat complex process. Beginners should seek the assistance of an experienced laminator operator is possible. If this is not possible, please contact SIGNWarehouse Product Support for setup assistance and troubleshooting as needed. What follows is a summary of the cold lamination process. -
Page 25: Notes For Operation
For a detailed video demonstration of this process, please refer to our EnduraLAM 3 laminator video at techsupport.signwarehouse.com Note: the laminating performance is related to the friction adjustment of all shafts. 6.3 Notes for Operation Place the laminator on a stable flat surface with good ventilation. -
Page 26: Trouble Shooting
If the image is skewing to the left or right of the machine, it indicates the pressure on one side is higher than that on the right side. Adjust the pressure (See chapter 4). 7 Trouble shooting First of all, please ensure that all components are working properly. If not, contact SIGNWarehouse Product Support for assistance. -
Page 27: Maintenance
The motor runs fast and Potentiometer failure. Replace speed potentiometer. controlled. rotation chains Tighten the chains. rollers stops from time loose. to time. film peeling-off The damping of the liner Reduce its damping by separation point is too paper roll is too high. turning tension high. -
Page 28: Maintenance Of Rollers
8.1 Maintenance of rollers The main rollers are the crucial parts of the machine. They directly control the output quality of lamination. Please maintenance the pressure rollers as follows. Lift the upper rollers after use to prevent deformation, or ‘flat-spotting’ of rollers. Keep work knives and other sharp edges well away from the rollers. -
Page 29: Cleaning
8.2 Cleaning To extend the lifetime of the machines, please ensure the machine is clean. Make sure the operating environment is clean and free of obstacles that can interfere with laminator media loading, unloading, or operation. 8.3 Checking In order to ensure operator safety, please check the condition of the machine regularly. If you find failures in the check, please refer to the Trouble shooting section. - Page 30 Caution: When use the foot pedal, the safety sensor is deactivated. How to Get Help Each EnduraLAM 3 comes with a one-year warranty and one year of Gold Support. To obtain technical support, please visit www.signwarehouse.com, create or log in to your customer account,...
