EnduraLAM 24
User's Manual
LMN-ES-C-25
10-27-2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the EnduraLAM 24 and is the answer not in the manual?

Questions and answers

Related Manuals for SignWarehouse EnduraLAM 24

Summary of Contents for SignWarehouse EnduraLAM 24

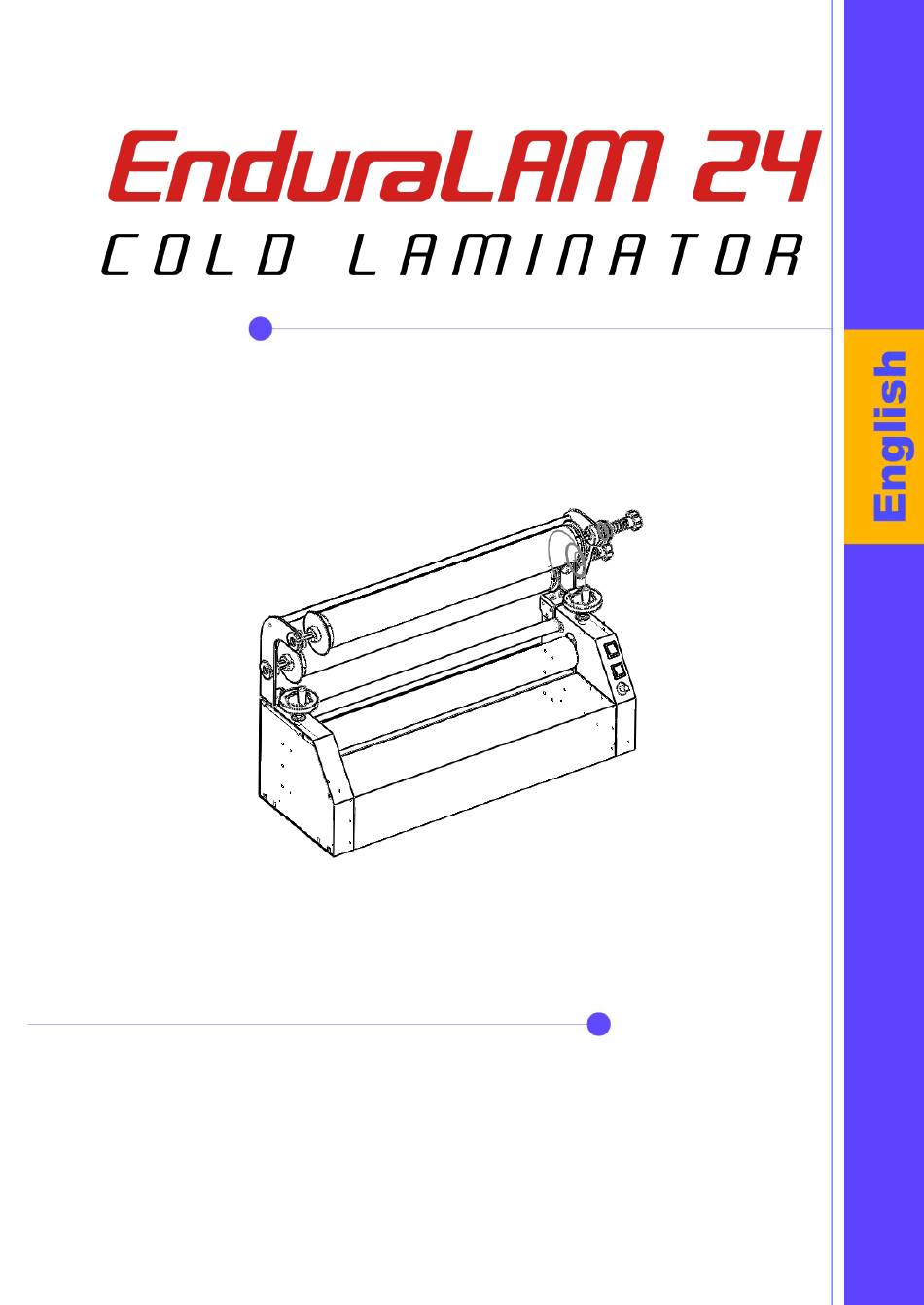

  • Page 1 EnduraLAM 24 User’s Manual LMN-ES-C-25 10-27-2021...

  • Page 2: Product Introduction

    It is simple and economical, but still quite capable. The basic principle of the EnduraLAM 24’s operation: the drive motors turn to top and bottom rollers. The media and liner rollers are friction driven. This design makes it simple and affordable.
  • Page 3 EnduraLAM 24 Technical specifications Machine Model LMN-ES-C-25 Maximum laminating width 25.6 in (650mm) Laminating speed 16 ft/min (5m/min) Maximum media roll diameter 5.9 in (150mm) Maximum media thickness 0.9 in (25mm) Roller diameter 65mm Supply voltage 250V/1A Governor Motor DC 12V30W...
  • Page 4 1. Before unpacking, carefully check for signs of apparent shipping damage. If there is any indication that the product has been damaged, note it on the bill of lading and contact SIGNWarehouse Product Support or Customer Service at your earliest opportunity.

  • Page 5: Safety Precautions

    Control Panel Power Supply and Switch Direction switch Fuse Power switch Power Socket Speed adjustment Foot Pedal Socket Figure2 Laminating process： Figure 3 Safety Precautions： 1. Read the safety instructions and familiarize yourself with the main structure, performance and operation measures before starting the machine.
  • Page 6 cable. Do not change the ground wiring. NOTE: This model does not have a safety sensor designed to stop the rollers in the event of an object coming into contact with the pressure rollers. All operators should take care to keep hands, fingers, hair and loose clothing away from the pressure rollers during operation.

  • Page 7: Warranty And Support

    Warranty and Support Each EnduraLAM24 comes with a one-year warranty and one year of Gold Support. To obtain technical support, please visit www.signwarehouse.com, create or log in to your customer account, and use the Contact Us link at the top of any page on the website to fill out and submit a support ticket.
  • Page 8 - 7 -...
