Your Water Hardness (ppm)
Cyan Water
Your Water Is Classed As
Average Water Hardness In Your Area
DO I NEED A WATER SOFTENER?
If your water hardness is above 100ppm then you could
benefit from a water softner.
Based on the information provided in your survey and
your water hardness. we have recommended some of
our water softners that would be suitable for you below..
Your Water Softener Recommendations
350
Very Hard Water
310
Softener
Product Manual
Cyan Domestic Water Softener 18L - $590
Example Text
Example Text
Example Text
Cyan Domestic Water Softener 18L - $590
Example Text
Example Text
Example Text
Cyan Domestic Water Softener 18L - $590
Example Text
Example Text
Example Text
Test ID: [XXX]
WATER HARDNESS CLASSIFICATION
BY PARTS PER MILLION
SOFT WATER
MODERATELY SOFT WATER
SLIGHTLY HARD WATER
MODERATELY HARD WATER
HARD WATER
VERY HARD WATER
Advertisement
Related Manuals for ULTRA SOFT Cyan
Summary of Contents for ULTRA SOFT Cyan
- Page 1 Product Manual your water hardness. we have recommended some of our water softners that would be suitable for you below.. VERY HARD WATER Your Water Softener Recommendations Cyan Domestic Water Softener 18L - $590 Example Text Example Text ...
- Page 2 Planning Your Installation Please observe the regulations concerning the installation of your water softener. For guidance check out the water regulations advisory service web site (www.wras.co.uk). Check that you only have one rising main, that you have allowed space for access to the unit for possible future maintenance and salt replenishment.
- Page 3 Water Pressure Test It is important that a pressure test is carried out. High and low water pressure can result in either damage to or failure of the softener. Although the water softener is tested to a pressure of 6 bar (87psi), we recommend the fitting of a pressure limiter should your pressure exceed 4 bar (58 psi).

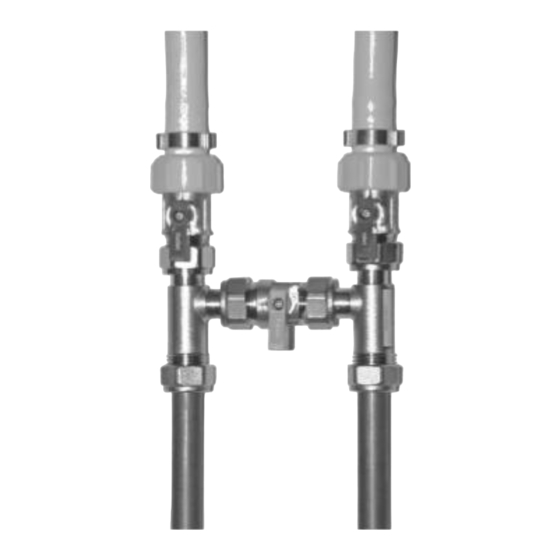

- Page 4 Connecting The Softener Once you have completed the installation of the valves set the valves as follows: Softener Inlet And Outlet Valve CLOSED Bypass Valve OPEN You can now safely return the stop cock to the open position. Using the hoses provided (if installation kit ordered) connect the straight end of the hose having first inserted the washer provided to the softener inlet and outlet valves.
-
Page 5: Product Manual
‘Advanced Settings’ and Press CONFIRM. Scroll down to ‘Set Residual Water’ and press CONFIRM. This will show you the total amount of treated water the softener can achieve before regeneration. For reference the Cyan has a resin capacity of 12.5 litres. If you need to change capacity settings, follow this calculation: “Resin Capacity”... - Page 6 Service Water flows into the valve at the top, down through the resin and then up through the ‘riser’ tube in the middle of the vessel. As the water travels through the resin the ion exchange takes place. The controllers are set to automatically regenerate on capacity. The display on the control will show the following;...
- Page 7 Step 2: System Setup Change Override Days (Default 14 Days) Press CONFIRM to show menu, scroll to ‘Advanced Settings’ and press CONFIRM. Then scroll down to ‘Set Max Days/Rchg’ and press CONFIRM. You can now scroll up and down to change the amount of days for the override.
-
Page 8: Troubleshooting
Troubleshooting Following the below as a guide you can find the most common problems that may arise; please consult this section before contacting us as most problems are easily cured by following this information. Problem Cause Correction Softener fails to regenerate A. - Page 9 Softener fails to draw A. Line pressure is too low A. Increase line pressure brine B. Brine line is plugged B. Clean brine line C. Brine line is leaking C. Replace brine line D. Injector is plugged D. Clean or replace injector E.
- Page 10 Interrupted or irregular brine A. Water pressure too low or A. Increase water pressure not stable B. Clean or replace injector C. Check and find reason B. Injector is plugged or D. Clean the floccules in faulty resin tank C. Air in resin tank D.
