TiGHT AV AU-BT413WP-DA Manual

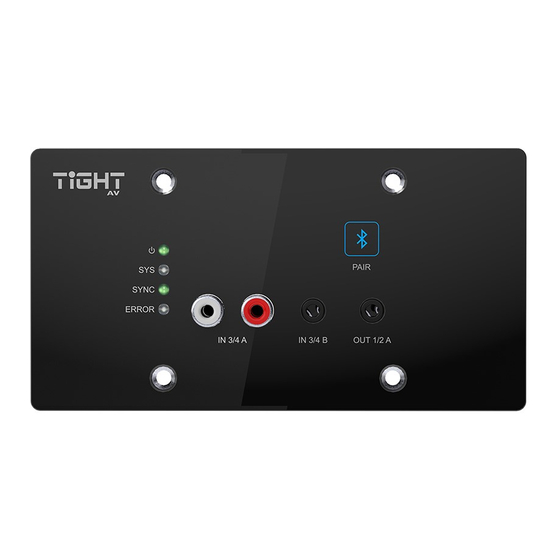

Wall panel 4x3 dante/aes67 interface with bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AU-BT413WP-DA
Wall panel 4x3 Dante/AES67 interface with
Bluetooth
All Rights Reserved
Version: AU-BT413WP-DA_2023V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AU-BT413WP-DA and is the answer not in the manual?

Questions and answers

Related Manuals for TiGHT AV AU-BT413WP-DA

Summary of Contents for TiGHT AV AU-BT413WP-DA

  • Page 1 AU-BT413WP-DA Wall panel 4x3 Dante/AES67 interface with Bluetooth All Rights Reserved Version: AU-BT413WP-DA_2023V1.0...
  • Page 2 Wall panel 4x3 Dante/AES67 interface with Bluetooth Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
  • Page 3 Wall panel 4x3 Dante/AES67 interface with Bluetooth SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...

  • Page 4: Table Of Contents

    Wall panel 4x3 Dante/AES67 interface with Bluetooth About Dante/AES67 Dante/AES67 audio networking utilize standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. It's the most economical, versatile, and easy-to-use audio networking solution, and is scalable from simple installations to large-capacity networks running thousands of audio channels.

  • Page 5: Product Introduction

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 1. Product Introduction The AU-BT413WP-DA adopts Dante AES67 audio transmission solution to distribute uncompressed audio via standard Ethernet networks with near-zero latency. It features stereo Bluetooth wireless audio input along with two RCA inputs and one 3.5mm line input and 3.5mm line output.

  • Page 6: Technical Specification

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 2. Technical Specification Input Stereo Bluetooth 5.0 audio receiver Inputs L+R stereo unbalanced audio on RCA Stereo unbalanced audio on 3.5mm TRS Recommended max 15m (depending on source Bluetooth Bluetooth Range device and installation environment) Output One channel Bluetooth 5.0 audio transmitter Outputs...
  • Page 7 Wall panel 4x3 Dante/AES67 interface with Bluetooth AU-BT413WP-DA-WH (white front) Model Names AU-BT413WP-DA-BL (black front) Power 802.3af PoE Operation -10℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃ Relative Humility 10%-90% Power Consumption 4.22W (Max) Dimension (WxHxD) 151mm x 80mm x 42mm...

  • Page 8: Panel Description

    5s to release connection active Bluetooth connection, the back-lit indication will flash again indicating paring mode. If no other Bluetooth device connects within 60 seconds AU-BT413WP-DA enters idle mode. POWER LED: Illuminates green when power is applied.

  • Page 9: Rear Panel

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 3.2 Rear Panel Dante: Dante® Ethernet interface connector. RESET: Factory reset unit. Press and hold for about 3s the “SYS” and “SYNC” LEDs will turn off, wait until the device has rebooted itself. Factory reset also resets the IP settings for the device back to default.

  • Page 10: System Connection

    All the power switches, plugs, sockets, and power cords should be insulated and  safe. All devices should be connected before system powers on.  4.2 System Diagram The following diagram illustrates an example of input and output connections that can be utilized with using the AU-BT413WP-DA.

  • Page 11: Operation Of Dante Controller

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 5. Operation of Dante Controller Dante Controller is a free software application that enables to route audio and configure devices on a Dante network. With automatic device discovery, one-click signal routing and user-editable device and channel labels, setting up a Dante network couldn’t be easier.
  • Page 12 Wall panel 4x3 Dante/AES67 interface with Bluetooth View device performance information, including latency statistics and packet errors.  View clock status information for each device, including frequency offset history and  clock event logs. Overview of Dante Controller: Audio inputs Device Name Routing configuration area.
  • Page 13 Wall panel 4x3 Dante/AES67 interface with Bluetooth Multicast Flow: Click any device to enter Device View page. Click on “Create a new multicast flow”-button as below. Select the input channels that should be added to this multicast flow.
  • Page 14 Wall panel 4x3 Dante/AES67 interface with Bluetooth To delete a multicast flow, in “Device View” select “Transmit” tab and select the flow that should be deleted. Then press “Delete” to delete the multicast flow and disable multicast transmission.
  • Page 15 Wall panel 4x3 Dante/AES67 interface with Bluetooth Device Config: Select the “Device Config” tab to rename the device,set sample rate an/or set device latency etc. Rename the device Choose the sample rate: 44.1 or 48KHz Adjust the device latency Note: For more details about Dante Controller, please download the user guideline at the Audinate website: www.audinate.com.

  • Page 16: Operation Of Web-Ui

    AU-BT413WP-DA can be controlled via web-based GUI. It allows users to interact and configurate AU-BT413WP-DA through graphical icons and visual indicators. AU-BT413WP-DA uses DHCP as default mode and relies on a DHCP server to be present on network. If AU-BT413WP-DA connects to a computer directly or isn’t assigned IP address by a DHCP server, the device then will assign itself an automatic IP address in the 169.254.xxx.xxx range.

  • Page 17: Dante Info

    Wall panel 4x3 Dante/AES67 interface with Bluetooth By opening a web browser and typing the WEB-UI IP address will display below log-in page. The default user name is “admin” and default password is also “admin”. These credentials can be changed in settings and users are recommended to do so. 6.1 Dante Info In this section, users can find information of the model name, Dante device name, Dante IP address and MAC address.

  • Page 18: Bluetooth Config

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 6.2 Bluetooth Config Input Name: Reports the Dante transmitter channel name for corresponding analog input and rename the input. Customizable by clicking in the field. The new channel name will also show accordingly in Dante Controller. Bluetooth Friendly Name: Customizable by clicking in the field.
  • Page 19 Wall panel 4x3 Dante/AES67 interface with Bluetooth Pairing List: Click to open the pairing list. Allow the user to identify devices which have paired to the AU-BT413WP-DA. Maximum of 10 devices is saved, if no priority selection has been made the oldest entry is discarded to make room for a new entry.

  • Page 20: Avrcp Configuration

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 6.3 AVRCP Configuration Controls the connected Bluetooth source device (AVRCP must be supported by the device). Supported AVRCP controls: Play, Pause, Stop, Next, Previous, Mute, Volume Up and Volume Down. If available Artist, Album and Track information is displayed. 6.4 Input Configuration Name: Reports the Dante channel name for corresponding analog input.

  • Page 21: Output Configuration

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 6.5 Output Configuration Name: Reports the Dante output channel name for corresponding analog output. Customizable by clicking in the field. The new channel name will also show accordingly in Dante Controller. Volume: Allows the user to adjust the output’s volume form -60db to 0db. Assigned RX Channel: Reports the received Dante channel name as set in Dante Controller.

  • Page 22: Setting

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 6.7 Setting In this section, the user can configure network settings, export device settings to keep record of installation settings or import settings to restore device to default. Firmware or Bluetooth update remotely by browsing and uploading file from your connected PC, or conduct a factory reset device by clicking “Reset”...

  • Page 23: Api Commands

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 7. API Commands The AU-BT413WP-DA can be controlled over TCP/IP. Below is an example using PuTTY software. First, type in the control IP address of the device in “Host Name” and port 4001, chose Telnet connection type, then click the open, and a new window will pop up.
  • Page 24 Wall panel 4x3 Dante/AES67 interface with Bluetooth Command Function Feedback Example Set the gain of input x. livol,4:2 livol,x:z x=3,4 means input 3 or input 4 livol,4:2 ok z=0,1,2,3…8 6dB step getlivol:4 Query gain of input. getlivol:x x=1,2 means input 1 or input 2 livol,3:3 Select which mode (rca/jack) is lisel,3:a...
  • Page 25 Wall panel 4x3 Dante/AES67 interface with Bluetooth parameterlockon parameterlockon Lock the parameter. parameterlockon ok parameterlockoff parameterlockoff Unlock the parameter. parameterlockoff ok identifyon Turn on the function to be identifyon identified. identifyon ok identifyoff Turn off the function to be identifyoff identified.
  • Page 26 Query the label of channel. input4 tx4! output1 rx1! output2 rx2! output3 rx3! set a new bluetooth friendly name, btname:AU-BT413WP-DA visible to other bluetooth devices btname:name when in pairing mode. No spaces btname:AU-BT413WP-DA ok in friendly name. getbtname getbtname get bluetooth friendly name. btname:AU-BT413WP-DA...
  • Page 27 Wall panel 4x3 Dante/AES67 interface with Bluetooth getbtconnectedevice getbtconnectedevice get connect BT device name. connecteddevice:iphone btbuttonlockon btbuttonlockon btbuttonlockoff Lock/Unlock the front panel button. btbuttonlockon ok btbuttonlockoff btbuttonlockoff ok getbtbuttonlock Query the lock status of the front getbtbuttonlock panel button. btbuttonlockon btplay btplay AVRCP Play command.
  • Page 28 Wall panel 4x3 Dante/AES67 interface with Bluetooth set bluetooth audio bridging. btbridging:0 z=0,1,2 0 means Both Call Bridging and Media Audio Bridging enabled btbridging:z 1 means Only Media Audio btbridging:0 ok Bridging enabled 2 means Only Call Bridging enabled Query the bridging of bluetooth. getbtbridging 0 means Both Call Bridging and Media Audio Bridging enabled...
  • Page 29 Wall panel 4x3 Dante/AES67 interface with Bluetooth getstatus au-bt413wp-da! au-bt413wp-da-c93512! mac:44-33-4c-c9-35-12! dante version:4.2.2! firmware 1.0.0! livol,3:3! livol,4:3! lovol,1:80! lovol,2:80! lovol,3:80! mute,1! unmute,2! Query system status and port unmute,3! getstatus status. lisel,3:1! lisel,4:2! input1 tx1! input2 tx2! input3 tx3! input4 tx4!

  • Page 30: Customer Service

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 8. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty We provide limited warranty for the product within five years counting from date of purchase (The purchase invoice shall prevail).

  • Page 31: Drawings And Dimensions

    Wall panel 4x3 Dante/AES67 interface with Bluetooth 9. Drawings and Dimensions AU-BT413WP-WH AU-BT413WP-BL...
