- Page 1 AU-202-DA Surface Mount 2x2 Dante/AES67 Interface All Rights Reserved Version: AU-202-DA_2021V1.0...
- Page 2 Surface mount 2x2 Dante/AES67 Interface Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 Surface mount 2x2 Dante/AES67 Interface SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ⚫...
-
Page 4: Table Of Contents
Surface mount 2x2 Dante/AES67 Interface About Dante/AES67 Dante/AES67 audio networking utilize standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. It's the most economical, versatile, and easy-to-use audio networking solution, and is scalable from simple installations to large-capacity networks running thousands of audio channels. Dante/AES67 can replace multiple analog or multicore cables with a single affordable Ethernet cable to transmit high quality multi-channel audio safely and reliably. -
Page 5: Product Introduction
Surface mount 2x2 Dante/AES67 Interface 1. Product Introduction The AU-202-DA is a Dante network audio interface allowing users to integrate up to 2 x 2 audio channels of Dante audio into networked AV systems, each input features a 48V phantom power option. The product also supports PoE (IEEE802.3af) power capability... -
Page 6: Specification
Surface Mount 2x2 Dante/AES67 Interface 2. Specification Input Input (2) MIC/LINE IN Input Connector (2) 3-pin Green Terminal Blocks Phantom Power 48V, software selectable for each input Output Output (2) LINE OUT Output (2) 3-pin Green Terminal Blocks Connector Output Type Balanced line level with automatic muting on loss of Dante signal Audio Performance Input: 0 ~ +48dB, 6dB per step... -
Page 7: Panel Description

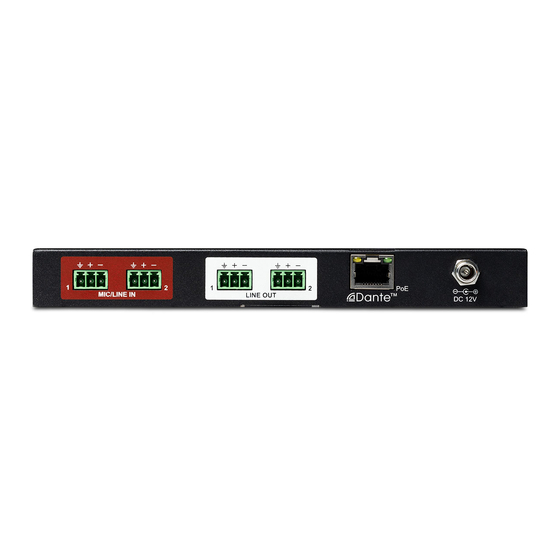

Surface Mount 2x2 Dante/AES67 Interface 3. Panel Description 3.1 Front Panel POWER LED: Illuminates green when power is applied. SYS LED: Illuminates yellow when system starts, and green when system is ready. SYNC LED: Illuminates green when the clocks are synchronized between master and slave devices, and yellow when the clocks are out of sync. -
Page 8: System Connection
Surface Mount 2x2 Dante/AES67 Interface 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and ⚫ humidity. All the power switches, plugs, sockets, and power cords should be insulated and ⚫... -
Page 9: Operation Of Dante Controller
Surface Mount 2x2 Dante/AES67 Interface 5. Operation of Dante Controller Dante Controller is a free software application that enables to route audio and configure devices on a Dante network. With automatic device discovery, one-click signal routing and user-editable device and channel labels, setting up a Dante network couldn’t be easier. - Page 10 The square turns green when the Audio outputs AU-202-DA is linked successfully by network. Wireless connection and debug mode can be selected. The default setting only supports 2 transmit and 2 receive flows, if more than 2 devices are needed, please click any device to enter Device View page.
- Page 11 Surface Mount 2x2 Dante/AES67 Interface Click Transmit and delete the transmit flows for disabling multicast mode as the below:...
- Page 12 Surface Mount 2x2 Dante/AES67 Interface Click the device name, than turn into “Devic Config” page. Rename the device Choose the sample rate: 44.1 or 48KHz Adjust the device latency Note: For more details about Dante Controller, please download the user guideline at the Audinate website: www.audinate.com.
-
Page 13: Operation Of Web-Ui
Surface Mount 2x2 Dante/AES67 Interface 6. Operation of Web-UI AU-202-DA controlled via web-based GUI. It allows users to interact with AU-202-DA through graphical icons and visual indicators. 1) When Dante device connects with the computer directly or isn’t assigned IP address by router, please type 169.254.1.178 in your browser to access Web-UI. -
Page 14: Dante Info
Surface Mount 2x2 Dante/AES67 Interface 6.1 Dante Info In this page, it shows the model name, device name, IP address and MAC address. Dante Lock: Reports the status if Dante device is locked in Dante Controller. Parameter Lock: If the user clicks it, the parameter of the device can’t be adjusted like input’s gain or output’s volume. -
Page 15: Output Configuration
Surface Mount 2x2 Dante/AES67 Interface 6.3 Output Configuration Name: Reports the Dante receiver channel name for corresponding analog output and rename the output. Volume: Allows the user to adjust the output’s volume form -60db to 0db. Assigned RX Channel: Reports the corresponding transmitter channel. 6.4 Credential Configuration In this page, the user can change the user name and password. -
Page 16: Setting
Surface Mount 2x2 Dante/AES67 Interface 6.5 Setting In this page, the user can configure network settings including MAC address, IP address, subnet mask, and Gateway. It can also support firmware upgrade, importing or exporting the setting. -
Page 17: Api Commands
Surface Mount 2x2 Dante/AES67 Interface 7. API Commands The Dante device can be controlled by Telnet. Take Putty here as an example. Firstly, type in the IP address of GUI in “Host Name” and the port is 4001, chose Telnet connection type, then click the open, and a new window will pop up. - Page 18 Surface Mount 2x2 Dante/AES67 Interface phantom,1:on phantom,port:on Power on/off of phantom power. /off ok/error getPhantom:1 getphantom:port Query status of phantom power. phantom,1:on Set volume of output. lovol,2:80 lovol,port:x Port=1,2 means output 1 or output 2 ok/error x=0,1,2,3…100 getlovol:2 Query the volume of output. getlovol:port Port=1,2 means output 1 or output 2 lovol,2:80...
- Page 19 24dB ligain,2:4 24dB phantom,1:on phantom,2:on getsettings Query the settings of audio. lovol,1:40 lovol,2:40 mute,1:off mute,2:off Model:AU-202-DA Name:AU-202-DA- C93512 MAC:44-33-4C-C9- Query the status of the unit. getdeviceinfo 35-12 Model, name, version, Mac address. Dante Version:4.2.2 GUI Version:1.0.0 Firmware Version:1.0.0 getdantelock Query the lock status of the unit.
- Page 20 Surface Mount 2x2 Dante/AES67 Interface ligain,1:0 0dB ligain,2:0 0dB phantom,1:off phantom,2:off lovol,1:50 lovol,2:50 mute,1:off getstatus Query all the status. mute,2:off Input1 TX1 Input2 TX2 Output1 RX1 Output2 RX2 DanteLock:unlock parameterLock:off aes67on Enable AES67 ok/error aes67off Disable AES67 ok/error reboot Reboot the device ok/error...
-
Page 21: Customer Service
Surface Mount 2x2 Dante/AES67 Interface 8. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty We provide limited warranty for the product within five years counting from date of purchase (The purchase invoice shall prevail).
