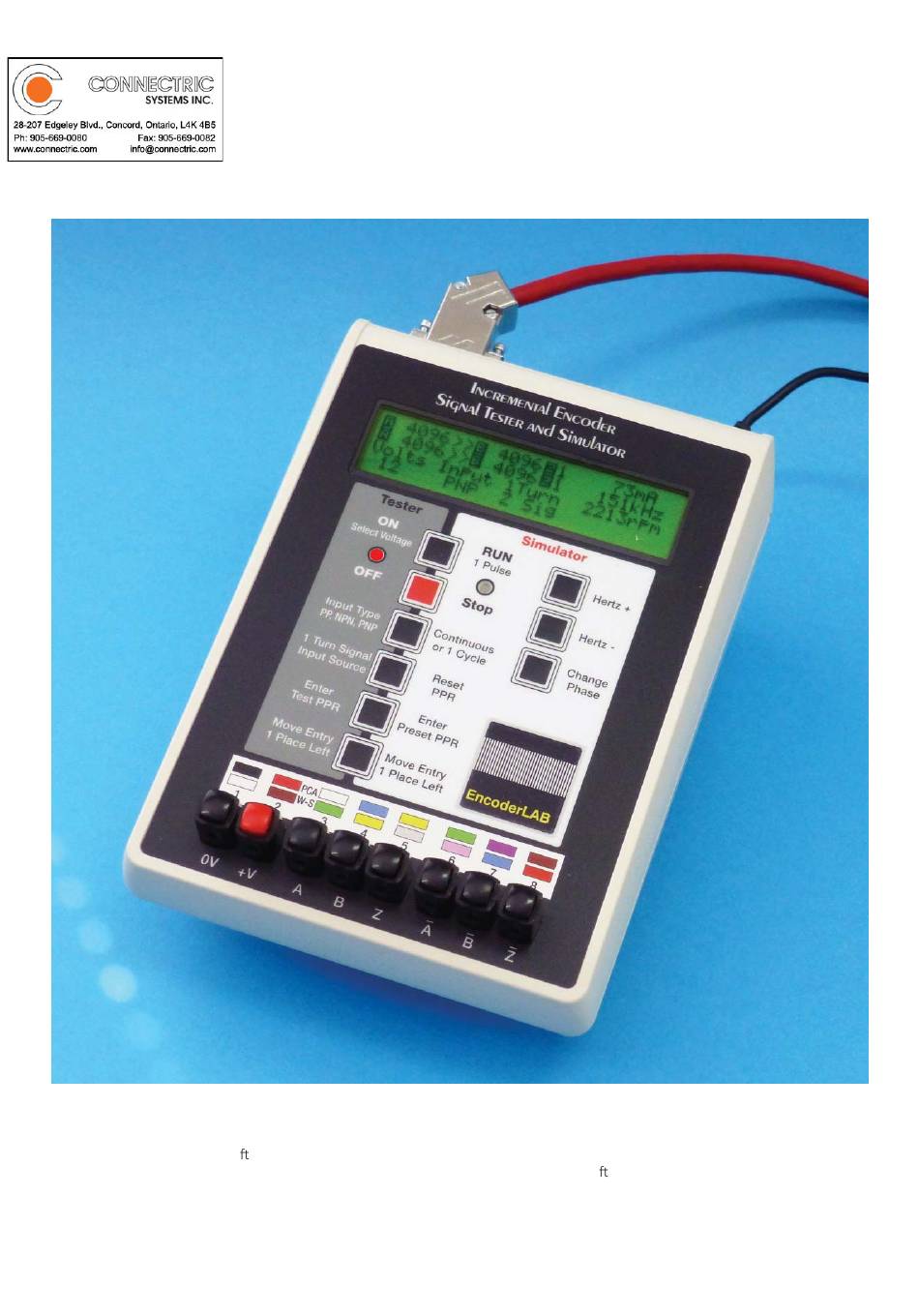

The EncoderLAB is designed to test and simulate all
aspects of an incremental sha encoder, or any other
instrument which produces square wave output signals,
such as linear encoders and flow meters. This instrument
combines into the one housing and updates two separate
encoder instruments
Page 1
EncoderLAB
For Testing and Simulating Incremental Encoder signals
Part No. ENCODER-LAB02
Users Manual
Introduction
The large four line LCD display allows the user to see in
one view all the test results on just one screen. In addi+on
there is Windows so ware available which will repeat and
analyse the informa+on shown on the LCD display, and
produce an oscilloscope view of the input wave form, a
test report for each encoder and adds all the informa+on
into a produc+on log file for future analysis.
Revision 3 201309
