CMT ORANGE TOOLS TW-200 Quick Start Manual

TECHNICAL DETAILS
Range: 20~200 Nm (10-150 lbf-ft)
Resolution: 1 Nm
Tolerance: ± 4%
Length: 500mm (19.7")
Weight: 1,15Kg (40.6oz)
Automatic quick-release, audible and
palpable click, when selected torque is
reached.
Right-handed (CW)

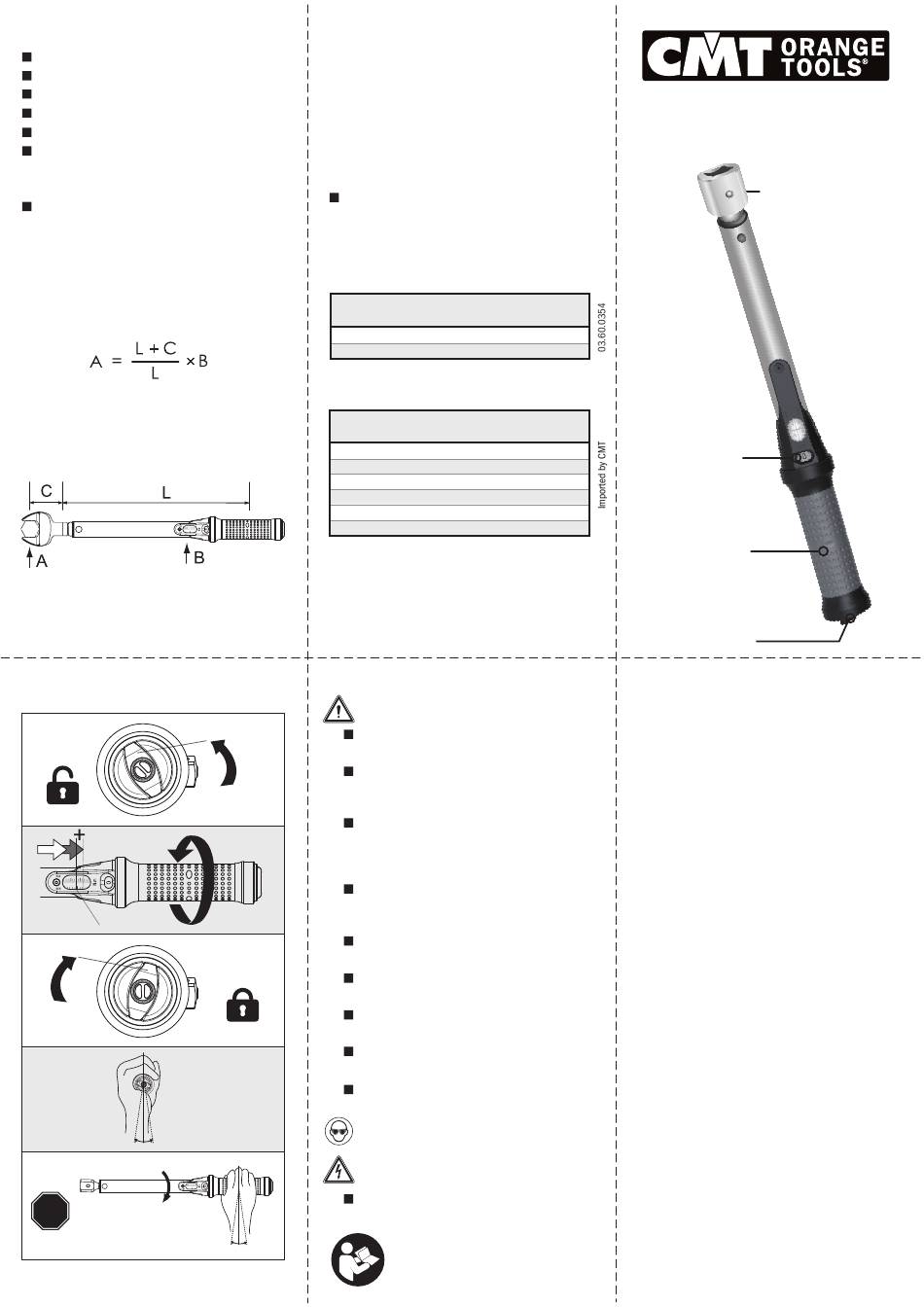

EXTENSIONS & ADAPTERS
When using an extension or adapter
(increasing the effective length of the torque
wrench) the output torque value will change.
To calculate the new torque output of the
wrench use the following formula:
A = Torque exterted at end of adapter
L = Distance between square drive and hand
position
B = Wrench scale reading
C = Length of adapter or extension
A number of variables will affect the accuracy
of the above calculation: length of the adapter
or extension, length of the wrench and
variations in hand position.
OPERATION
TURN TO LEFT
(UNLOCK)
TORQUE SET UP
RED LINE
LOCK
LESS THAN 15°
STOP
CLICK
LESS THAN 15°
CALIBRATION
Each torque wrench is calibrated according
to DIN ISO 6789 & ASME B107.300-2010
standards and is certfied to meet the
accuracy specifications as outlined in DIN
ISO 6789 and ASME B107.300-2010
standards.
TIPS
During calibration, always look straight
at and level with the graduated torque
scale to avoid calibration errors.
CONVERSION CHART
CONVERT
FROM
Lbf-ft
Nm
TORQUE SUGGESTED*
TYPE OF
CHUCK/COLLET
ER16
ER20
ER25
ER32
ER40
EOC25
* Suggested tightening torque for CMT Chuck/Collet
C.M.T. UTENSILI S.p.A.
Via della Meccanica
61122 Pesaro, Fraz. Chiusa di Ginestreto
Tel. +39 0721 48571 - Fax +39 0721 481021
www.cmtoragetools.com
SAFETY INSTRUCTIONS
WARNING
TORQUE WRENCH MAY ONLY BE USED FOR THE
CONTROLLED TIGHTENING OF SCREWS AND NUTS.
THE TORQUE WRENCH IS A MEASURING/TESTING
INSTRUMENT AND MUST NEVER BE USED TO LOOSEN
UNLOCK
SCREW CONNECTIONS.
FUNCTION DIRECTION: THE TORQUE WRENCH CAN
ONLY BE OPERATED CLOCKWISE TO CHECK THE
TORQUE (ACCORDING TO THE MARKING ON THE
TORQUE WRENCH).
USE OF DAMAGED TORQUE WRENCH, SOCKETS,
EXTENSIONS AND ACCESSORIES MAY RESULT IN
ADJUST
INJURY.
THE TORQUE
DO NOT USE TORQUE WRENCH AS A HAMMER OR AS
A LEVER BAR.
TURN TO RIGHT
(LOCK) NEVER USE TORQUE WRENCH TO BREAK LOOSE
FASTENERS.
TORQUE WRENCHES THAT ARE NOT PROPERLY
CALIBRATED MAY CAUSE DAMAGE TO PARTS OR TOOLS.
OVER TIGHTENING OF FASTENERS MAY RESULT IN
BREAKAGE.
DO NOT USE EXTENSIONS ON HANDLE AS DAMAGE TO
TORQUE WRENCH WILL RESULT.
ALWAYS USE EYE PROTECTION
WHILE USING HAND TOOLS.
INJURY MAY RESULT FROM
ELECTRICAL SHOCK
HANDLE IS NOT INSULATED, DO NOT USE ON LIVE
ELECTRICAL OR HIGH VOLTAGE CIRCUITS.
TO MULTIPLY BY
Nm 1.356
Lbf-ft 0.73756
Nm Lbf-ft
57 Nm 42 Lbf-ft
80 Nm 59 Lbf-ft
104 Nm 77 Lbf-ft
135 Nm 100 Lbf-ft
176 Nm 130 Lbf-ft
122 Nm 90 Lbf-ft
TO DOWNLOAD THIS USER MANUAL
IN A DIFFERENT LANGUAGE,
VISIT WWW.CMTORANGETOOLS.COM

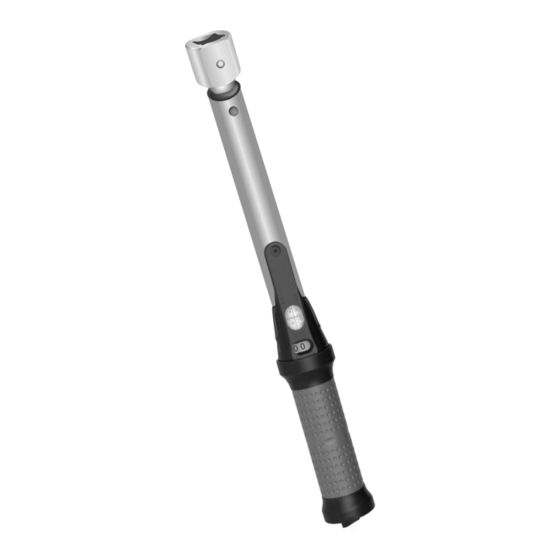

TW-200
TORQUE WRENCH
INTERCHANGEABLE HEAD
(14-18mm)
TORQUE SCALE
(Nm/Lbt-ft)
HANDLE
SCALE ADJUSTER
CARE AND MAINTENANCE
1. The torque wrench is a precision instrument
and must be stored with care.
2. The torque wrench must be stored in its
protective case and in a clean and dry
environment. Keep away from humidity and
dirt.
3. The torque wrench is lubricated for its entire
lifespan and should not be oiled. The only
exception is the ratchet head which can be
lubricated as needed for smooth operation.
4. The torque wrench is a precision measuring
instrument. Calibration must be performed
by the owner regularly to ensure accuracy.
Suggested timeframe for calibration is at
least every 12 months or even shorter
depending on use and individual situations.
Please seek assistance from qualified
professionals.
5. The calibration of the torque wrench may
only be carried out by an authorized
laboratory or workshop.
6. Never disassemble the torque wrench by
yourself. If the torque wrench requires
disassembly or repair,
assistance from qualified professionals.
Incorrect action taken to disassemble the
torque wrench may result in serious damage
or injury.
7. Set the torque value to the lowest scale
value after use.
please seek
