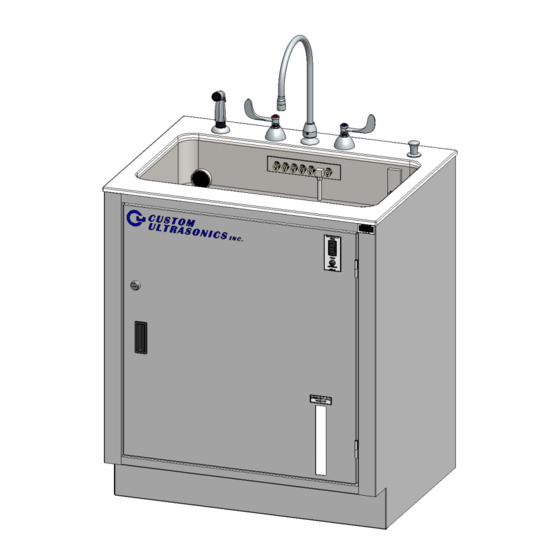

- Page 1 Custom Ultrasonics Scope-Assist Flushing Sink Operator's and Maintenance Manual Custom Ultrasonics, Inc. 144 Railroad Drive Ivyland, PA 18974 215-364-1477 customultrasonics.com MAN-100 Part Number 31062 Revision 03082022...
-
Page 2: Table Of Contents
Scope-Assist Flushing Sink Operator’s and Maintenance Manual Table of Contents GENERAL INFORMATION ....................3 ..............................3 BBREVIATIONS ........................3 ARNING AUTION TATEMENTS Warnings ..............................3 Cautions ..............................4 ....................... 4 NDICATIONS FOR NTENDED ............................ 4 RODUCT ESCRIPTION Configurations ............................5 Operating Principle ..........................5 Physical Characteristics .......................... - Page 3 Scope-Assist Flushing Sink Operator’s and Maintenance Manual Detergent Pump Poppet Valves ......................18 Overflow Drain ............................19 Detergent Function ..........................19 Purge Function ............................19 Rinse Function ............................19 Water Pressure Regulator ........................19 ......................20 NNUAL AINTENANCE AND NSPECTION Replace Female Quick-Disconnect Fittings ..................
-
Page 4: General Information
The Scope-Assist Flushing Sink must be turned off and unplugged before performing any service or maintenance. Failure to do so may result in electric shock. The Scope-Assist Flushing Sink is not intended to nor does it solely provide cleaning or disinfection for any •... -
Page 5: Cautions
Visually confirm liquid flow through the transparent adapter tubing during flushing of endoscope’s internal • channels. No flow is an indication that there may be a blockage in the Scope-Assist Flushing Sink or within the endoscope channel. If a blockage in the Scope-Assist Flushing Sink occurs, discontinue use and contact Custom Ultrasonics for diagnostics and/or repair. -
Page 6: Configurations
Configurations The Scope-Assist Flushing Sink is available in two models: the Model S6 is housed in a cabinet and is designed to be hard plumbed and fixed in place; the Model S8 has no cabinet and is designed to be installed directly into a fixed base cabinet with countertop or casework provided by the end user facility. -
Page 7: Assembly
The Scope-Assist Flushing Sink is assembled in the United States in compliance with the Quality System Regulations per 21 CFR 820 requirements and it is manufactured by Custom Ultrasonics, Inc. at 144 Railroad Drive, Ivyland, PA, 18974. Custom Ultrasonics, Inc. is an FDA registered and ISO 13485 certified medical device manufacturing company. -
Page 8: Model S8 Dimensions
Scope-Assist Flushing Sink Operator’s and Maintenance Manual Model S8 Dimensions Fig. 1.5.2-1 SAFS Model S8 Dimensions Fig. 1.5.2-2 SAFS Model S8 Countertop Cut-Out Dimensions MAN-100 Revision 03082022 Page 7 of 22... -
Page 9: Component Diagrams
Scope-Assist Flushing Sink Operator’s and Maintenance Manual Component Diagrams Fig. 1.5.3-1 SAFS Components – Front (note: the SAFS Model S6 is shown) Fig. 1.5.3-2 SAFS Components – Back (note: the SAFS Model S6 is shown) MAN-100 Revision 03082022 Page 8 of 22... - Page 10 Scope-Assist Flushing Sink Operator’s and Maintenance Manual Fig. 1.5.3-3 SAFS Components – Inside (note: the SAFS Model S6 is shown) Fig. 1.5.3-4 SAFS Components – Component Enclosure MAN-100 Revision 03082022 Page 9 of 22...
-
Page 11: Installation
Operator’s and Maintenance Manual Installation If you would like to have a Custom Ultrasonics field technician or authorized service technician conduct the final post installation inspection and/or on-site training or post installation inspection only for the Scope-Assist Flushing Sink, contact Custom Ultrasonics at customultrasonics.com... -
Page 12: Water Supply Installation
Scope-Assist Flushing Sink Operator’s and Maintenance Manual • The Faucet requires 1 hot and 1 cold supply line terminating with ⅜” compression shut-off valves. The Cold Water Rinse Line requires 1 cold supply with a reduced pressure zone backflow preventer •... -
Page 13: Post-Installation Inspection
Scope-Assist Flushing Sink Operator’s and Maintenance Manual Post-Installation Inspection Perform the following steps following installation to ensure the SAFS is fully functional. Water Inlet System Turn the hot water faucet handle and confirm hot water exits the faucet gooseneck. Turn the cold water faucet handle and confirm cold water exits the faucet gooseneck. -
Page 14: Operating Instructions
Perform all brushing and wiping steps in accordance with the endoscope manufacturer’s instructions. Warning: The Scope-Assist Flushing Sink is not designed to replace the manual flushing of the elevator recess of side-viewing endoscopes with a syringe as specified by the endoscope manufacturer’s instructions. -
Page 15: Flushing Channels With Detergent Solution
The specialty channel flushing port is only used when flushing endoscope models that contain specialty channels. Warning: The Scope-Assist Flushing Sink is intended to flush only one endoscope at a time. Do not place more than one endoscope in the sink basin simultaneously. Warning: Endoscopes that have an elevator mechanism require additional manual cleaning per endoscope manufacturer’s instructions. -
Page 16: Maintenance
Inspect and replace all in-line disc filters for all applicable adapters. These must be replaced as required or every (6) weeks (P/N 16030). Only use filters sold by Custom Ultrasonics Check the detergent bottle fill level before each use and ensure one inch or more of the detergent is present in the bottle. -
Page 17: Quarterly Maintenance And Inspection
Scope-Assist Flushing Sink Operator’s and Maintenance Manual When all adapters have sat in the decontaminant solution for the required contact time, reconnect one set of adapters to the appropriate channel flushing ports. Activate the purge function and open the drain. - Page 18 Scope-Assist Flushing Sink Operator’s and Maintenance Manual Fig. 5.2.1-1 Built Solenoid Fig. 5.2.1-2 Retainer Ring Removal Fig. 5.2.1-3 Unit Solenoid Removal Fig. 5.2.1-4 Plunger/Spring Assembly Removal Fig. 5.2.1-5 Inspect the Green Plunger Fig. 5.2.1-6 Inspect the Brown O-Ring MAN-100 Revision 03082022...
-
Page 19: Detergent Pump Poppet Valves
Scope-Assist Flushing Sink Operator’s and Maintenance Manual Detergent Pump Poppet Valves Ensure that power has been removed from the sink. If necessary, remove the component enclosure cover. Loosen and disconnect the Hose Barbs from the inlet and outlet of the detergent pump. -
Page 20: Overflow Drain
Scope-Assist Flushing Sink Operator’s and Maintenance Manual Overflow Drain Push down on the drain handle, turn both faucet handles on, and fill the sink basin to the marked fill line. Turn both handles off, wait for a minute, and confirm that the water level hasn’t decreased. -
Page 21: Annual Maintenance And Inspection
Part Orders To order replacement parts or supplies and for current pricing, visit customultrasonics.com. Only Custom Ultrasonics OEM components have been validated in the Scope-Assist Flushing Sink; therefore, use only OEM components to ensure proper performance and compliance with tested standards. -
Page 22: Contact Information
No. 61010-1 Note: The Scope-Assist Flushing Sink has been tested to UL 61010-1 and CAN/CSA-C22.2# 61010-1 for electrical safety by a Nationally Recognized Testing Lab (NRTL), Intertek Testing Services, and was found to comply. In recognition of compliance to safety standards, the Scope-Assist Flushing Sink has received authorization to mark as ETL listed. - Page 23 Detergent is validated for use in the: ® • System 83 Plus™ Washer/Disinfector − Models: System 83 Plus 2 and System 83 Plus 9 • Scope-Assist Flushing Sink (SAFS) − Models: S6 and S8 • Pre-Processing Sinks (PPS) − Models: 83-S6 and 83-S8...
-
Page 24: Disc Filter Replacement Log
Note: In the event that flow is restricted in an adapter featuring a disc filter (P/N 16030), the operator is instructed to replace the disc filter, irrespective of its in-use time, and confirm restored flow through the adapter. If no flow is observed through the adapter, stop using the sink and call Custom Ultrasonics for service. MAN-100...
