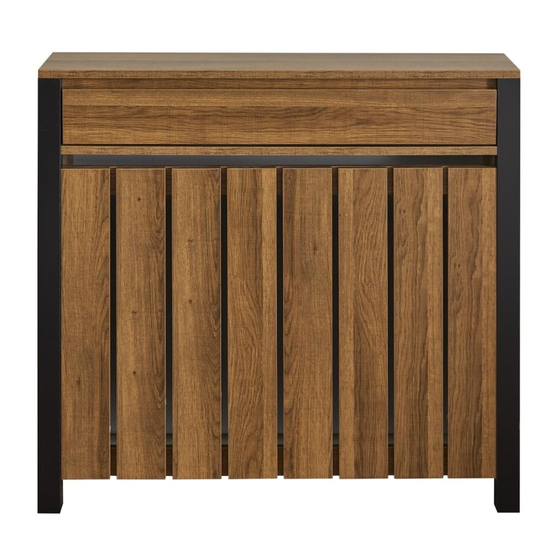

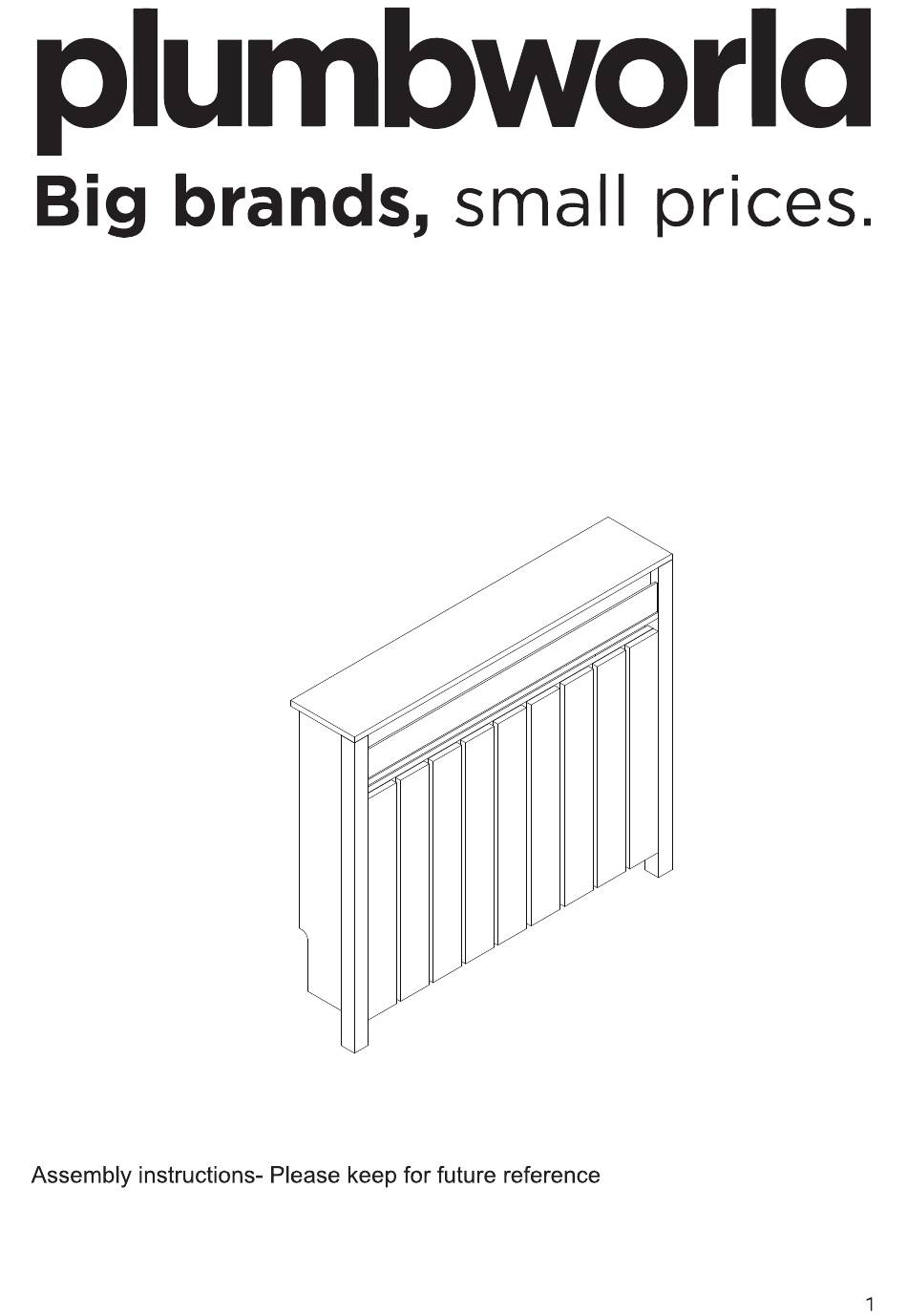

- Page 1 Mini Radiator Cover with Drawer Wood Effect & Black PWLPRADC10 Issue 1 - 09/11/22...
- Page 2 WARNING! IN ORDER TO PREVENT OVERTURNING THIS PRODUCT MUST BE USED WITH THE WALL ATTACHMENT DEVICE PROVIDED Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent this item of furniture tipping over: • Use the wall attachment device provided. •...
- Page 3 Fittings NOTE: The quantities below are the correct amount to complete the assembly. In some cases Cam Stud x 10 Cam Socket x 20 8Φ 30mm Dowel x 20 3.5Φ 14mm Screw x 8 5Φ 40mm Screw x 2 Cam Stud x 10 Hardware Drawer Stopper x 2 Keyhole Bracket x 2...
-
Page 4: Tools Required
Tools required Spirit Level Crosshead screwdriver (small & medium) Eye protection Power drill (When using a hammer or mallet) Ruler/tape measure Mallet Pencil... - Page 5 Panels (910 x 40 x 39mm) x 1 (910 x 40 x 39mm) x 1 (735 x 148 x 15mm) x 1 (735 x 148 x 15mm) x 1 (800x 40 x 15mm) x 1 (800 x 570 x 30mm) x 1 (800 x 186 x 15mm) x 1 (884 x 189 x 15mm) x 1 (150x 80 x 18mm) x 1...
- Page 6 Cam Stud x6 Protective Feet x2 For how to use camlocks watch our video: www.youtube.com/ watch?v=tBMdYxtpu88 Cam Socket x 6 8Φ 30mm Dowel x 4...
- Page 7 Cam Stud x4 Cam Stud x4 Edge Banding Here 8Φ 30mm Dowel x 1 3.5Φ 14mm Screw x 2 Drawer Stopper x 2...
- Page 8 Cam Socket x 4 8Φ 30mm Dowel x 2 Cam Socket x 4 8Φ 30mm Dowel x 3...
- Page 9 Cam Socket x4 3.5Φ 14mm Screw x 1 Bracket x 1 Cam Socket x 4 8Φ 30mm Dowel x 6...
- Page 10 3.5Φ 14mm Screw x 5 Keyhole Bracket x 2...
- Page 11 8Φ 30mm Dowel x 2 5Φ 40mm Screw x 2 8Φ 30mm Dowel x 2 Cam Stud x2 Cam Socket x 2...
- Page 12 Wall Fixing x 2...
- Page 13 Using camlocks Step 1 Step 3 Connect the male Push the male camlock camlock as directed in into every hole. the assembly instructions using a screwdriver. Step 2 Step 4 Insert the female Turn the female camlock camlock as shown in the with a screwdriver.
