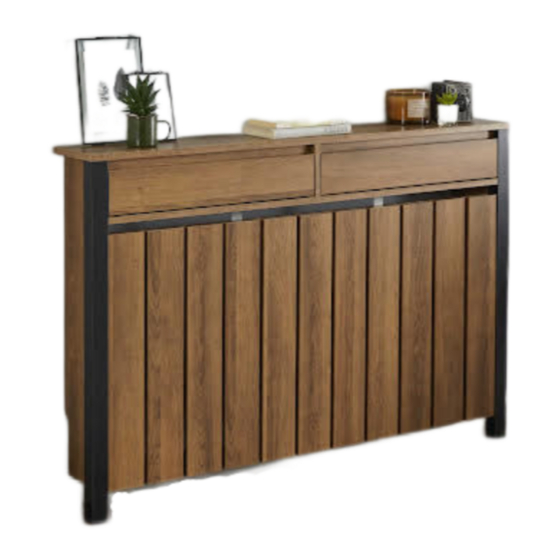

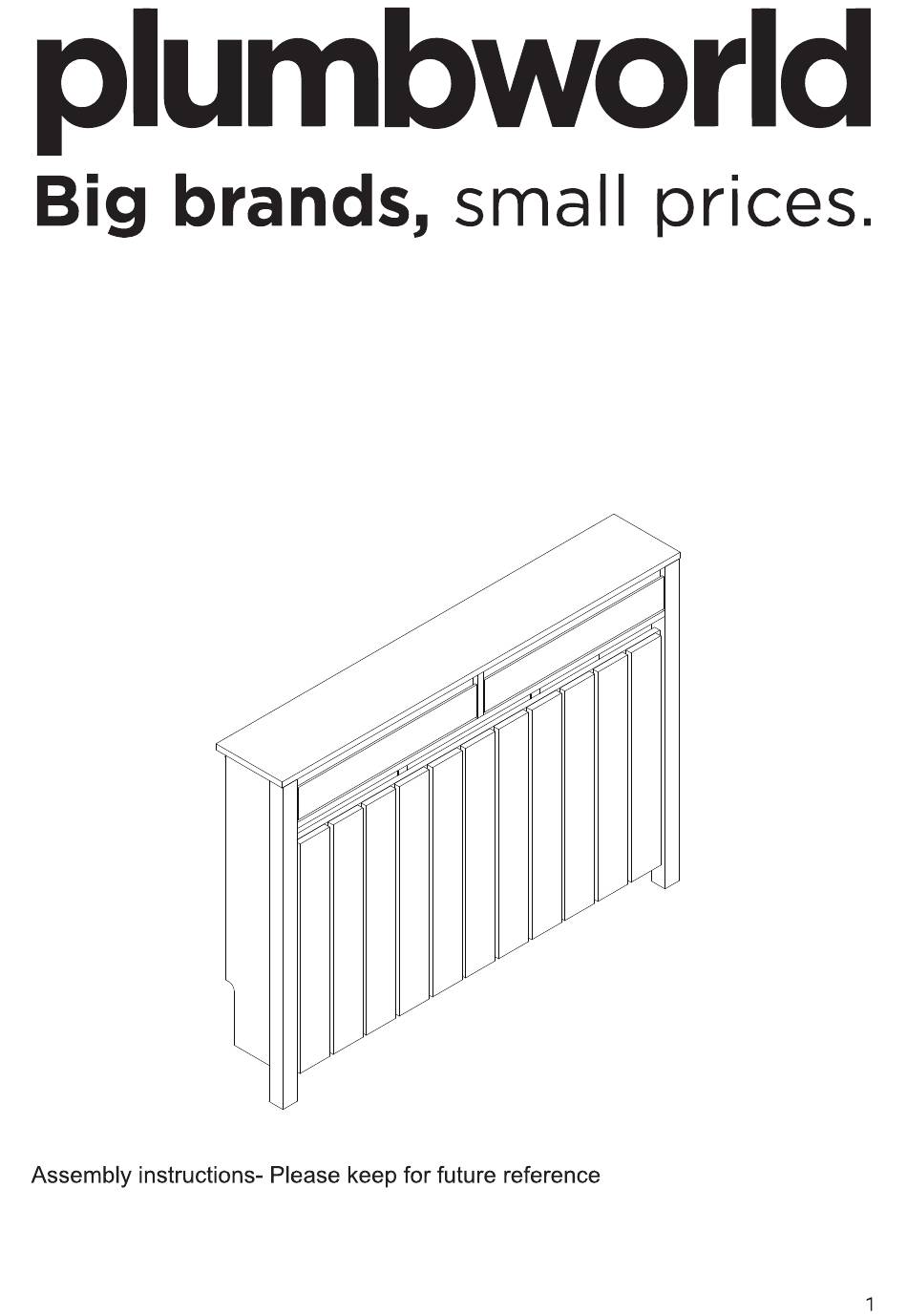

- Page 1 Medium Radiator Cover with 2 Drawers Wood Effect & Black PWLPRADC11 Issue 1 - 15/11/22...
- Page 2 WARNING! IN ORDER TO PREVENT OVERTURNING THIS PRODUCT MUST BE USED WITH THE WALL ATTACHMENT DEVICE PROVIDED Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent this item of furniture tipping over: • Use the wall attachment device provided. •...
- Page 3 Fittings NOTE: The quantities below are the correct amount to complete the assembly. In some cases Cam Stud x 16 Cam Socket x 26 8Φ 30mm Dowel x 34 3.5Φ 14mm Screw x 6 5Φ 40mm Screw x 8 8Φ 50mm Dowel x 1 4Φ...
-
Page 4: Tools Required
Tools required Spirit Level Crosshead screwdriver (small & medium) Eye protection Power drill (When using a hammer or mallet) Ruler/tape measure Mallet Pencil... - Page 5 Panels (910 x 40 x 39mm) x 1 (910 x 40 x 39mm) x 1 (735 x 148 x 15mm) x 1 (735 x 148 x 15mm) x 1 (1105x 186 x 15mm) x 1 (169 x 125 x 15mm) x 1 (545 x 40 x 15mm) x 2 (1105 x 125 x 15mm) x 1 (1105x 570 x 30mm) x 1...
- Page 6 8Φ 30mm Dowel x 4 Cam Stud x6 For how to use camlocks watch our video: www.youtube.com/ watch?v=tBMdYxtpu88 Cam Socket x 6...
- Page 7 Cam Socket x4 Cam Stud x4 3.5Φ 14mm Screw x 2 Drawer Stopper x 2 8Φ 50mm Dowel x 1 8Φ 30mm Dowel x 2 × 2 Edge Banding Here Edge Banding Here Edge Banding Here...
- Page 8 5Φ 40mm Screw x 2 5Φ 40mm Screw x 2...
- Page 9 8Φ 30mm Dowel x 5 Cam Socket x 4...
- Page 10 8Φ 30mm Dowel x 5 Cam Socket x 4...
- Page 11 Bracket x 2 4Φ 14mm Dowel x 4 Protective Feet x 2 8Φ 30mm Dowel x 10...
- Page 12 Cam Stud x8 Cam Socket x 8...
- Page 13 8Φ 30mm Dowel x 8 5Φ 40mm Screw x 4 × 2 Cam Stud x4 Cam Socket x 4 × 2...
- Page 14 Keyhole Bracket x 2 3.5Φ 14mm Screw x 4...
- Page 15 Wall Fixing x 2...
- Page 16 Using camlocks Step 1 Step 3 Connect the male Push the male camlock camlock as directed in into every hole. the assembly instructions using a screwdriver. Step 2 Step 4 Insert the female Turn the female camlock camlock as shown in the with a screwdriver.
