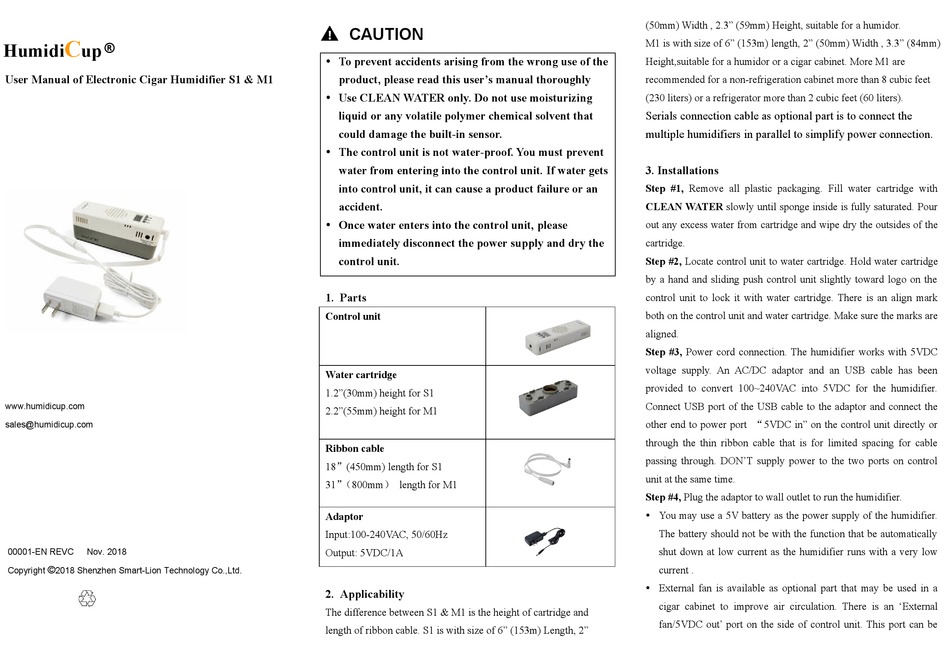

HumidiCup S1 User Manual

C
®
Humidi up

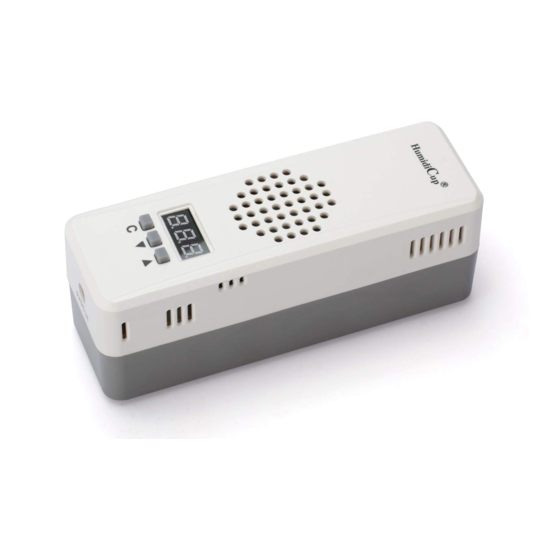

User Manual of Electronic Cigar Humidifier S1 & M1
www.humidicup.com
sales@humidicup.com
00001-EN REVC Nov. 2018
©
Copyright 2018 Shenzhen Smart-Lion Technology Co.,Ltd.
CAUTION
 To prevent accidents arising from the wrong use of the
product, please read this user's manual thoroughly
 Use CLEAN WATER only. Do not use moisturizing
liquid or any volatile polymer chemical solvent that
could damage the built-in sensor.
 The control unit is not water-proof. You must prevent
water from entering into the control unit. If water gets
into control unit, it can cause a product failure or an
accident.
 Once water enters into the control unit, please
immediately disconnect the power supply and dry the
control unit.
1. Parts
Control unit
Water cartridge
1.2"(30mm) height for S1
2.2"(55mm) height for M1
Ribbon cable
18"(450mm) length for S1
31" （800mm） length for M1
Adaptor
Input:100-240VAC, 50/60Hz
Output: 5VDC/1A
2. Applicability
The difference between S1 & M1 is the height of cartridge and
length of ribbon cable. S1 is with size of 6" (153m) Length, 2"
(50mm) Width , 2.3" (59mm) Height, suitable for a humidor.
M1 is with size of 6" (153m) length, 2" (50mm) Width , 3.3" (84mm)
Height,suitable for a humidor or a cigar cabinet. More M1 are
recommended for a non-refrigeration cabinet more than 8 cubic feet
(230 liters) or a refrigerator more than 2 cubic feet (60 liters).
Serials connection cable as optional part is to connect the
multiple humidifiers in parallel to simplify power connection.
3. Installations
Step #1, Remove all plastic packaging. Fill water cartridge with
CLEAN WATER slowly until sponge inside is fully saturated. Pour
out any excess water from cartridge and wipe dry the outsides of the
cartridge.
Step #2, Locate control unit to water cartridge. Hold water cartridge
by a hand and sliding push control unit slightly toward logo on the
control unit to lock it with water cartridge. There is an align mark
both on the control unit and water cartridge. Make sure the marks are
aligned.
Step #3, Power cord connection. The humidifier works with 5VDC
voltage supply. An AC/DC adaptor and an USB cable has been
provided to convert 100~240VAC into 5VDC for the humidifier.
Connect USB port of the USB cable to the adaptor and connect the
other end to power port "5VDC in" on the control unit directly or
through the thin ribbon cable that is for limited spacing for cable
passing through. DON'T supply power to the two ports on control
unit at the same time.
Step #4, Plug the adaptor to wall outlet to run the humidifier.
 You may use a 5V battery as the power supply of the humidifier.
The battery should not be with the function that be automatically
shut down at low current as the humidifier runs with a very low
current .
 External fan is available as optional part that may be used in a
cigar cabinet to improve air circulation. There is an 'External
fan/5VDC out' port on the side of control unit. This port can be
