Oklahoma Sound ARISTOCRAT 6010 Assembly Manual

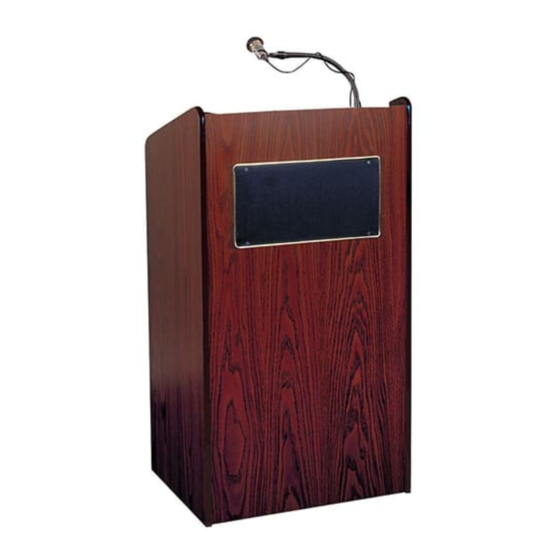

Aristocrat sound floor lectern
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

ARISTOCRAT
Sound Floor Lectern
ASSEMBLY MANUAL
MODEL #6010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARISTOCRAT 6010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oklahoma Sound ARISTOCRAT 6010

Summary of Contents for Oklahoma Sound ARISTOCRAT 6010

  • Page 1 ARISTOCRAT Sound Floor Lectern ASSEMBLY MANUAL MODEL #6010...

  • Page 2: Technical Specifications

    Our Lecterns undergo the most rigid and exacting tests for superior quality and performance before leaving the factory. Oklahoma Sound Corporation warrants this product to be free from defective material and workman- ship on the electronic product speakers and microphones for two years from the date of resale by an authorized Oklahoma Sound distributor.
  • Page 3 ASSEMBLY PARTS Left Side Panel Right Side Panel (Reading Surface) (1) Gooseneck (1) Tie-Clip (1) Hand-held Condenser Mic Cam-Lock Assembly Aristocrat Sound Floor Lectern • Model 6010 Front Panel Shelf Bottom (2) Locking Casters (2) Non Locking Casters (3) Corner Braces Tool Required •...
  • Page 4 3) Insert the cams in the larger holes as shown on diagram. MAKE SURE THE ARROW ON THE CAM IS POINTING TO CLOSEST EDGE & ALIGNED WITH THE HOLE ON THE EDGE. 5) On the BOTTOM panel, screw in the four casters. The locking casters should screwed into the bottom closest to the T-Molded contoured edge.
  • Page 5 2) Next will be the Top and Shelf. Make sure the cams on the “TOP” & “SHELF" face the bottom of the lectern. The two highest bolts align with the two holes on the edge of the “TOP”...
  • Page 6 5) Now apply the left side panel to the semi assembled unit. Be sure to align the cam bolts to the holes on both the front panel & the shelf.. Be sure that the “BOTTOM” is securely in groove. Tighten cams. (Diagram C) 6) Screw the Corner braces, on the bottom of lectern, into the “SIDE PANEL”...
  • Page 7 Power Supply 12V DC Operation Connect a 12 volt rechargeable battery 5 Amp (not included) to the battery input connector located on the panel of the amplifier (using 6' battery cable). Be sure that the positive pole of battery is connected to the white wire terminal (+) and the negative pole to the Brass wire (–).
  • Page 8 Assembly required. Dimensions: 25" W x 15" H x 20"D Walnut, Lt. Oak, Med. Oak, Mahogany. For these products please contact your dealer or Oklahoma Sound Corp. OKLAHOMA SOUND CORP. 599 Industrial Avenue, Paramus, NJ 07652 Tel: 201-261-4111• Fax: 201-261-4571 Web-Site http://www.oklahomasound.com...
