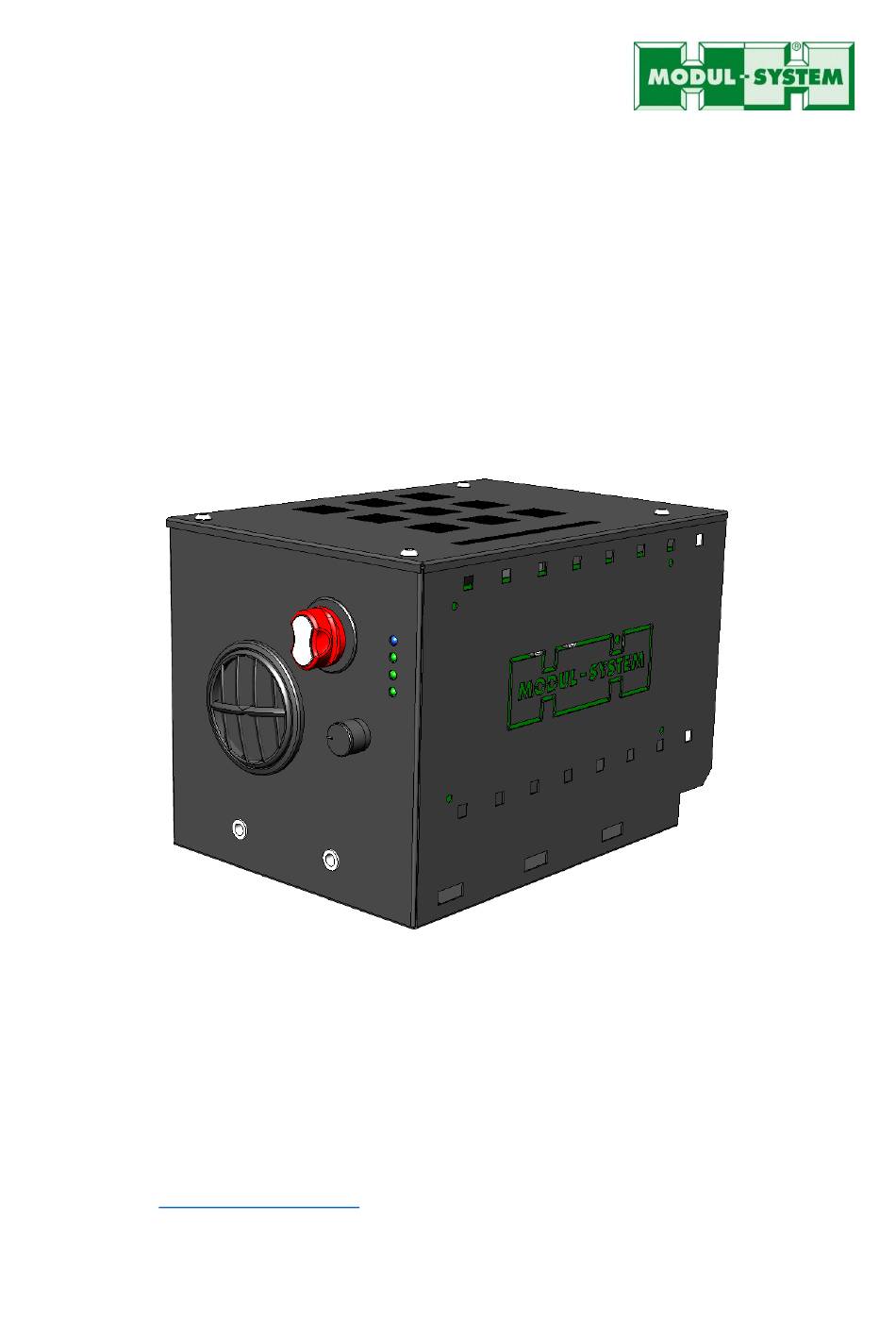

- Page 1 Modul-Connect 26100-03 Modul-Connect EV Heater Owner’s Manual Document Part Number MSEVC_1.0_WS_rev2 Service Contact Information E-mail: info@modul-system.com Phone: +46 31 746 87 00 Web: www.modul-system.com...
- Page 2 PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE Disclaimer While every precaution has been taken to ensure the accuracy of the contents of this guide, Modul-System assumes no responsibility for errors or omissions. Note: As well that specifications and product functionality may change without notice. Important Please be sure to read and save the entire manual before using your Modul-Connect EV Heater.
-
Page 3: Table Of Contents
Contents 1. Introduction ..........................1 1.1 Important safety information ....................2 2. Product description ........................5 3. Installation ..........................6 4. EV Heater DC input connection ....................8 5. Heater operation ........................9 5.1 24/7 Timer and control function ……………………………………………………………………………….…….. 11 6. -
Page 4: Introduction
Thank you for purchasing the Modul-Connect EV Heater. This EV Heater unit allows you to heat your load area and Cab. The 26100-03 Heater is intended to use Modul-Connect as its control platform and must be fitted in conjunction with this system. -
Page 5: Important Safety Information
Important safety information This section contains important safety information for the Modul-Connect EV Heater. Each time, before using the product, READ ALL instructions and cautionary markings on, or provided with the heater, and all appropriate sections of this guide. The EV Heater has external and internal fusing, apart from the internal blade fuses (found by removing the top cover) there are no internal end user serviceable parts. - Page 6 DANGER: Failure to follow these instructions can result in death or serious injury. • This Heater is designed for Utility style Light Commercial Vehicles. • Ensure that the fan of the Heater is running when the unit is in operation. •...
- Page 7 Modul-Connect CAN cable if fitted. • DO NOT modify the Heaters internal electrical system circuitry in anyway without written confirmation from Modul-System. • In the unlikely event of an internal fuse needing replacement, only use the same rating fuse as removed.
-
Page 8: Product Description
• QR Code on heater for link to the Owner’s manual When specified the 26100-03 Modul-Connect EV Heater package can also include the EV Heater with the front mounted (26200-03) Temperature control rotational switch fitted. The Heater has 2 air outlets, one to the front and an additional to the rear. -
Page 9: Installation
CAUTION: Before beginning your installation, please consider the following: • The 26100-03 Heater is intended to use Modul-Connect as its control platform and must be fitted in conjunction with this system or with the additional Manual Control Swich (26200-03). - Page 10 • Using the 2 front mounting holes (minimum), place the Heater in position and fasten it to the mounting surface. IMPORTANT: 26100-03 EV heater Connection Procedure / Power up sequence to ensure normal operations with a 24000-03 Modul-Connect 2.0 Main Box or a 24000-032 Modul-Connect PRO Main Box: 1.
-
Page 11: Ev Heater Dc Input Connection
The 100 amp DC-rated fuse and holder is required at the DC positive source to protect the cable run. CAN Connection 26100-03 Heater to Modul-Connect and Modul-Connect PRO. • The Heater is controlled and monitored by CAN 1 from the Modul Connect box as a default. -
Page 12: Heater Operation
The 26100-03 Modul-Connect EV Heater operates with an input voltage between 10.5v – 15.5 v. • The EV Heater is turned On and Off with the Modul Connect switches or by Phone APP or associated timer function. - Page 13 On the settings screen heater function is at the top and Fan control at the bottom. • An addition to the EV heater with manual switch functions and temperature control to the front panel of the heater is also available from Modul-System please enquire with your local market or Products page on www.Modul-System.com...
-
Page 14: 24/7 Timer And Control Function
• The colour status LED indicators on the front of the Heater show the physical status as follows: Status LED colour Status LED Mode Note output Heater Off Blue Constant ON Cooling / recirculation Amber 1 (Blue On) Constant ON Heat Fan and 200w Heating On Amber 2 (Blue On) -
Page 15: Troubleshooting
Troubleshooting To troubleshoot the Modul-Connect EV Heater, • Ensure the supplying batteries are fully Charged by plugging the vehicle into a Shore supply charger. • The EV Heater has an internal battery guard set at 10.5 volts, the heater will not operate below this voltage. -
Page 16: Technical Specification
Technical specification Note: The specifications are subject to change without notices. Specification Metric Imperial & Other 26100-03 26108-03 Additional (cab or locker) 12v 24w Max inrush booster Blower unit Fan Cool/Recirculate 24w Max inrush Heat Output 200w / 400w / 600w Max... -
Page 17: Warranty
If you are experiencing any problems with your unit, please contact our customer service department at info@modul-system.com or phone +46 31 746 87 00 before returning product. After speaking to a customer service representative, if products are deemed non-working or malfunctioning, the product may be returned to Modul-System within 30 days of original purchase.
