Assembly Guide
Seat Walker Holder – Scooter Accessory
S1839 - Scooter Accessory - Seat Walker Holder for Scooters (ILS ADL)
A
B
C

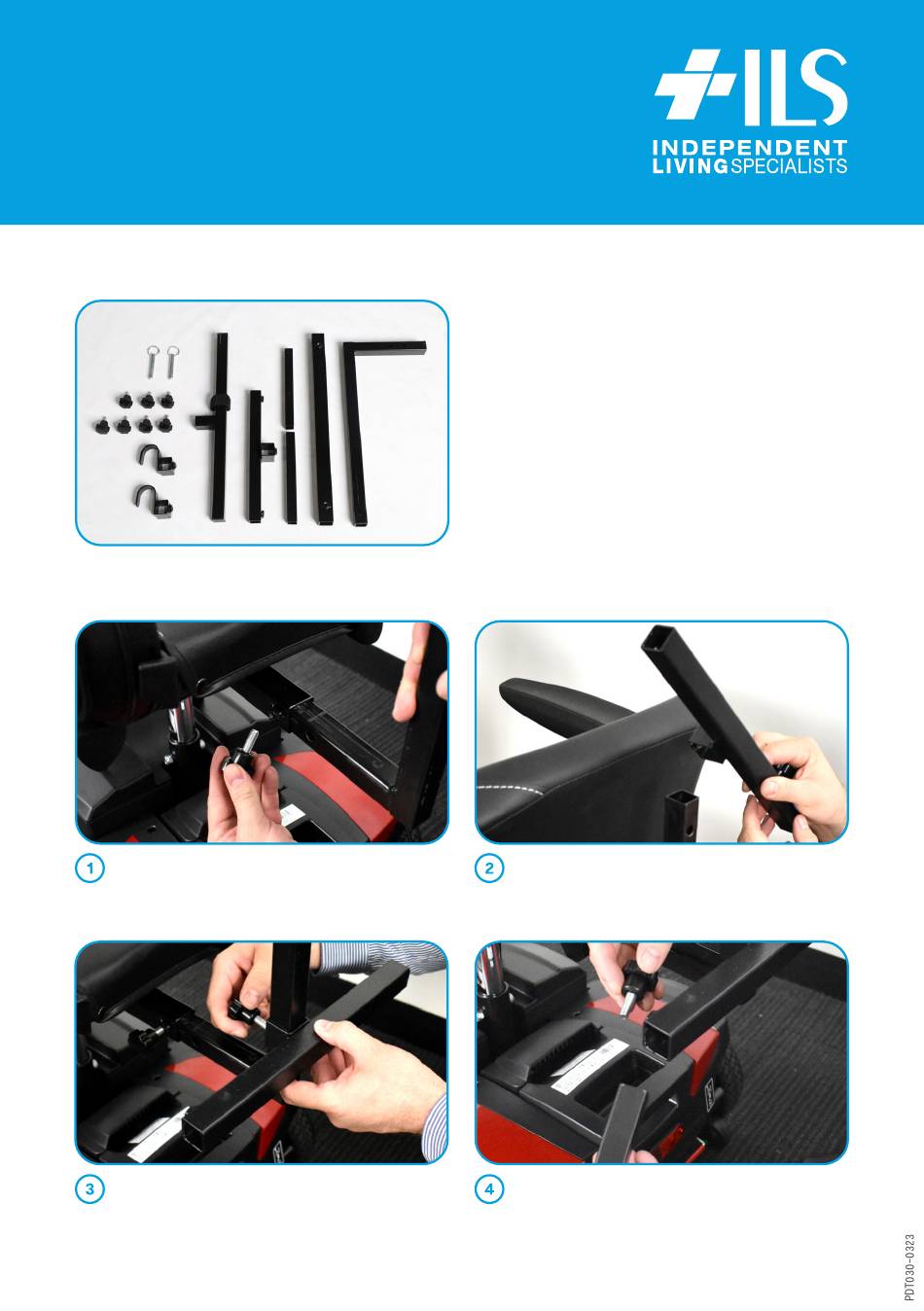

Place L shaped bar in rear receiver of
scooter and place metal pin and/or
screw in position.
Slide the small T shaped bar to the very
bottom of the L shaped bar and tighten
screw into position.
©2023 Independent Living Specialists, Unit 1, 12 Mars Road Lane Cove West NSW 2066 | 1300 008 267 | ilsau.com.au
D
G
H
F
E

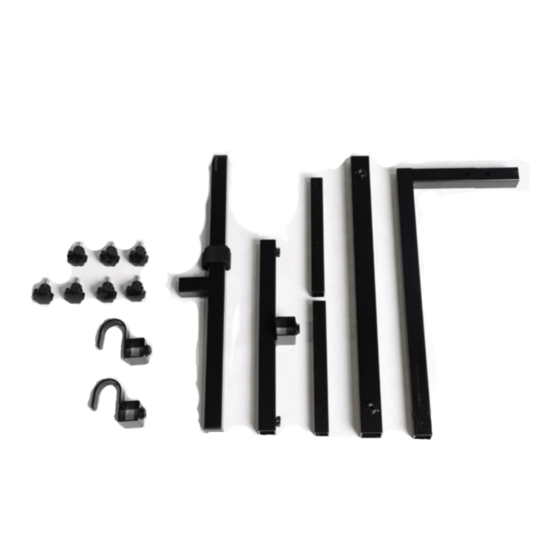

Included in the Box
A. Metal pins
B. Screws
C. Hanging clips
D. Large T shaped bar
E. Small T shaped bar
F. Small extension bars
G. Large extension bar
H. L shaped bar
Place the small T shaped bar through
the L shaped bar.
Place small extension bars at both ends
of the T shaped bar and tighten with
screws.
