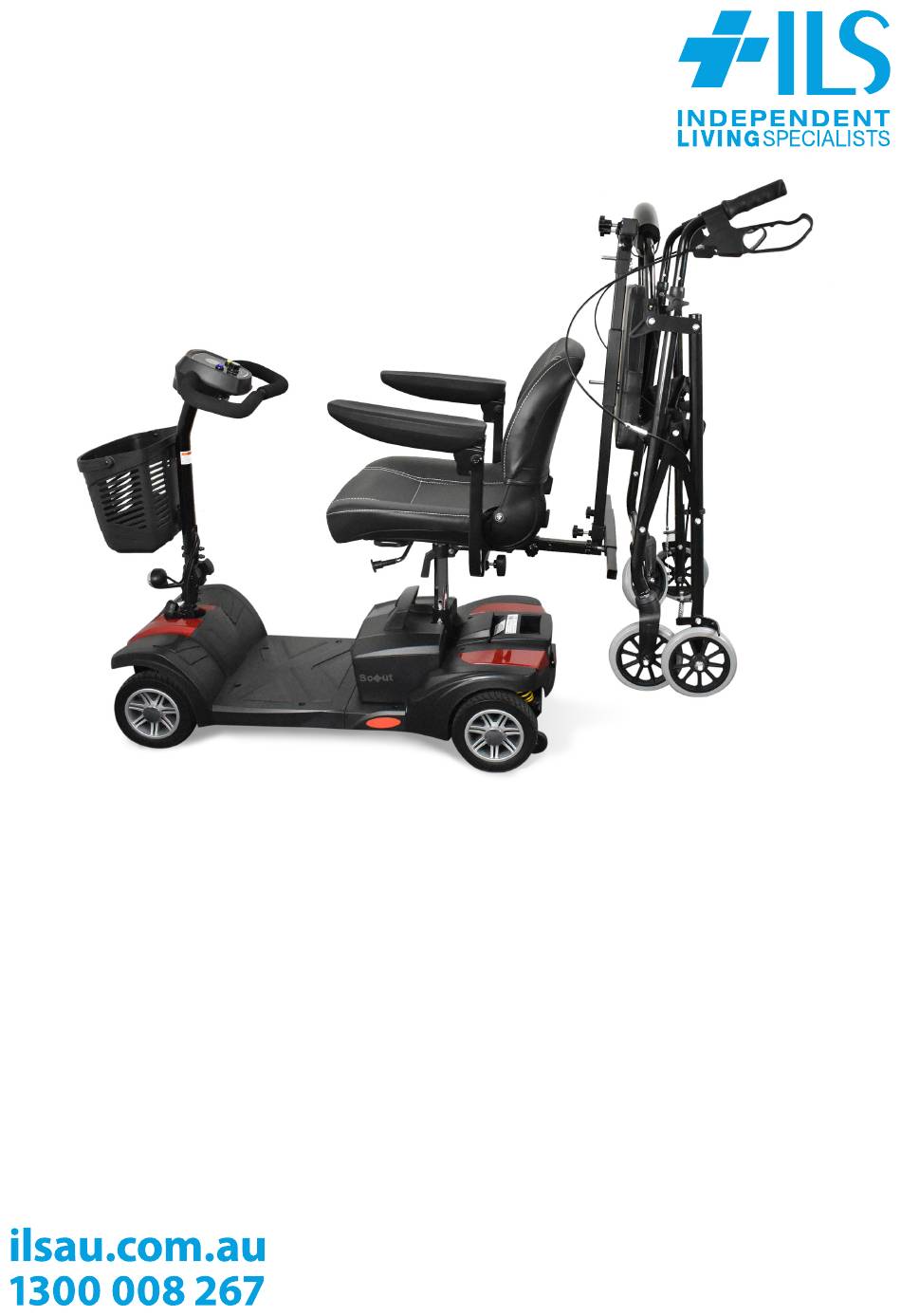

- Page 1 ILS Seat Walker Holder Assembly Guide SKU:S1839...
- Page 2 Place L shaped bar in rear receiver of scooter and Place the small T shaped bar through the place securing rod or screw bolt in position. L shape bar Slide the small T shaped bar to the very bottom Place small extension bars at both ends of the T of the L shaped bar and bolt into position shaped bar and fasten with bolts Install Long extension tube onto the top of the...
- Page 3 Secure with bolt and metal pin Place the large T shaped bar on the left-hand extension tube Bolt this T shaped tube into position Bolt the right-side hanging clip into position facing outwards at the end of the T piece bar Bolt the left side hanging clip on the other end See fully assembled walker holder facing outwards at the end of the T piece bar...
- Page 4 Lift seat and place seat walker on the holder via Secure tightly to the holder with Velcro provided the backrest (Models may vary)
