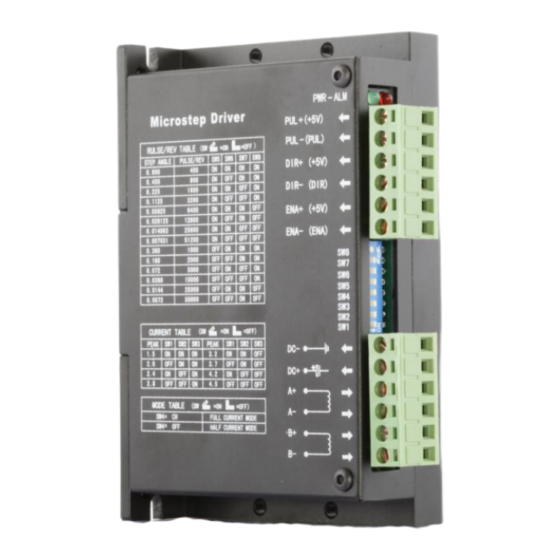

1. Introduction,Features and Applications Introduction The M542H is an economical microstepping driver based on patented technology of Sunwind. It is suitable for driving 2-phase and 4-phase hybrid stepping motors. By using the advanced bipolar constant-current chopping technique, it can output more speed and torque from the same motor,compared with traditional drivers, such as L/R drivers.
Page 6: Specifications And Operating Environment
Sunwind Electronics Company Ltd. Stepper Motor Driver:M542H machines, such as X-Y tables, labeling machines, laser cutters, engraving machines,pick-place devices, and so on. Particularly adapt to the applications desired with low vibration,high speed and high precision. 2.Specifications and Operating Environment Electrical Specifications(Tj=25°C)
Page 7: Mechanical Specifications
Sunwind Electronics Company Ltd. Stepper Motor Driver:M542H Mechanical Specifications (unit:mm, 1 inch = 25.4 mm) Front View Side View Figure 1: Mechanical specifications *Recommended to use side mounting for better heat dissipation Elimination of Heat Driver’s reliable working temperature should be <65℃, and motor working temperature should be <80℃;...
Page 8: Pin Assignment And Description
Usually left UNCONNECTED (ENABLED). Single pulse and double pulses mode switch There are two jumpers inside the M542H specifically for switch Single pulse and double pulses mode,as shown in figure 2. Default setting is Single pulse mode.
Page 9: Connector P2 Configurations
The M542H can accept differential and single-ended input signals (including open-collector and PNP output). The M542H has 3 optically isolated logic inputs which are located on connector P1 to accept line driver control signals. These inputs are isolated to minimize or eliminate electrical noises coupled onto the drive control signals.
Page 10: Connecting The Motor
Figure 4: Connection to PNP signal (common-cathode) 5. Connecting the Motor The M542H driver can drive any 2-pahse and 4-pahse hybrid stepping motors. Connections to 4-lead Motors 4 lead motors are the least flexible but easiest to wire. Speed and torque will depend on winding inductance.
Page 11: Connections To 6-Lead Motors
Sunwind Electronics Company Ltd. Stepper Motor Driver:M542H Connections to 6-lead Motors Like 8 lead stepping motors, 6 lead motors have two configurations available for high speed or high torque operation. The higher speed configuration, or half coil, is so described because it uses one half of the motor’s inductor windings.
Page 12: Connections To 8-Lead Motors
Sunwind Electronics Company Ltd. Stepper Motor Driver:M542H Figure 7: 6-lead motor full coil (higher torque) connections Connections to 8-lead Motors 8 lead motors offer a high degree of flexibility to the system designer in that they may be connected in series or parallel, thus satisfying a wide range of applications.
Page 13: Power Supply Selection
Figure 9: 8-lead motor parallel connections 6. Power supply Selection The M542H can match medium and small size stepping motors (from Nema size 17 to 34) made by Sunwind or other motor manufactures around the world. To achieve good driving performances, it is important to select supply voltage and output current properly.
Page 14: Multiple Drivers
To avoid cross interference, DO NOT daisy-chain the power supply input pins of the drivers. (Instead, please connect them to power supply separately.) Attention: NEVER connect power and ground in the wrong direction, as it will damage the M542H. Selecting Supply Voltage The power MOSFETS inside the M542H can actually operate within +20V－+100VDC, max...
Page 15: Microstep Resolution Selection
Sunwind Electronics Company Ltd. Stepper Motor Driver:M542H Microstep Resolution Selection Microstep resolution is set by SW5, 6, 7, 8 of the DIP switch as shown in the following table: Step Angle Pulse/Rev 0.45 0.225 1600 0.1125 3200 0.05625 6400 0.028125 12800 0.014063...
Page 16: Standstill Current Setting
36% (due to P=I *R) of the original value. If the application needs a different standstill current, please contact Sunwind. 8. Wiring Notes In order to improve anti-interference performance of the driver, it is recommended to use twisted pair shield cable.
Page 17: Typical Connection
Sunwind Electronics Company Ltd. Stepper Motor Driver:M542H 9. Typical Connection A complete stepping system should include stepping motor, stepping driver, power supply and controller (pulse generator). A typical connection is shown as figure 10. Figure 10: Typical connection 10. Sequence Chart of Control Signals...
Page 18: Protection Functions
Sunwind Electronics Company Ltd. Stepper Motor Driver:M542H Figure 11: Sequence chart of control signals Remark: (1) t : ENA must be ahead of DIR by at least 5μs. Usually, ENA+ and ENA- are NC (not connected). See “Connector P1 Configurations” for more information.
Page 19: Coil-Ground Short Circuit Protection
12. Frequently Asked Questions In the event that your M542H doesn’t operate properly, the first step is to identify whether the problem is electrical or mechanical in nature. The next step is to isolate the system component that is causing the problem.
Page 20: Appendix
Sunwind Electronics Company Limited warrants its products against defects in materials and workmanship for a period of 12 months from shipment out of factory. During the warranty period, Sunwind will either, at its option, repair or replace products which proved to be defective. Exclusions...
Page 21: Warranty Limitations
Sunwind shall pay for return of products to customer. Warranty Limitations Sunwind makes no other warranty, either expressed or implied, with respect to the product. Sunwind specifically disclaims the implied warranties of merchantability and fitness for a particular purpose. Some jurisdictions do not allow limitations on how long and implied warranty lasts, so the above limitation or exclusion may not apply to you.
