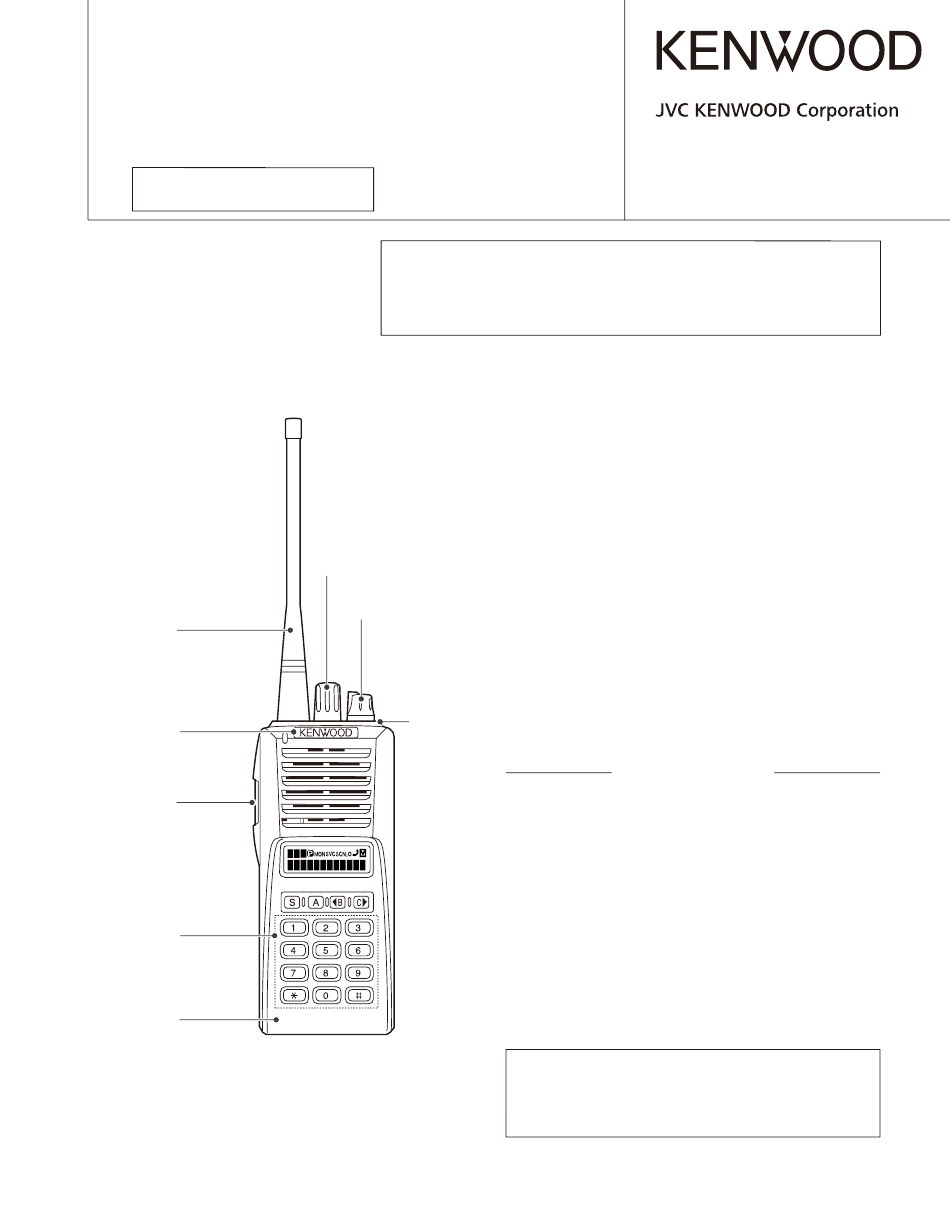

800MHz/900MHz FM TRANSCEIVER
TK-480/481
SERVICE MANUAL
SUPPLEMENT II
Whip antenna
(T90-0636-25) : TK-480
(T90-0640-25) : TK-481
Badge
(B43-1139-04)
Knob (PTT)
(K29-5157-03)
Packing
(G53-0841-22) : K4
Cabinet assy
(A02-3659-23) : K4
Illustration is TK-480/481 K4 type.
RoHS
This product complies with the
K3, K4, M4 versions
This service manual has been revised due to the modifi cation of the LCD ASSY and is-
sues it as a supplemental manual.
This service manual applies to products with B2200001 (TK-480), B2200001 (TK-481)
or subsequent serial numbers. Refer to the TK-480/481 series service manual for any
information which has not been covered in this manual.
Knob (Selector)
(K29-5232-03)
Knob (VOL)
(K29-5231-03)
Panel assy
(A62-0981-04)
directive for the European market
© 2012-4 PRINTED IN JA PAN
B53-7022-00 ( Y ) PDF
CONTENTS
GENERAL ....................................................2
DISASSEMBLY FOR REPAIR .....................3
PARTS LIST .................................................4
EXPLODED VIEW ......................................11
PC BOARD
TX-RX UNIT (X57-5630-XX) ...................12
SCHEMATIC DIAGRAM ............................16
CAUTION
When using an external power connector,
please use with maximum fi nal module protec-
tion of 9V.
.
This product uses Lead Free solder
.
