Installation Guide
Hazard Alert Messages
Read and observe all Warning and Caution hazard alert messages in
this publication. They provide information that can help prevent
serious personal injury, damage to components, or both.
WARNING
To prevent serious eye injury, always wear safe eye protection
when you perform vehicle maintenance or service.
Park the vehicle on a level surface. Block the wheels to
prevent the vehicle from moving. Support the vehicle with
safety stands. Do not work under a vehicle supported only by
jacks. Jacks can slip and fall over. Serious personal injury and
damage to components can result.
How to Obtain Additional Maintenance,
Service and Product Information
Refer to Maintenance Manual MM-1291, OnLane™ Lane Departure
Warning System; and User Guide SP-1335, OnLane™ Driver Tips. If
you have any questions about the material covered in these
publications, or for more information about the Meritor WABCO
product line, please contact the Meritor OnTrac™ Customer Call
Center at 866-OnTrac1 (668-7221) or visit our website:
meritorwabco.com
How to Obtain Parts and Kits
Contact Meritor's Commercial Vehicle Aftermarket at
888-725-9355.
Kit Parts List
Locate and verify that the kit is complete prior to beginning the
installation of this kit.
OnLane™ bracket

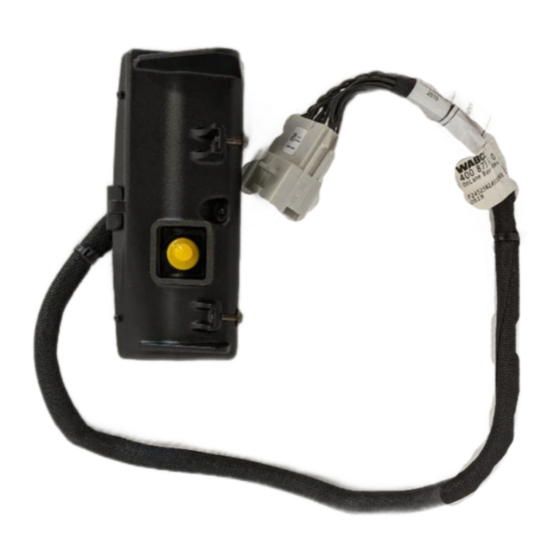

OnLane™ camera module
OnLane™ switch
SB-10058336-5948
OnLane™ Lane Departure
Warning (LDW) System
Installation Guide
Freightliner M2 Only
Con-way
Issued 07-15
TP-15110
1 Technical Bulletin
Set of 2 audio switches
Wiring harness
Hardware kit
MCS-1411 installation document
Description
OnLane™ Lane Departure Warning (LDW) System with SafeTraK
technology by Takata is a camera-based warning system that
utilizes a camera mounted near the top center of the vehicle's
windshield to monitor and calculate the vehicle's position within the
lane. When OnLane™ detects the vehicle crossing lane markings
without the turn signal being activated, the system sounds an
audible warning through a set of speakers. OnLane™ identifies
intentional lane changes by monitoring the turn signals, brake
switch and vehicle speed.
The following conditions may impact system performance:
Dirty or damaged windshield
Poor lighting conditions caused by inoperable headlamp(s) or
severe road glare
Poor weather conditions such as snow, ice, heavy fog or heavy
rain
Poor pavement conditions such as broken road surface, ice,
snow, sand, dirt or gravel covering the road surface
Missing, worn, faded, damaged or covered lane markers
When the system cannot provide assistance, the vehicle's amber
indicator is turned ON. The system resumes normal operation when
the environmental factors causing the interference are resolved and
the amber indicator will turn OFF.
TP-15110
Issued 07-15
Advertisement
Related Manuals for Meritor Wabco OnLane
Summary of Contents for Meritor Wabco OnLane
- Page 1 Refer to Maintenance Manual MM-1291, OnLane™ Lane Departure Dirty or damaged windshield Warning System; and User Guide SP-1335, OnLane™ Driver Tips. If Poor lighting conditions caused by inoperable headlamp(s) or you have any questions about the material covered in these...
-
Page 2: Installation Procedures
Installation Procedures The OnLane™ system should only be installed on a windshield when the glass temperature is within the recommended range between 70-100°F (21-37°C). Do not apply the bracket if the Camera and Bracket Installation windshield temperature is below 60°F (15°C). - Page 3 OnLane™ Audio Switch Installation the glass and press the bracket firmly against the glass. Identify the location in the truck where the OnLane™ audio Maintain a minimum of 45 pounds of force for 30 seconds. switches will be mounted (under the dash near each speaker).
- Page 4 Tuck the camera harness inside the headliner to mate with the wiring harness connector from the A-pillar. Route the OnLane™ switch connector behind the dash to the desired location for the switch. If there is no opening on the dash panel that can accommodate the switch, one should be made.
- Page 5 BE CAREFUL NOT TO PINCH OR DAMAGE WIRES DURING ROUTING. Ensure that you do not hold the Enter test mode by depressing the OnLane™ rocker switch at camera away from the cable so you do not pull the wires inside least seven times within two seconds after the audible start-up the camera.
- Page 6 Information contained in this publication was in effect at the time the publication was approved for printing and is subject to 2135 West Maple Road change without notice or liability. Meritor WABCO reserves the right to revise the information presented or to discontinue the Troy, MI 48084-7121 USA production of parts described at any time.
