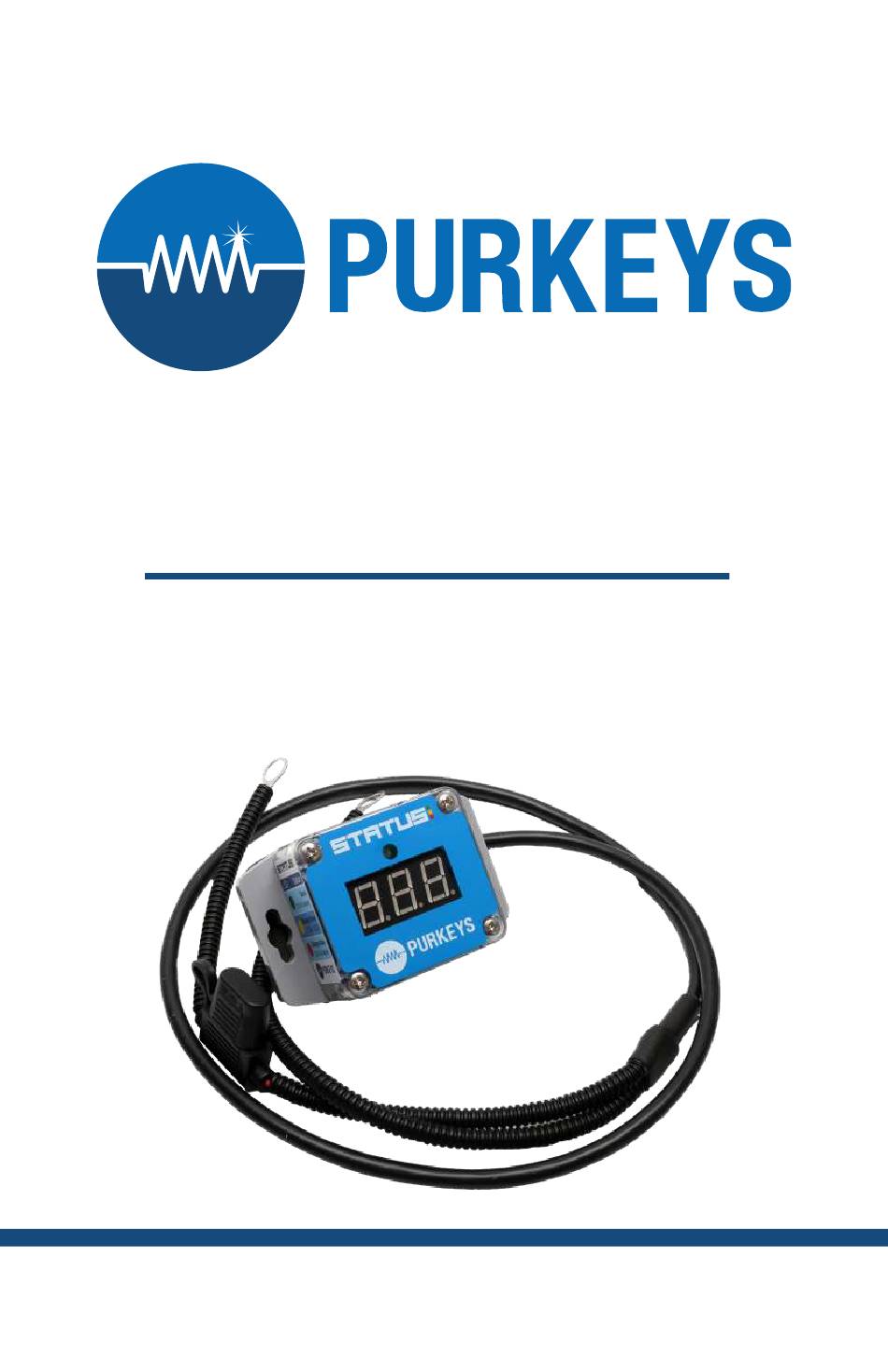

- Page 1 A MISSION CRITICAL ELECTRONICS BRAND STATUS INSTALLATION GUIDE 300-95 R1.00...
-
Page 3: Table Of Contents
CONTENTS General Information ..................2 Diagram .......................2 Status Installation ....................3 Operation and Troubleshooting ...............5 Battery Health LED Information ..............6 Limited Commercial Warranty Policy .............8 P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 4: General Information

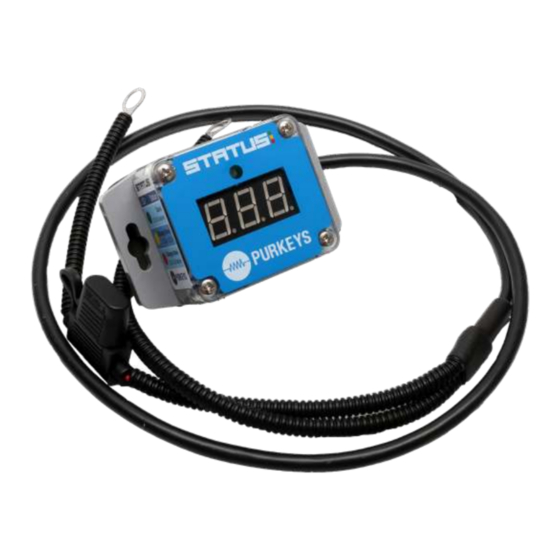

GENERAL INFORMATION The Status is a battery status indicator. It uses a screen to show numeric battery voltage and state of charge, and also has an LED that turns green, yellow/amber, or red to indicate battery health. A quick glance at the Status controller assures the driver or technician that the batteries are ready to go, or alerts the driver that the batteries need maintenance. -
Page 5: Status Installation
STATUS 12 VOLT INSTALLATION GUIDE STATUS INSTALLATION Step 1: Install the supplied rubber gasket to the back of the Status. Step 2: Route the wires of the Status with the in-line fuse holder into the battery box through a 1.06 inch hole. - Page 6 Step 4: Connect the battery negative wire to the negative post on the battery. Tighten battery nut. Step 5: Connect the positive wire with the in-line fuse to the positive post on the battery. Tighten battery nut. Installation Complete.
-
Page 7: Operation And Troubleshooting
Fast Flashing Inspect the charging Overcharging (above 15 V) system Open circuit from battery Repair circuit by positive and Status or No LED repairing the wire or disconnected ground in battery replacing the fuse P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 8: Battery Health Led Information
BATTERY HEALTH LED INFORMATION Voltage (displayed) SOC % (displayed) LED Color 11.2 V Slow Flashing Red 11.3 V 11.4 V 11.5 V 11.6 V 11.7 V 11.8 V 11.9 V 12.0 V 12.1 V 12.2 V 12.3 V 12.4 V Yellow/Amber 12.5 V Yellow/Amber... - Page 9 STATUS 12 VOLT INSTALLATION GUIDE NOTES P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
-
Page 10: Limited Commercial Warranty Policy
Purkeys. ANY product alleged by a Customer to be defective must be inspected by Purkeys as a part of the warranty claims process in order to confirm that the part has failed as a result of a defect in material or workmanship. - Page 11 STATUS 12 VOLT INSTALLATION GUIDE P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
