DeLOCK 62590 User Manual

Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and
RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the
EU-comission.
The declaration of conformity can be downloaded here:
https://www.delock.de/produkte/G_62590/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became
effective as European law on February 13th 2003, resulted in an all out change
in the disposal of disused electro devices. The primarily purpose of this directive
is the avoidance of electrical waste (WEEE) and at the same time the support of
recycling and other forms of recycling in order to reduce waste. The WEEE-logo on
the device and the package indicates that the device should not be disposed in the
normal household garbage. You are responsible for taking the disused electrical
and electronical devices to a respective collecting point. A separated collection and
reasonable recycling of your electrical waste helps handling the natural resources
more economical. Furthermore recycling of electrical waste is a contribution to
keep the environment and thus also the health of men. Further information about
disposal of electrical and electronical waste, recycling and the collection points
are available in local organizations, waste management enterprises, in specialized
trade and the producer of the device.
Cet appareil
se recycle
Points de collecte sur www.quefairedemesdechets.fr
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
Support Delock
If you have further questions, please contact our customer support
support@delock.de
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice
in advance. Errors and misprints excepted.
Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Delock.
Edition: 02/2023
User manual
Mode d'emploi
Uživatelská příručka
Manuale utente
Manual de utilizare
Korisnički priručnik

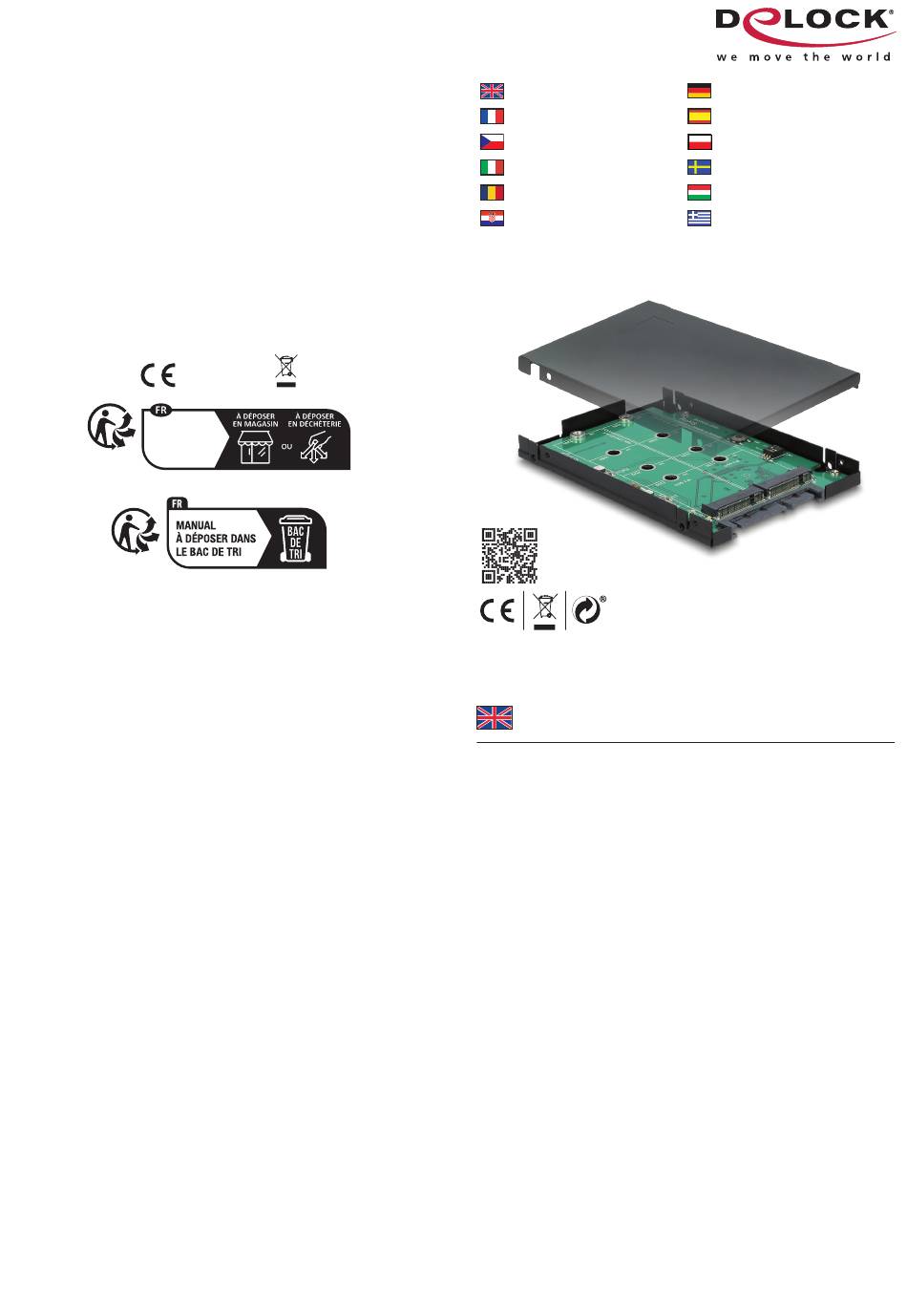

2.5" SATA to 2 x M.2 Converter
with RAID
English
Description
This Delock converter enables the connection of up to two M.2 SSD in 2280,
2260, 2242 or 2230 format which can be used as a 2.5" HDD. The converter can
be installed into the system internally through a SATA 22 pin interface. When using
more than one SSD, there is the possibility to use different RAID level.
Note
This product provides a chipset-based RAID function. Management and setting
of the RAID mode is not possible via the operating system or BIOS. Different
diagnostic software is not compatible with this solution.
The SMART function is not supported. JBOD is only supported on SATA controllers
with port multiplier function.
Specification
• Connectors:
1 x SATA 6 Gb/s 22 pin plug
2 x 67 pin M.2 key B slot
• Interface: SATA
• Chipset: Asmedia ASM1092R
• Form factor: 2.5"
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key
B+M based on SATA
• Maximum height of the components on the module: 1.35 mm, application of
double-sided assembled modules supported
• Supports RAID 0, 1, JBOD
• DIP switch for RAID mode setting
• 2 x LED for SATA host activity (green) and M.2 SSD error (red)
• Bootable
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 100 x 70 x 9.5 mm
• OS independent, no driver installation necessary
Bedienungsanleitung
Manual del usuario
Instrukcja obsługi
Bruksanvisning
Használati utasítás
Εγχειρίδιο χρήστη
Product-No: 62590
User manual no: 62590-a
www.delock.com
