MYLEX
42470

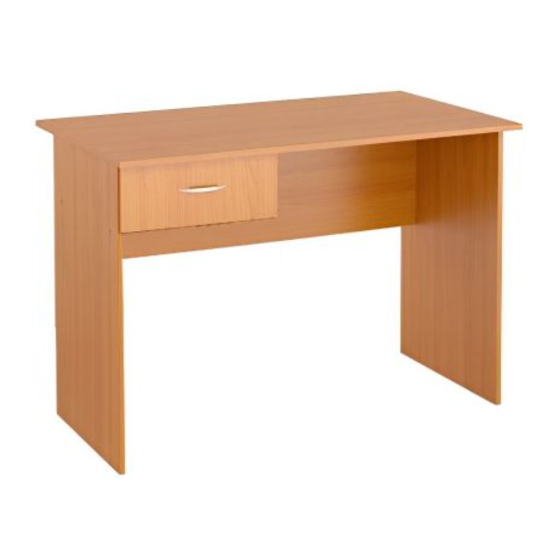

DESK/BUREAU
IMPORTANT
TO OUR CUSTOMERS:
THIS PRODUCT HAS BEEN CAREFULLY
QUALITY CONTROLLED, HOWEVER HUMAN ERROR
CAN OCCUR, SHOULD YOU EXPERIENCE
ANY PROBLEMS WITH THE PRODUCT PLEASE
NOTIFY CUSTOMER SERVICE AT:
(416) 745-1733
TORONTO
CANADA
1-800-668-6959
& U.S.A
HRS. 9:00am-5:00pm EST.
MONDAY – FRIDAY
AVIS IMPORTANT
A NOS CLIENTS:
CE PRODUIT A SUBI DES CONTROLES DE
QUALITE TRES RIGOUREUX, MAIS MALGRE
TOUS NOS EFFORTS, DES ERREURS
PEUVENT SE GLISSER, EN CAS PROBLEME
AVEC CE PRODUIT, VEUILLEZ CONTACTER
LE SERVICE A LA CLIENTELE AU NUMERO
(416) 745-1733
TORONTO
1-800-668-6959
CANADA ET É.-U.
HRES: 9h00 A 17h00 (EST)
DU LUNDI AU VENDREDI.
NO.
PART
DESRIPTION
NUMBER
NUMERO DE
LA PIÈCE
1
754247001
LEFT SIDE
2
754247002
RIGHT SIDE
3
754247003
TOP
4
754247004
MID POST
5
106110510292 BACK PANEL
6
754247006
DRAWER SHELF
7
754247007
DRAWER FRONT
8
754247008
LEFT DRAWER
SIDE
9
754247009
RIGHT DRAWER
SIDE
10
754247010
DRAWER BACK
11
754247011
DRAWER BOTTOM TIROIR PANNEAU DU FOND
51
300504
CONFIRMAT
SCREW
52
300301A
CAM POST
53
300401A
5/8" CAM
FASTENERS
54
301103
DOWEL
55
300203
NAILS
61
300116
6 X 1 PAN ZINC
65
307100
HANDLE
71
301207
DRAWER STOPPER BUTOIR DU TIROIR
79
305310
HOLE PLUG
TOOLS REQUIRED:
FLAT-BLADE SCREWDRIVER
PHILIPS SCREWDRIVER
HAMMER
DESCRIPTION
QTY.
QTEE
PANNEAU GAUCHE
1
PANNEAU DROIT
1
PANNEAU DU HAUT
1
PANNEAU CENTRAL
1
PANNEAU ARRIÈRE
1
TABLETTE DU TIROIR
1
TABLETTE PANNEAU AVANT
1
TIROIRPANNEAU GAUCHE
1
TIROIR PANNEAU DROIT
1
TIROIR PANNEAU ARRIÈRE
1
1
VIS DE TYPE "CONFIRMAT"
6
TENONS A CAME
8
ATTACHES DE TENONS A
8
CAME 5/8"PO.
GOUJONS
2
CLOUS
22
VIS À TÊTE TRONCONIQUE
2
#6x1"
POIGNEE
1
1
BOUCHON POUR TROUS
2
OUTILS NÉCESSAIRES :
TOURNEVIS À LAME PLATE
TOURNEVIS PHILIPS
MARTEAU
Advertisement
Related Manuals for Mylex 42470
Summary of Contents for Mylex 42470
- Page 1 MYLEX PART DESRIPTION DESCRIPTION QTY. NUMBER QTEE NUMERO DE LA PIÈCE 754247001 LEFT SIDE PANNEAU GAUCHE 42470 754247002 RIGHT SIDE PANNEAU DROIT 754247003 PANNEAU DU HAUT DESK/BUREAU 754247004 MID POST PANNEAU CENTRAL 106110510292 BACK PANEL PANNEAU ARRIÈRE IMPORTANT AVIS IMPORTANT...
- Page 2 THE CAM POST (52) IN THE MIDDLE OF THE TOP (3) CAN BE INSTALLED SO THAT THE DRAWER WILL BE ON EITHER THE LEFT OR RIGHT SIDE OF THE DESK. INSTALL THE CAM POST (52) INTO THE UNDER-SIDE OF THE TOP (3). LE TENON À...
- Page 3 INSERT CAM FASTENERS (53) INTO SIDES (1), (2) AND MID POST (4). THE ARROW ON THE CAM FASTENERS (53) MUST POINT TOWARD THE HOLE IN THE EDGE OF THE PANEL. USING CAM FASTENERS (53) ATTACH SIDE (1), (2) AND MID POST (4) TO THE TOP (3). ENSURE THAT ALL CAM FASTENERS (53) ARE TIGHTENED WITH A SCREWDRIVER.
- Page 4 ATTACH DRAWER SIDES (8) AND (9) TO DRAWER BACK (10) USING CONFIRMAT SCREWS (51). ATTACH CAM POST (52) TO DRAWER FRONT (7). ATTACH DRAWER FRONT (7) TO DRAWER SIDES (8) AND (9) USING CAM FASTENERS INSERT DOWELS (54) INTO DRAWER FRONT (7) AS SHOWN. (53), AS SHOWN.
- Page 5 NAIL ON DRAWER BOTTOM (11) USING NAILS (55). CLOUER LE DESSOUS DU TIROIR (11) UTILISANT LES CLOUS (55). ENSURE UNIT IS SQUARE. USING NAILS (55) ATTACH BACK PANEL (5) TO BACK OF UNIT. ASSUREZ-VOUS QUE TOUS LES PANNEAU SOIENT BIEN À ANGLE DROIT. AU MOYEN DES CLOUS (55) FIXES LES DU PANNEAU DU FOND (5) DOS DU MEUBLE.
- Page 6 INSTALL DRAWER AS SHOWN IN DIAGRAM. INSTALLEZ LES TIROIRS, COMME SUR LA FIGURE. COVER UNUSED HOLES WITH CAPS (79). FIXEZ LES CAPUCHON (79) DANS LES TROUS NON UTILISER.
