MYLEX
43083

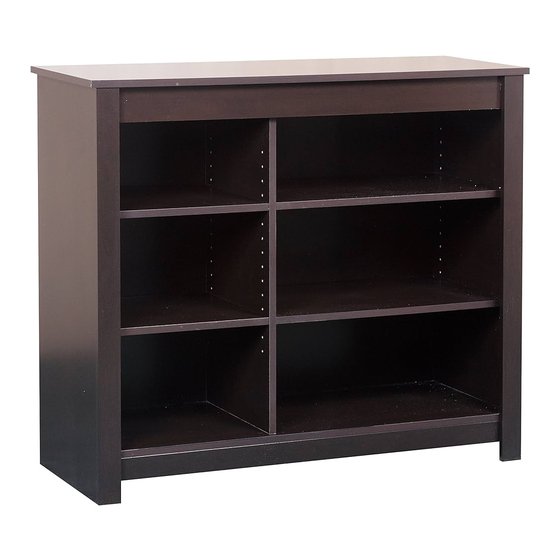

DELUXE STORAGE ORGANIZER
ORGANISATEUR DE RANGEMENT
DE LUXE
IMPORTANT
TO OUR CUSTOMERS:
THIS PRODUCT HAS BEEN CAREFULLY
QUALITY CONTROLLED, HOWEVER HUMAN ERROR
CAN OCCUR, SHOULD YOU EXPERIENCE
ANY PROBLEMS WITH THE PRODUCT PLEASE
NOTIFY CUSTOMER SERVICE AT:
(416) 745-1733
TORONTO
1-800-668-6959
CANADA & U.S.A
HRS. 9:00am-5:00pm EST.
MONDAY – FRIDAY
AVIS IMPORTANT
A NOS CLIENTS:
CE PRODUIT A SUBI DES CONTROLES DE
QUALITE TRES RIGOUREUX, MAIS MALGRE
TOUS NOS EFFORTS, DES ERREURS
PEUVENT SE GLISSER, EN CAS PROBLEME
AVEC CE PRODUIT, VEUILLEZ CONTACTER
LE SERVICE A LA CLIENTELE AU NUMERO
(416) 745-1733
TORONTO
1-800-668-6959
CANADA ET É.-U.
HRES: 9h00 A 17h00 (EST)
DU LUNDI AU VENDREDI.
NO.
PART NUMBER
DESCRIPTION
NUMERO DE LA
PIÉCE
1
754308301
LEFT SIDE
2
754308302
RIGHT SIDE
3
754308303
TOP
4
754308304
BOTTOM
5
754308305
MID SIDE
6
754308306
SMALL ADJUSTABLE
SHELF
7
754308307
LARGE ADJUSTABLE
SHELF
8
754308308
FRONT PLATE
9
754308309
SIDE PROFILE
10
105308151025
BACK PANEL
51
300504
CONFIRMAT SCREW
52
300301A
CAM POST
53
300401A
5/8" CAM FASTENERS
54
301103
DOWEL
55
300203
NAILS
56
301201
SHELF SUPPORTS
84
302205
PLASTIC BRACKET
94
300115
8 X 5/8" WAFER HEAD
CAUTION
!
TOOLS REQUIRED:
FLAT-BLADE SCREWDRIVER
PHILIPS SCREWDRIVER
HAMMER
DESCRIPTION
CÔTÉ GAUCHE
CÔTÉ DROIT
DESSUS
DESSOUS
MONTANT MÉDIAN
PETITE TABLETTE AJUSTABLE
GRANDE TABLETTE AJUSTABLE
BUTOIR AVANT
PIÈCE PROFILÉE DU CÔTÉ
PANNEAU ARRIÈRE
VIS DE TYPE "CONFIRMAT"
TENONS A CAME
ATTACHES DE TENONS A CAME 5/8"PO.
GOUJONS
CLOUS
SUPPORTS DE TABLETTE
SUPPORT DE PLASTIQUE
TÊTE GAUFRÉE NO. 8 DE 5/8 PO.
!
DO NOT ALLOW
CHILDREN TO CLIMB ON
THIS UNIT, UNIT MAY
TIP RESULTING IN
INJURY.
NE LAISSEZ PAS LES
ENFANTS GRIMPER SUR
CET ELEMENT. IL
POURRAIT BASCULER
ET, DE CET FAIT,
CAUSER DES BLESSURES.
OUTILS NÉCESSAIRES :
TOURNEVIS À LAME PLATE
TOURNEVIS PHILIPS
MARTEAU
QTY.
QTEE
1
1
1
1
1
2
2
2
2
1
2
10
10
8
16
16
6
12

Advertisement

loading
Need help?

Need help?

Do you have a question about the DELUXE 43083 and is the answer not in the manual?

Questions and answers

Related Manuals for Mylex DELUXE 43083

Summary of Contents for Mylex DELUXE 43083

  • Page 1 PART NUMBER DESCRIPTION DESCRIPTION QTY. MYLEX NUMERO DE LA QTEE PIÉCE 754308301 LEFT SIDE CÔTÉ GAUCHE 754308302 RIGHT SIDE CÔTÉ DROIT 754308303 DESSUS 754308304 BOTTOM DESSOUS 754308305 MID SIDE MONTANT MÉDIAN 43083 754308306 SMALL ADJUSTABLE PETITE TABLETTE AJUSTABLE SHELF 754308307...
  • Page 2 ATTACH CAM POSTS (52) TO THE LEFT SIDE (1) USING PRE-DRILLED HOLES AND A SCREWDRIVER. INSERT CAM FASTENERS (53) INTO LEFT SIDE (1). ENSURE THE ARROW ON THE CAM FASTENER (53) IS POINTING TO THE HOLE OPENING AT THE EDGES OF THE LEFT SIDE (1).
  • Page 3 ATTACH CAM POSTS (52) TO THE RIGHT SIDE (2) USING PRE-DRILLED HOLES AND A SCREWDRIVER. INSERT CAM FASTENERS (53) INTO RIGHT SIDE (2). ENSURE THE ARROW ON THE CAM FASTENER (53) IS POINTING TO THE HOLE OPENING AT THE EDGES OF THE RIGHT SIDE (2).
  • Page 4 ATTACH THE SIDE PROFILE (9) TO THE RIGHT SIDE (2) USING PLASTIC BRACKETS (84) INSERT CAM FASTENERS (53) INTO BOTTOM (4). ENSURE THE ARROW ON THE CAM FASTENER (53) IS POINTING TO THE HOLE OPENING AT THE EDGES OF THE BOTTOM (4). AND SCREWS (94).
  • Page 5 INSERT CAM FASTENERS (53) INTO MID SIDE (5). ENSURE THE ARROW ON THE CAM FASTENER (53) IS POINTING TO THE HOLE OPENING AT THE EDGES OF THE MID SIDE (5). ATTACH THE BOTTOM (4) TO THE MID SIDE (5) USING CONFIRMAT SCREWS (51). INSÉREZ LES ATTACHES DE TENON À...
  • Page 6 ATTACH THE FRONT PLATES (8) TO THE LEFT SIDE (1) AND RIGHT SIDE (2) USING DOWELS (54). ATTACH THE RIGHT SIDE (2) TO THE BOTTOM (4) USING CAM POSTS (52) AND CAM FASTENERS. ENSURE ALL CAM FASTENERS (53) ARE TIGHTENED WITH A SCREWDRIVER.
  • Page 7 ATTACH THE TOP (3) TO THE LEFT SIDE (1), RIGHT SIDE (2), AND MID SIDE (5) USING CAM POSTS (52) AND CAM FASTENERS (53). ENSURE ALL CAM FASTENERS (53) ARE TIGHTENED WITH A SCREWDRIVER. ATTACH CAM POSTS (52) TO THE TOP (3) USING PRE-DRILLED HOLES AND A SCREWDRIVER.
  • Page 8 INSERT SHELF SUPPORT (56) INTO THE HOLES IN THE LEFT SIDE (1), RIGHT SIDE (2), AND MID SIDE (5) AT THE DESIRED POSITIONS FOR THE ADJUSTABLE SHELVES. INSTALL THE ADJUSTABLE SHELVES. ENSURE UNIT IS SQUARE. POSITION BACK PANEL (10) BEFORE ATTACHING. USE NAILS (55) TO ATTACH BACK PANEL (10) TO BACK OF UNIT.
