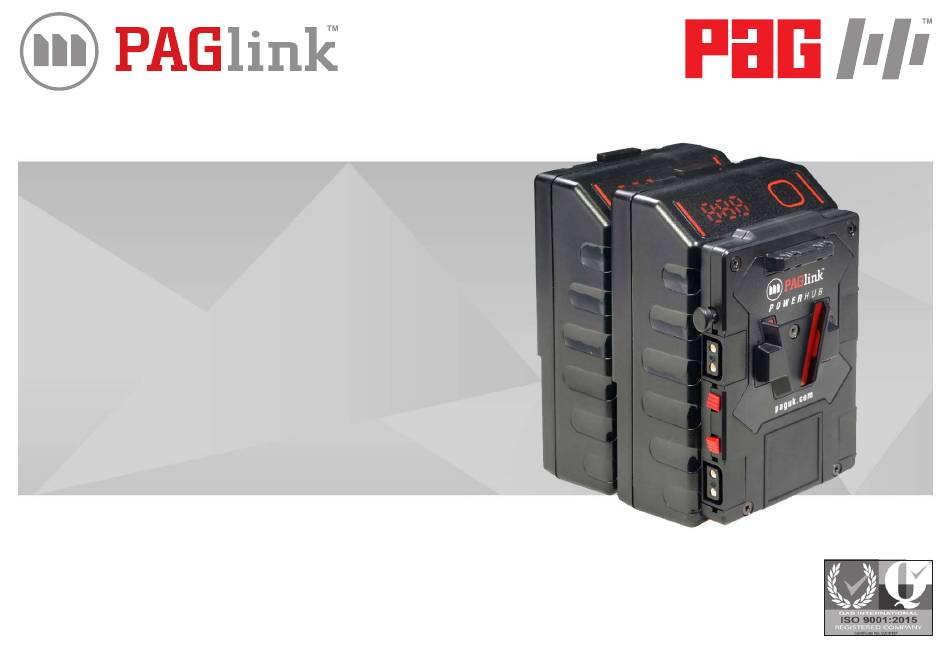

- Page 1 PowerHub V-Mount & Gold Mount User Guide U5134...
- Page 2 Disclaimer The information contained in this document is correct at the time of publication. PAG Ltd. reserves the right to change specifications or product details without notification. Changes to product details will be incorporated in the next version of the document.
-
Page 3: Table Of Contents
Contents Section Page Overview Specifications Thank you for choosing the PAGlink PowerHub. Operating Instructions Please read the important safety information Servicing and instructions before using your PowerHub. Guarantee... -
Page 4: Overview
The power can be accessed by attaching the low- profile and lightweight PAGlink PowerHub which provides the necessary • The PAGlink PowerHub is supplied with 4 D-Tap outputs, for 12V camera outputs. accessories such as an on-board light, a monitor, a transmission device and audio equipment. - Page 5 1. Overview Gold Mount PowerHub Module Module Release Button D-Tap Modules The PowerHub should be positioned between two PAGlink batteries. This enables you to hot-swap batteries for continuous power without unplugging your accessories. Front Back • The 4 D-Tap output units are interchangeable with Hirose (4-pin), Lemo •...
-
Page 6: Specifications
2. Specifications Models covered by these instructions: The Gold Mount PowerHub USB output unit is interchangeable with Model 9709 PAGlink PowerHub V-Mount other output units and can be situated in any of the 5 available Model 9712 PAGlink PowerHub Gold Mount output ports. -
Page 7: Operating Instructions
3. Operating Instructions PUSH DOWN TO CONNECT PRESS TO SLIDE RIGHT RELEASE TO CONNECT PRESS TO RELEASE To connect the V-Mount PowerHub to the battery, align the PowerHub To connect the Gold Mount PowerHub to the battery, align the studs with the face of the battery and slide the Hub downwards until it on the rear of the PowerHub with the locators on the front of the engages with a ‘click’... - Page 8 3. Operating Instructions OUTPUT RELEASE BUTTONS To remove the USB output unit from the V-Mount PowerHub, first To remove an output unit from the V-Mount PowerHub, slide the corresponding red button away from the unit and pull the unit out. remove the lower left and right output units either side of the USB To insert an output unit simply align the sprues with the slots in the unit, and then lift it out.
- Page 9 3. Operating Instructions 3.6 PowerHub V-Mount Output Units: OUTPUT UNIT D-Tap RELEASE Hirose (4-pin) BUTTON Model 9709D Model 9709H Lemo (2-pin) 2.1mm (PP90) Model 9709L Model 9709P To remove any of the output units from the Gold Mount PowerHub, first push-up and hold the central red release button on the front face, then pull out the unit you wish to remove.
- Page 10 3. Operating Instructions PowerHub Gold Mount Output Units: D-Tap Hirose (4-pin) Model 9712D Model 9712H Lemo (2-pin) 2.1mm (PP90) Model 9712L Model 9712P USB (5V 2A) Model 9712U...
-
Page 11: Servicing
Epsom Downs Metro Centre, Units 9 & 10, Waterfield, Tadworth, Surrey, KT20 5LR, United Kingdom Tel: +44 (0)20 8543 3131, Email: support@paguk.com The Americas: PAG America (part of the Carr Distribution Group) 18 Center Street, Ramsey, NJ 07446, USA Tel: +1 631 300 8215 , Email: sales@pagamerica.com... -
Page 12: Guarantee
In the event of failure of a product covered by this guarantee, PAG Limited will repair and calibrate equipment returned to an authorised Service Facility within the period of the guarantee, provided the guarantor’s examination discloses to its satisfaction the product was...
