- Page 1 DACH2040Li Lithium battery charger USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
- Page 2 INDEX 1. SYMBOLS MARKED ON THE PRODUCT .................... 2 2. GENERAL SAFETY RULES ........................2 3. GENERAL IDENTIFICATION ........................3 4. TECHNICAL DATA ..........................3 5. CHARGING OF LI-TBATERRY-PACK ....................4 6. CLEANING AND MAINTENANCE ......................5 7. DISPOSAL AND RECYCLING ........................ 5 WARRANTY ..............................
- Page 3 1. SYMBOLS MARKED ON THE PRODUCT WARNING – To reduce the risk of injuries, read the instruction manual. Only for use in dry rooms. Protection class II. T3.15A 3.15A time-lag fuse link. 2. GENERAL SAFETY RULES WARNING: Read all warnings and instructions. Failure to follow the warnings and instructions can cause electric shock, fire and / or serious injury.

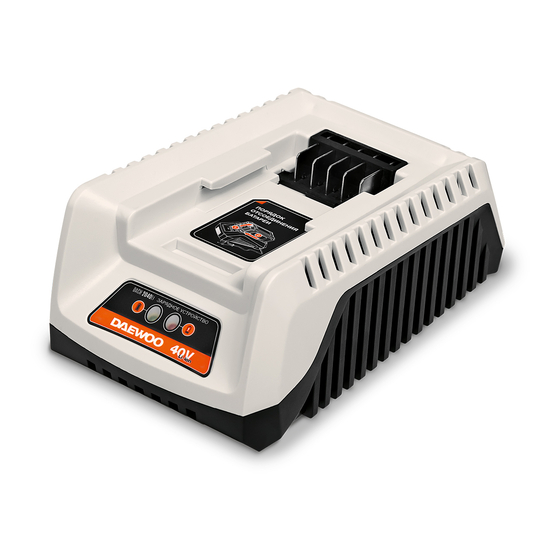

- Page 4 3. GENERAL IDENTIFICATION 1. Plug 2. Indicator(charging) 3. Indicator (fully charged) 4. Terminal contact 4. TECHNICAL DATA Battery charger Model number DACH2040Li Input 220-240VAC,50Hz,1A Output 40Vd.c,2A Allowable charging 50℃ temperature range Protection class Protection degree IPX0 Battery type Li-Ion 10 pcs or 20 pcs...
- Page 5 5. CHARGING OF LI-BATTERY-PACK Check whether the rated voltage complies with the one given on the rating label! Connect the charger plug to the power supply. The red LED is on. Then insert the battery (2) into the charger (1). Fig.2 Please refer to the following table for the meaning of LED display.
- Page 6 6. CLEANING AND MAINTENANCE Unplug before any cleaning work. The equipment must not be stored in a wet environment or in areas with corrosive gases, but in a dry place which is out of the reach of children. 6.1 CLEANING Keep the surface of the equipment clean and wipe it clean with a dry cloth.
- Page 7 Manufactured under license of Daewoo International Corporation, Korea...
