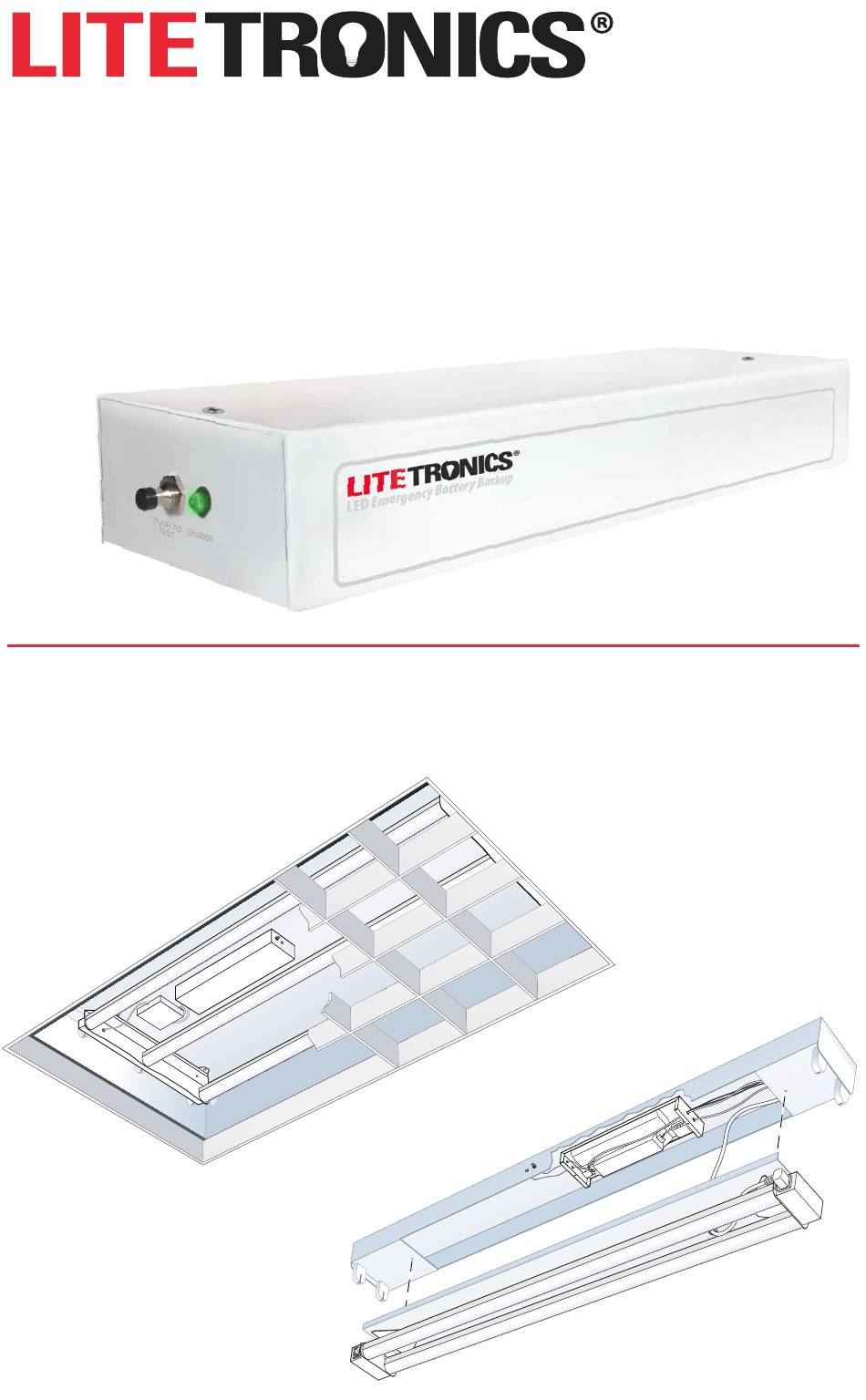

- Page 1 LED Emergency Battery Backup Installation Instructions Ordering Code: EB23UQ PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION: TROFFER INSTALLATION STRIP INSTALLATION...
-
Page 2: Introduction & Table Of Contents
• THIS PRODUCT CONTAINS A RECHARGEABLE Ni-MH BATTERY. THE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. • In all installations, with or without a dimmer, the EB23UQ wires labeled “0-10V Retrofit or Luminaire” must be connected to the Retrofit or Luminaire 0-10V wires before power is restored. -
Page 3: Available Accessories
RETROFIT COMPATABILITY TABLE EB23UQ is compatible with all Litetronics 0-10V dimmable Retrofits. It is also usable with Litetronics non-dimmable Retrofits up to 23 Watts. DIMMABLE NON-DIMMABLE DESCRIPTION WATTS DESCRIPTION WATTS ORDERING CODE ORDERING CODE RF50UQT4XXDL 0-10V 50W 3-2x4 LED RF QC... - Page 4 In factory default setting, Position 2 set to ON. You should set all dip switch positions to OFF, unless a position is specified as ON for your Retrofit model. DIP SWITCH SETUP FOR EB23UQ DIP SWITCH POSITION EMERGENCY LITETRONICS’ RETROFIT...
- Page 5 For electrical connections, refer to the wiring diagrams on pages 11,12 and 13. Note: In all installations, with or without a dimmer, the EB23UQ jacketed wires labeled “0-10V Retrofit or Luminaire“ must be connected to the Retrofit or luminaire 0-10V dimmer control wires before power is restored.
- Page 6 Section 1 EB23UQ TROFFER FIXTURE INSTALL Replace lid back on of emergency battery backup and secure with 2 screws. Replace junction box (from step 4) over remaining wires, and secure with screws. Close the cover, restore the power.
- Page 7 Section 2 EB23UQ STRIP FIXTURE INSTALL Turn off power at the circuit breaker. Open the cover of the existing fixture. Remove lid of emergency battery backup by unscrewing 2 screws. You will not need to replace the cover for this installation.
- Page 8 In factory default setting, Position 2 set to ON. You should set all dip switch positions to OFF, unless a position is specified as ON for your Retrofit model. DIP SWITCH SETUP FOR EB23UQ DIP SWITCH POSITION EMERGENCY LITETRONICS’ RETROFIT...
- Page 9 For electrical connections, refer to the wiring diagrams on pages 11,12 and 13. Note: In all installations, with or without a dimmer, the EB23UQ jacketed wires labeled “0-10V Retrofit or Luminaire“ must be connected to the Retrofit or luminaire 0-10V dimmer control wires before power is restored.
-
Page 10: Maintenance
RetroFit will operate at about 23W. 4. When AC power is restored, the emergency battery automatically returns to charge mode. 5. EB23UQ must be charged for 24 hours before 90 minute test can be completed. MAINTENANCE: Although no routine maintenance is required to keep the emergency battery backup functional, it should be checked periodically to ensure that it is working. - Page 11 Section 4 EB23UQ WIRING DIAGRAM A 0-10V LED Retrofit with dimmer. Connect wires as outlined. Follow wiring diagram A below: a. Connect purple (+) and gray(-) coming out of emergency backup to purple (+) and gray (-) from LED RetroFit using wire nuts.
- Page 12 Section 4 EB23UQ WIRING DIAGRAM B 0-10V LED Retrofit with switch and without dimmer. Connect wires as outlined. Follow wiring diagram B(i) below: a. Connect purple (+) and gray(-) coming out of emergency backup to purple (+) and gray (-) from LED RetroFit using wire nuts.
- Page 13 Section 4 EB23UQ WIRING DIAGRAM C C.(i) For wiring non-dim LED Retrofit <23W with switch. Connect wires as outlined. Follow wiring diagram C(i) below: a. Cover both the purple (+) and gray (-) coming out of emergency backup with 2 wire nuts.
- Page 14 Thank you for choosing 6969 W. 73rd Street Bedford Park, IL 60638 WWW.LITETRONICS.COM CustomerService@Litetronics.com 1-800-860-3392 vol.10 (11-21-17)
