Discovery and Explorer 2019 Assembly Instructions
Open the box. Remove any loose items (parts box
Carefully lift out of the box and place on a hard,
and manual).
flat, clean workspace.
The pedals, charger and head stem crown are
Look for the quick release axle when unpacking the
bicycle – this is cable tied to the wheel.
located inside the parts box.
Advertisement
Related Manuals for Tebco Discovery 2019
Summary of Contents for Tebco Discovery 2019
- Page 1 All manuals and user guides at all-guides.com Discovery and Explorer 2019 Assembly Instructions Open the box. Remove any loose items (parts box Carefully lift out of the box and place on a hard, and manual). flat, clean workspace. The pedals, charger and head stem crown are Look for the quick release axle when unpacking the bicycle –...
- Page 2 All manuals and user guides at all-guides.com Insert the head stem into the head tube. The head Tighten the head stem with a 6 mm allen key. You stem can be raised or lowered to suit riders can adjust the angle of the head stem with the comfort.
- Page 3 All manuals and user guides at all-guides.com Attach the remaining two screws that hold the Insert quick release spindle into the front hub and mudguard and ensure they are tight. These are adjust in readiness to insert into fork. attached using a 4 mm allen key. NOTE: Mount these on the mounting points halfway up the side of the fork to avoid clearance issues with the disc brake...
- Page 4 All manuals and user guides at all-guides.com Pump up the tyres to between 40 – 65 PSI (280 – The battery can be recharged whilst in the bike by exposing the charging port under the flap just at 460 kPa). 60 PSI (413 kPa) is perfect! the top of the battery casing.

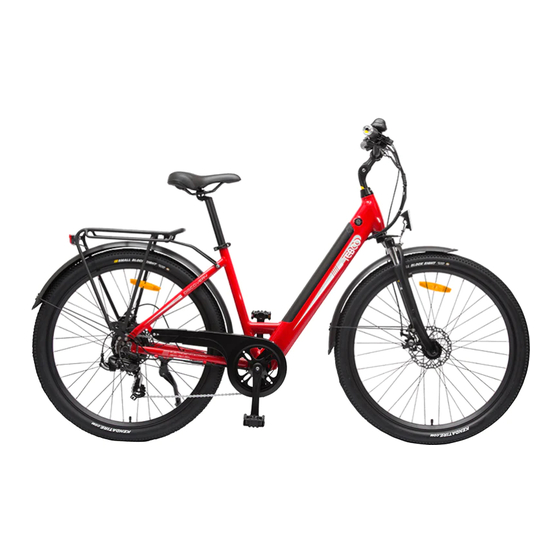

- Page 5 All manuals and user guides at all-guides.com Your new Discovery (pictured) or Explorer will now look like this and is ready to ride. For optimum performance and durability of your Discovery or Explorer we strongly suggest you have your new Discovery or Explorer assembled, thoroughly checked and adjusted by an experienced qualified Bicycle Technician.
