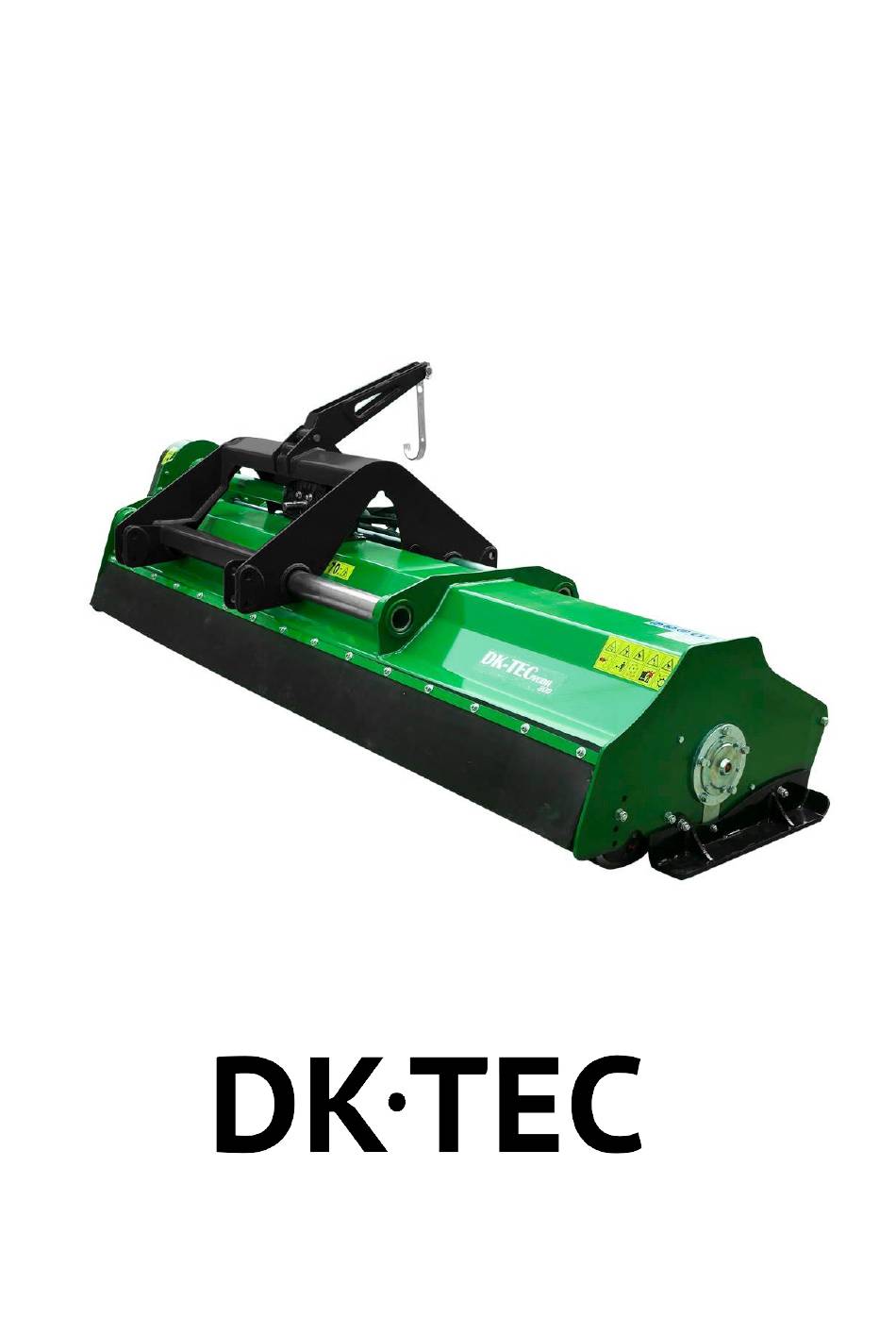

- Page 1 Flail mower User Manual original manual Model: SAVCDH ALWAYS READ INSTRUCTIONS BEFORE USING THE MACHINE DK-TEC A / S Ærøvej 8, 5800 Nyborg Phone: 66128222 Email: info @ dk-tec.dk...
- Page 2 Table of Contents 1. Introduction ..............................1 2. Security ................................ 3 3. Operation ..............................8 4. Maintenance ............................... 9...
-
Page 3: Introduction
1. Introduction Read and understand the contents of this instruction manual before using the product. Lack of safety and correct operation can cause damage to the operator or bystanders, as well as to the product. This manual will give you an overview of the safety precautions, as well as tips on how to get started with your new product. - Page 4 For horizontal axis: • If there is a need to top up oil on a horizontal shaft, use a gear oil quality 80/90...
- Page 5 You can now safely start using your new product. Sincerely, Dk-tec Spare parts Always use original spare parts, otherwise the warranty will be void! You can easily find the spare parts that fits the machine, by scanning the scan code on your machine's CE plate.
-
Page 6: Security
2. Security Attention to the usage descriptions shown in this manual is important for the best and safe operation of the flail mower. Read and understand the manual before using the machine and make sure that others who will operate the machine have also read and understood the contents. Always have the manual handy for easy reference This symbol indicates: DANGER, ATTENTION, WARNING It is used in this manual to draw your attention to... - Page 7 DK-TEC, otherwise the warranty will be void. WARNING • DK-TEC is not responsible for any damage caused by an unexpected or insufficient use of the machine. • The machine may only be used by authorized, trained persons who are aware of the potential hazards.
- Page 8 Before using the machine, it is important that you know all parts and all control functions indicated in this manual! Before using the machine, make sure that all safety devices are correctly positioned and in good condition; in case of breakage or damage to them, they must be replaced immediately.
- Page 9 DANGER! Do not modify the safety shields on the machine as this may affect safety. Use only original spare parts for your machine. DK-TEC considers itself free from any liability in the event of: •...
- Page 10 Make sure the safety labels are legible. Clean them with a cloth, water and soap if necessary. Replace the damaged labels in the same position where they were placed before. WARNING Operation and maintenance must WARNING only be carried out when the It is forbidden to approach the manual has been read and machine when it is working.
-
Page 11: Operation
3. Operation Connection to tractor Behavior on the road, steering and braking capacity are affected when the machine is connected to the tractor. The front axle of the tractor lights up in relation to the weight attached to the coupling to the lifting arm: the load on the front axle must be at least 20% of the weight of the empty tractor. -
Page 12: Maintenance
WARNING Before connecting/disconnecting the hydraulic pipes, the engine of the tractor must be stopped. Before connecting, turn off the hydraulic lines, stop the tractor engine and set both sensors in the control levels to allow the oil to flow from the system. Operating information WARNING Before operating the machine, make sure that there are no people within 70 meters of the machine. - Page 13 General maintenance Carry out maintenance on the machine when it is disconnected from the tractor and placed on a level surface. For any maintenance work, adjustment and cleaning must be carried out with the machine standing on the ground, with the tractor's engine switched off, the power disconnected, the handbrake pulled and the ignition key removed from the start panel.
- Page 14 EC - DECLARATION OF CONFORMITY Manufacturer CHANGZHOU CLOVERAGRI MACHINERY CO., LTD. 6 JIANYE ROAD, HI-TECH, CHANGZHOU, JIANGSU, PR CHINA Hereby declares that the following machine: Designation: Flail cutter Is manufactured in accordance with the following EC directive: • Machinery Directive 2006/42/EC Standards used: •...
- Page 15 Always see the latest version of the manual, as well as the spare parts list / parts list for your item www.dk-tec.dk, under the machine itself.
