- Page 1 09/2019 ATV Mower User manual Original manual Model: SP31205 ALWAYS READ INSTRUCTIONS BEFORE USING THE MACHINE DK-TEC A/S Ærøvej 8, 5800 Nyborg Phone: 66128222 E-mail: info@dk-tec.dk...
-
Page 2: Table Of Contents
Table of contents 1. Introduction ..........................1 2. General warnings ......................... 2 3. Safety labels ..........................3 4. Overview of the machine ......................4 5. Operation of the machine ......................5 6. Maintenance and storage ......................9 Specifications Working width: 112 mm Cutting height: 2.5-25 mm 3 rotors 16 HP engine... -
Page 3: Introduction
1. Getting Started Your machine is delivered ready – just refill unleaded petrol, 92/95 Starting the Machine: • Start by pressing the ON button • Open the gasoline tap • Set the choke to ON • Turn the gas by pushing the throttle •... -
Page 4: General Warnings
2. General warnings Read and understand the user manual before using the machine. The user must have read and understood the user manual as well as the safety regulations. The user must be familiar with all the features of the machine. The machine must only be operated when the user is sitting on the towing unit. -
Page 5: Safety Labels
3. Safety labels Explanation of warning signs This is a safety warning symbol. It is used to warn against potential dangers. Observe all the safety notices that follow this symbol to avoid any injury or death. DANGER – This indicates an immediate risk situation that, if not taken care, can result in injury and death. -
Page 6: Overview Of The Machine

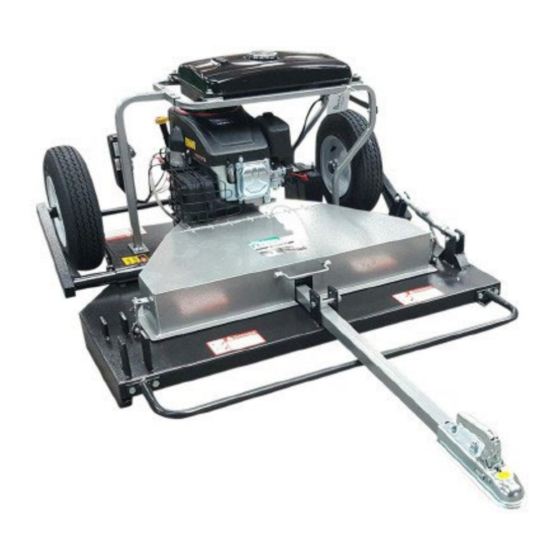

4. Overview of the machine Read the instruction manual before using the machine. Familiarize yourself with the function and location of the individual controls and adjustment options. Save this user manual for future reference. 1) Petrol Tank 13L 2) Gasoline meter. 3) Knife height adjustment. -
Page 7: Operation Of The Machine
5. Operation of the machine The engine comes with oil. Refer to the engine manual for oil type and quantity. Refill engine oil 1. The machine must stand on a level surface. 2. Remove the filler lid/dipstick to refill engine oil. 3. - Page 8 Using the machine 1. Only adults who have understood the content of these instructions should operate this machine. Never allow children to operate this machine. 2. Never this machine when there are other people or children nearby. 3. Tow this machine only after the recommended devices, such as garden tractors and ATVs. 4.
- Page 9 Connect the machine after the towing device 1. Check that the knife blades are not blocked by grass and other foreign objects. 2. Check all electrical connections for accumulated grass and other foreign objects before operation. the tires to make sure they have the right tire pressure. Check TIRE WARNING Do not pump too hard (max 30psi) and do not use worn tires or tires that cannot hold air.
- Page 10 Turn the handle counterclockwise to raise Turn the handle the wheels and, clockwise to lower the accordingly, the blades of wheels and, the knife. accordingly, the blades of the knife. WARNING Never adjust the blade height with the engine running. Knife blades will cut through the skins and legs.
-
Page 11: Maintenance And Storage
Before starting 1. Before starting, check that the mower and the towing enhed are securely interconnected. 2. Always approved safety equipment, eye and hearing protection, gloves and work wear boots when operating the machine. 3. Check that the engine is set to run at full throttle for the best cutting performance. 4. - Page 12 Replacing knife blades 1. See the spare parts drawing on DK-TEC's website. 2. Set the mower in highest position to access the blades of the knife. 3. Put under the mower to prevent the mower from falling down and injuring .
- Page 13 Zhejiang, P. R. China Hereby declares that the Following machinery: Designation: ATV Rotary Mower M d l SP31205 Manufactured in Accordance with the Following EC Directive: • Machinery Directive 2006/42/EC Standards used: ONE ISO 5395-1:2013 ONE ISO 5395-3:2013+A1:2017 ONE ISO 12100:2010, ONE...
- Page 14 Always refer to the latest version of the manual, as well as the spare parts list/parts list for your item on www.dk-tec.dk, under the machine itself.
