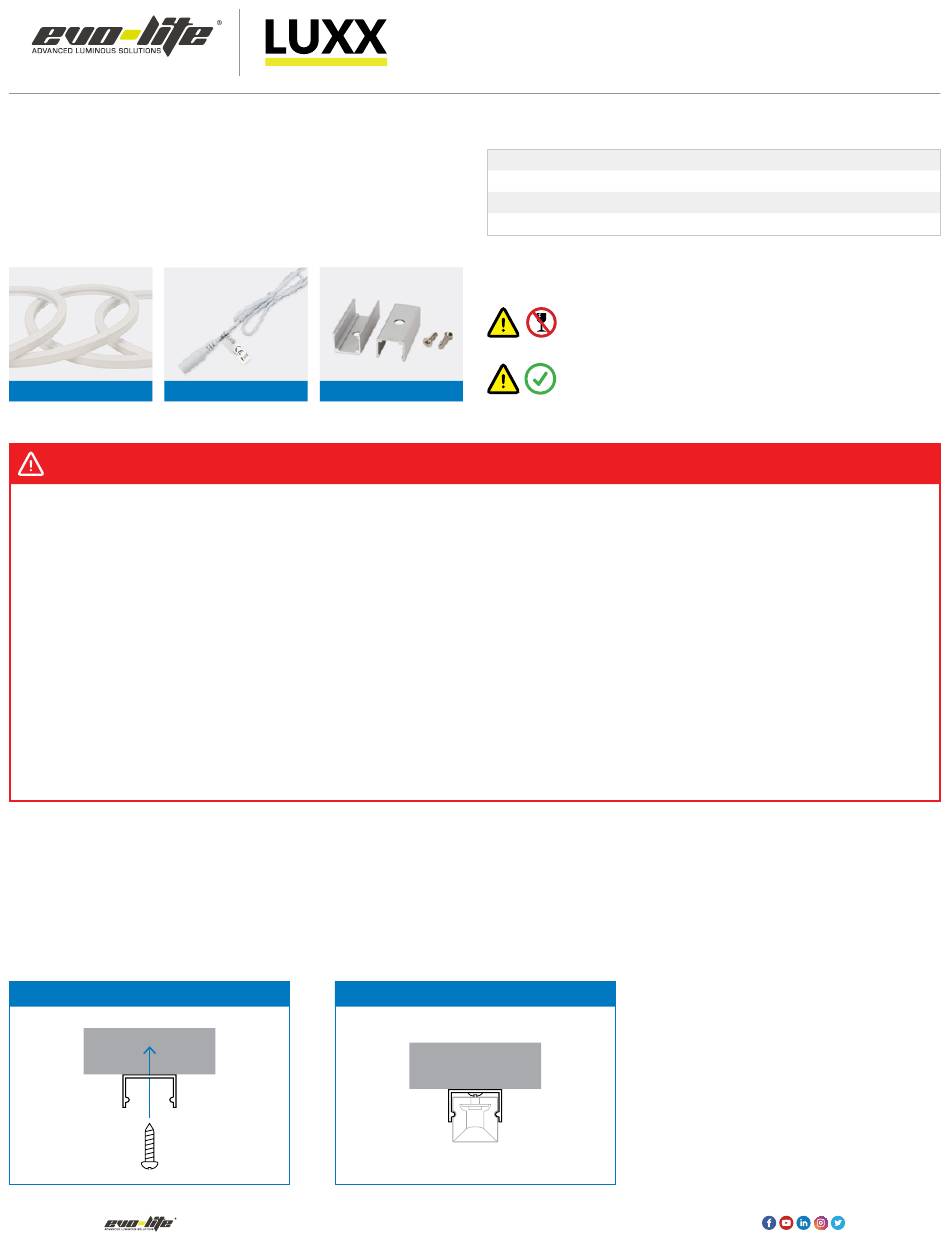

Evo-lite LUXX 1010 NEON Instruction Manual

www.evo-lite.com
1010 NEON
SHELF LIGHTING FIXTURE
LUXX // LINEAR // NEON // 1010 NEON
PRODUCT CONTENTS
Specific contents will vary based on your selected configuration.
FIXTURE ATTACHED POWER LEAD
SAFETY & COMPLIANCE INFORMATION
// WARNING: RISK OF ELECTRIC SHOCK. Disconnect power at the source before installation, maintenance, or cleaning.
// This is a 24 Volt DC product. Connect to 24VDC only. NEVER connect to AC current or any other voltage. Best practices include allowing headroom for
power supply longevity.
// To reduce the risk of fire, electric shock, or injury to persons, pay close attention to this manual and stay within its guidelines when using this
product. Save these instructions for future reference. Read and follow the product handling, installation, & integration advisory on page 4.
// Product should be installed in accordance with local/regional electrical codes and the current National Electric Code (NEC).
// Use only with UL Listed or UL Recognized Class 2, Limited Power Source (LPS) or Low Voltage Limited Energy (LVLE) power supplies. Provide the
appropriate number of 24V Class 2 circuits for your layout. Do not exceed the maximum load limit of any power supply per the manufacturer's
recommendations.
// The use of the included power connector cable is required for warranty to be valid.
// Only used the supplied mounting hardware. Do not use other tapes or adhesives to secure fixture in place.
// Use an MCB (mini circuit breaker) / fuse (slow blow) of at least 6A to prevent unwanted tripping caused by the inrush current of the LED driver.
// We advise using a zero-crossing/switching solid-state relay to reduce the inrush current peak.
// This product is designed for damp and dry locations only. Do not use this product in any location that may come into direct contact with moisture.

CLEANING THE PRODUCT

Use a clean, damp cloth and mild cleaning agent. Do not use abrasive cleaners, scouring pads, bleach, or cleaners containing chlorine as these may damage
the product

MOUNTING THE PRODUCT

The following example depicts the standard mounting method. Your setup may vary based on the specific configuration of your product.
SECURE MOUNTING CLIPS TO SURFACE
WWW.EVO-LITE.COM • INFO@EVO-LITE.COM • 1-888-887-2980 • © EVO-LITE, LLC • 6240 W 54TH AVE., ARVADA, CO 80002 • V1–1822
INSTRUCTION MANUAL
Specifications subject to change without notice. Visit us online to view the most current information.
ELECTRICAL
Input Voltage
Power Consumption
Wires
Certifications
HANDLING ADVISORY & PRE-INSTALL TESTING
MOUNTING HARDWARE
Read all instructions before beginning.
SNAP PRODUCT INTO CLIPS
24VDC
2.9W per foot (9.6W per meter)
18AWG attached power lead
cULus Listed (E501733), CE Compliant
Do not set anything on top of the product (i.e. tools, mugs,
etc.). Avoid placing product on floor or anywhere it could be
stepped on.
We advise that all products be inspected at time of delivery
and dry-fit tested for proper illumination.
