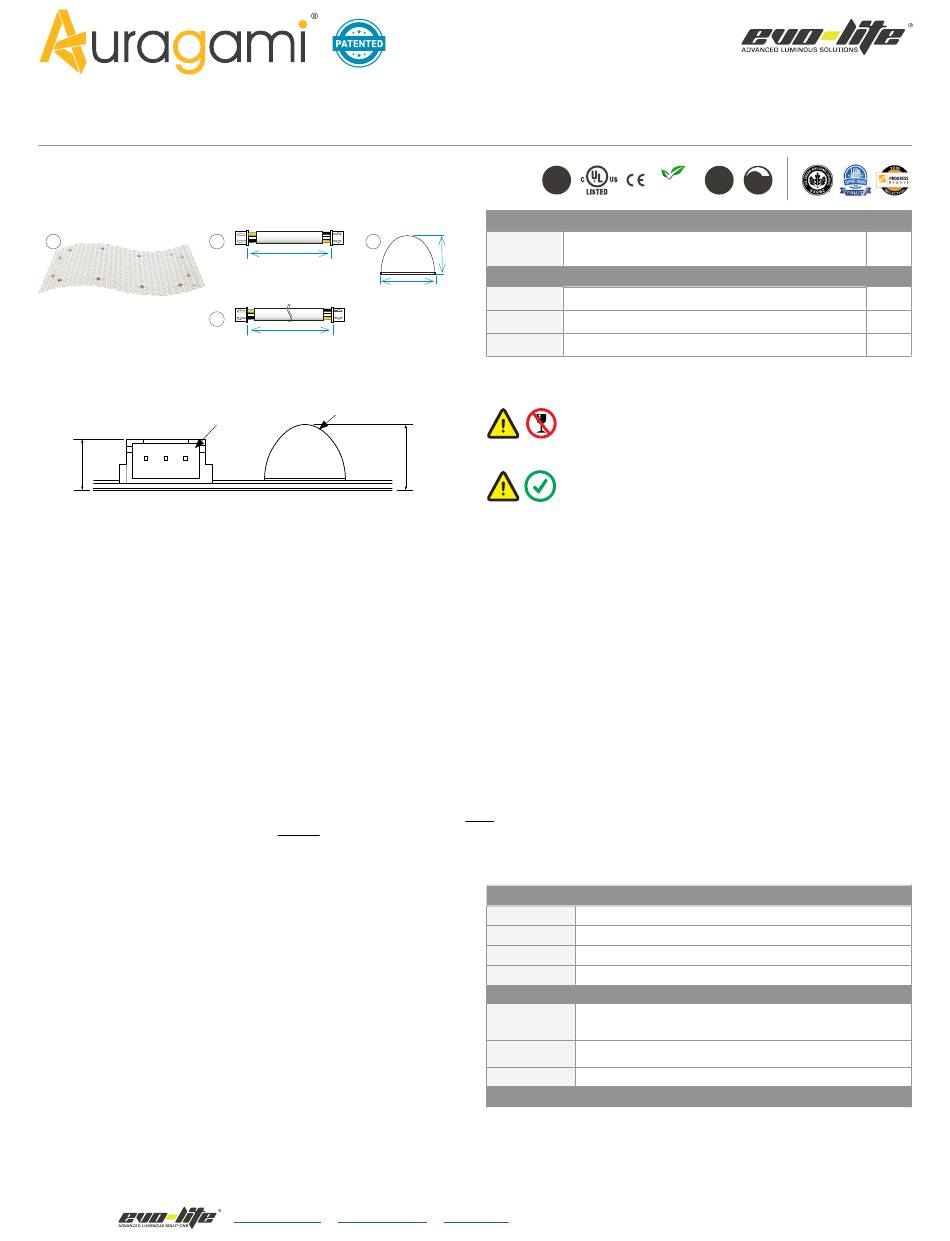

FLEXIBLE LED LIGHT SHEET | TW
ITEM #: AG1-24-TW SERIES (TUNABLE WHITE: 2700K-6500K)
CONTENTS
Each Auragami
Light Sheet package includes one sheet (A), two short wires (B),
®
two long wires (C) and eight bumpers (D).
A
AURAGAMI
®
LIGHT SHEET
PROFILES
Integrated 3-pin connection
TUNABLE WHITE LIGHT SHEETS
0.25"
(6.5mm)
including
Light Sheet
thickness
1/4" Nominal
SAFETY INFORMATION
Read all installation instructions before beginning.
// To reduce the risk of fire, electric shock or injury to persons, pay close attention to this manual and stay within its guidelines when using this
product. Save these instructions for future use.
ON PAGE 4. DISCONNECT POWER AT THE SOURCE BEFORE CUTTING OR ALTERING THE LIGHT SHEET(S) IN ANY WAY. DO NOT CONNECT
LIGHT SHEETS TO AC CURRENT. USE ONLY WITH 24V DC INPUT POWER.
// Products should be installed in accordance with these instructions, current local/regional electrical codes and/or the current National Electric
Code (NEC).
// Use only with UL Listed or UL Recognized Class 2, Limited Power Source (LPS) or LVLE (Low Voltage Limited Energy) power supplies. Provide the
appropriate number of 24V Class 2 circuits for your layout. Do not exceed the maximum load limit of any power supply per the manufacturer's
recommendations.
// Tunable White Auragami Light Sheets have been engineered to utilize proportional balancing control which maintains the 11W power
consumption rating of each sheet allowing for a total of 8 sheets to be interconnected. Operating both channels at 100% will increase the total
power consumption of each sheet to 22W which limits the total allowable number of interconnected sheets to 4 per UL and Class 2 guidelines
(96 W / 4 A at 24V DC). The Light Sheet's FPC (Flexible Printed Circuit) design and integrated connection blocks have a 96 W / 4 A at 24V DC
capacity. Do not exceed the capacity of the FPC and connections blocks in any configuration.
// This product is rated IP65 and can be used in wet locations, but not where water may accumulate.
// When using any type of mechanical fastener, make sure the fastener head does not penetrate the Auragami Light Sheet. Any penetrations of the
Light Sheet must be made inside the smaller of the two concentric circles marked on the sheet.
BEST PRACTICES
// LEDs are bright. Do not look directly at lighted sheet.
// To avoid visible brightness variances due to voltage drop, the
total distance from power source input to the farthest end of any
interconnected sheet should not exceed 6.5 feet (2 meters). See
// Dry fit the Light Sheets and their connection wires before installing
them permanently to a substrate. Always test operation before
installing the translucent (forward facing) material.
// Horizontal applications require a completely flat mounting surface.
Any deviations could result in the forward facing material(s) being
damaged.
// Never slide heavy material over the bumpers, this can cause damage
to the Light Sheet. If a forward facing material needs to be removed,
lift the material, do not drag as this can damage the Light Sheet.
// Do not fold Light Sheets back-to-back.
// Avoid installing where subject to continuous flexing.
// Application specific installation guides are available upon request.
For the latest product updates, specifications, troubleshooting, product handling, installation & integration advisories, visit www.evo-lite.com.
B
D
53 mm (2.08")
SHORT SHEET-TO-SHEET
CONNECTION WIRES
12.8 mm (0.50")
PROTECTIVE BUMPERS
C
117 mm (4.60")
* Not to Scale
LONG SHEET-TO-SHEET
CONNECTION WIRES
Bumper with silicone adhesive backing
block (TYP. of 12)
Each bumper
can support
up to 400 lbs
(199kg) TYP.
READ AND FOLLOW THE PRODUCT HANDLING, INSTALLATION & INTEGRATION ADVISORY
WWW.EVO-LITE.COM
•
INFO@EVO-LITE.COM
BACKLIGHTING // LED SHEETS // AURAGAMI
IP65
PA RT
Auragami
9 mm
A
3M
®
(0.35")
PA RT
B
20 AWG short sheet-to-sheet connection wires 2.08" (53 mm)
C
20 AWG long sheet-to-sheet connection wires 4.60" (117 mm)
D
Protective bumpers with silicone adhesive backing
BEST PRACTICES
Do not set anything on top of Light Sheets (i.e. tools, mugs, etc.).
Do not set Light Sheets on the floor where they could be stepped
upon or where anything can be dragged or set upon them. Light
0.35" (9mm)
Sheets can be damaged unless properly handled.
(when bearing
weight)
including Light
Due to possible unforeseen issues with shipping and handling,
Sheet thickness
we advise that all Light Sheets be inspected at time of delivery
3/8" Nominal
and dry-fit tested for proper illumination prior to mounting and
again before the forward facing material is installed.
For troubleshooting guidance, please visit www.evo-lite.com
SPECIFICATIONS
Input Voltage
24 Volt DC - Constant Voltage
Input Power
11 W per sheet (if both channels are balanced proportionally) (max 22 W)
Connectivity
Up to eight sheets via integrated connection blocks (not to exceed 88 W)
Certification
UL Listed (E495221), CE Compliant (EMC and LVD), RoHS Certified, IP65
Cut/Fold Line
0.660" (16.767 mm) short axis / 0.661" (16.786 mm) long axis
Spacing
1.27 ft
Coverage
per Class 2 guidelines
Operating Temp.
-30˚C (-22˚F) ~ +50°C (+122˚F)
Compatible with full range (100% - 0%), flicker-free power and control components.
Please contact Evo-Lite for optimal solutions to fit your requirements.
•
1-888-887-2980
• ©2020 EVO-LITE, LLC • 6240 W 54TH AVE., ARVADA, CO 80002 • V2–3220
INSTRUCTION MANUAL
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTIFICATION
RoHS
24V
−
+
DIMMABLE
C O M P L I A N T
D E SCR IPTIO N
Light Sheet (19.80" x 9.25" / 503.5 mm x 235 mm) with
®
adhesive backing and 12 integrated connection blocks
ACCE SSORY PACK (IN CLU D E D : AG1 -24-TW-AP)
E LECT R IC AL
P HYSI C AL
(0.118 m
) per sheet or up to 10.18 ft
2
2
P OW ER & CO N TROL S
// TW
®
QT Y
1
QT Y
2
2
8
(0.94 m
)
2
2
