T ouch
Series

Features

● Modern Touch pad design suitable for offices,
Hotels and residential buildings
● Applicable for 2 pipe
● Black LCD and Sky blue LCD display selectable
● Special colors upon request with RAL number can be provided
● Both Room and Set point Display
● Manual & Automatic Fan functions
● User setting can be kept during power off
● Fan load 5A resistive and inductive of 3A (fan load 8A resistive can
provide on request)
Specification
Power supply: 85-240VAC
Frequency:50~60Hz
Function: Cooling / Heating
Relay life:220±10%VAC , 3(5)A
Wiring Max:16AWG
Sensing element:10K(@25°C)NTC
Display accuracy:1°C , Set-point accuracy:1°C/step
Set-point range: 10-32°C(50-90°F)
Display range: 0-50°C
Protection Glass:IP 20
Operation temperature:-18~49°C
Shipping temperature:-35~65°C
Suitable System: 2-pipe Fan coil Unit
Suitable valve: 2-line / 3- line valve
Real Time Clock Display with Battery Backup
Relative humidity:10~90%
Installed on 75 x 75mm box
T ouch makes you Comfortable

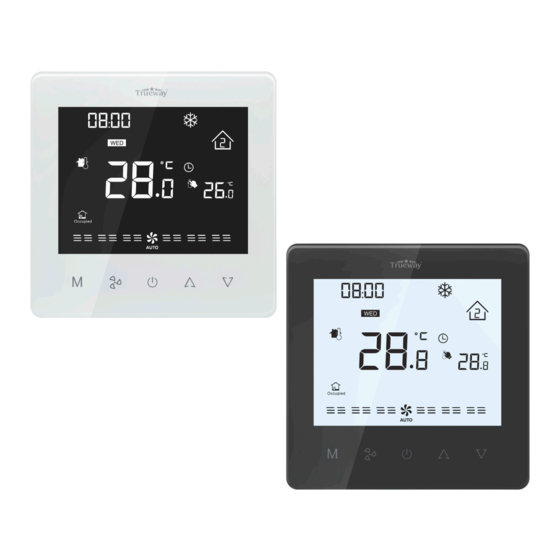

Model:TX1000ML220-V2E

Applications

TX 1000 Series is Touch Pad thermostat with many variants suitable for 2-pipe/4-pipe cooling &
heating fancoil units and DX single stage compressor units.Available in basic standalone and
Modbus communicating variants.
Options of backlight selection in sky blue and black VA Lcd.Fitted with built-in NTC10K sensor and
optional humidity sensor Several addon functions like remote sensor, key card can be choose
.
per site requirement.

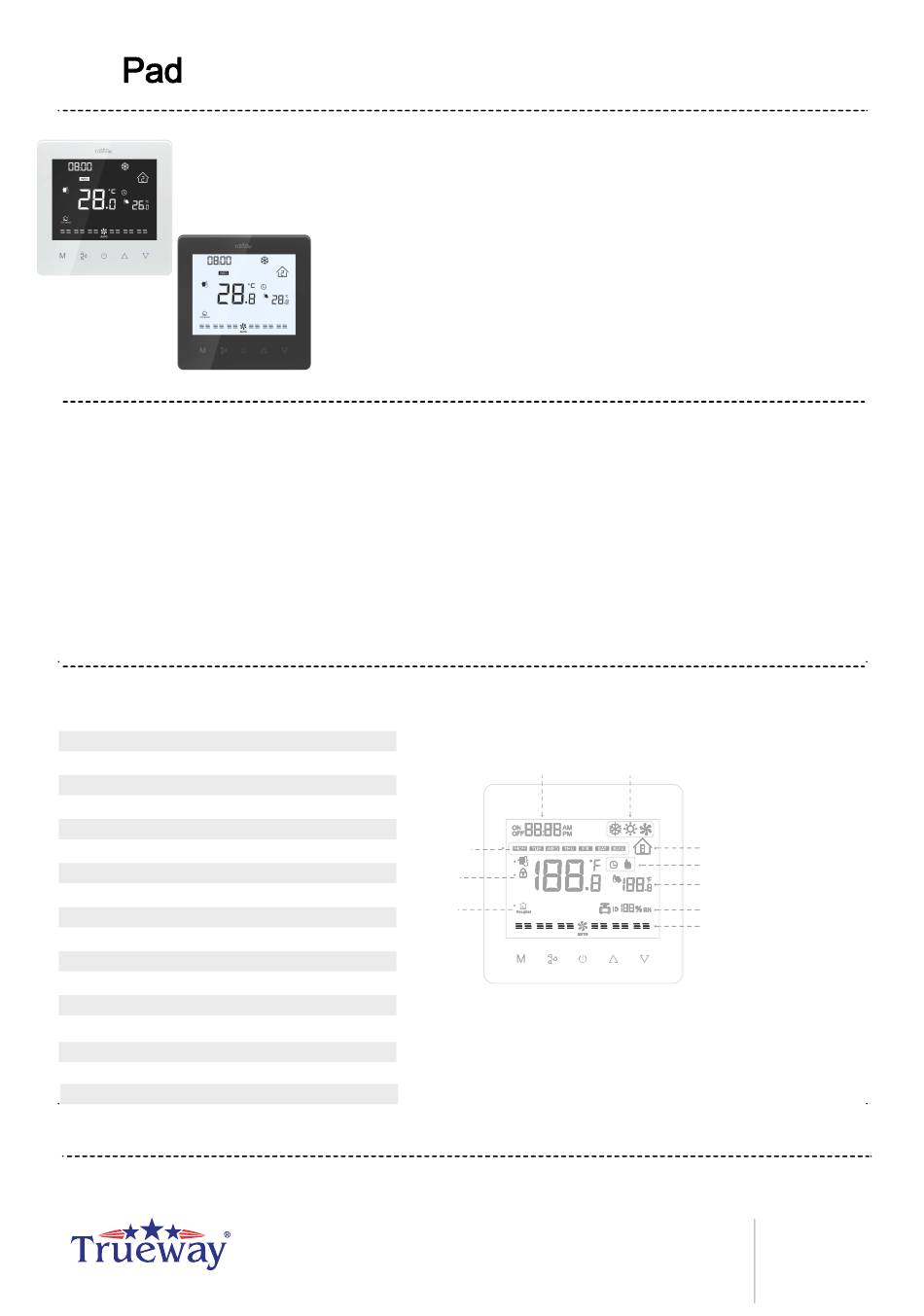

Lcd Display & Keys Description
Real Time Clock
Weekdays
Room Temp
Keycard
● Big LCD with English only display
● Regular colour available in Black, White and Silver body
● Temperature unit C & F
● EC motor variants available
● Fits in 86mm x 86mm electrical junction box
● Modbus RS485 Communicating
● Real Time clock with Infinite life battery backup
Cooling, Heating & Ventilation Mode
Mode Fan Power Up Down
Office:
Trueway Controls Hong Kong Limited
Room 1318-19 Hollywood Plaza,
610 Nathan Road, Mongkok,
Kowloon, Hong Kong.
a
s
Periods
Program/Manual Mode
Set Temp.
Valve Open/Modbus ID
Fan Speed
Factory:
4F, Building A2,
Nanxi Industrial Area,
Xiangzhou District,
Zhuhai, China.
