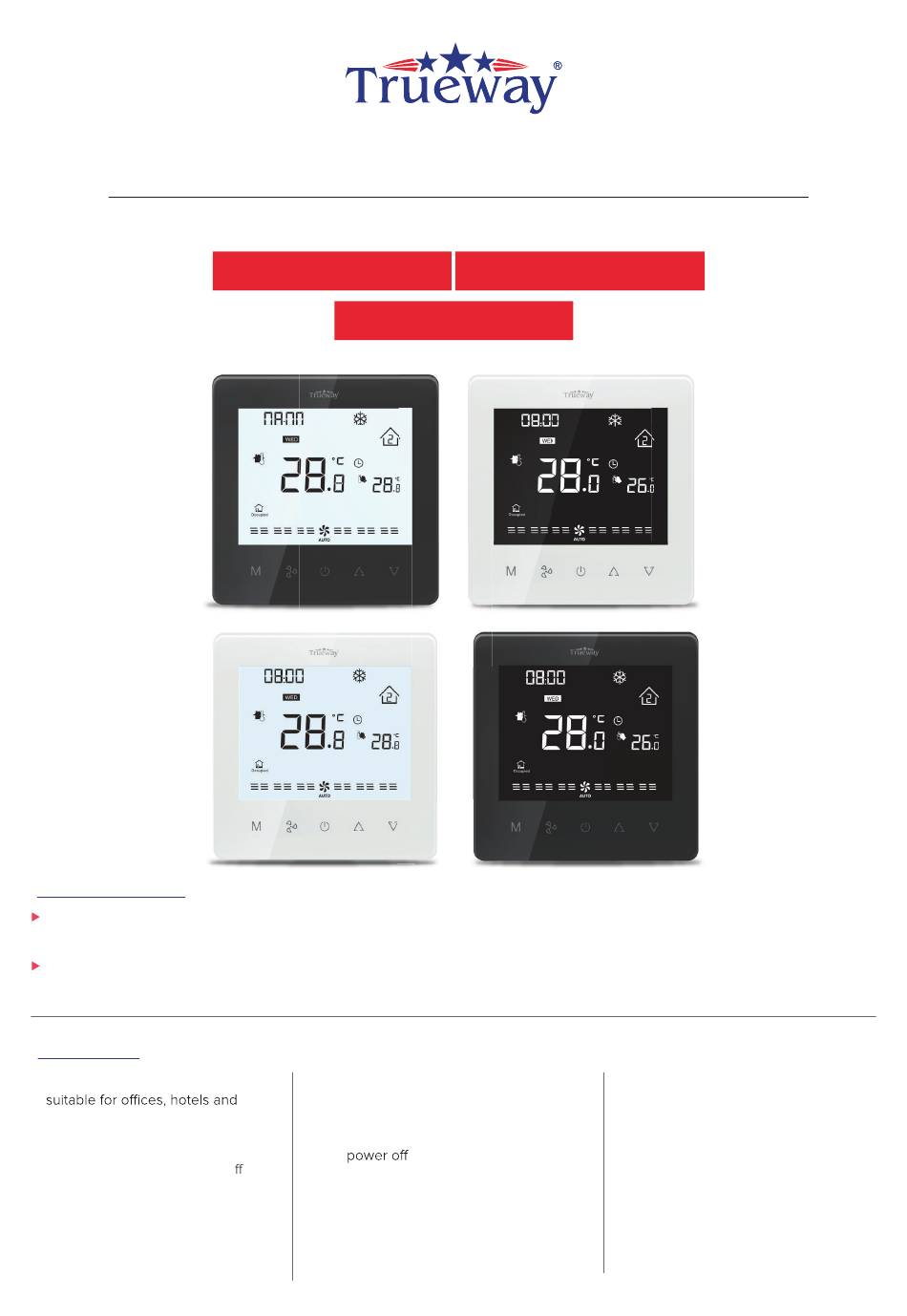

CAPACITIVE TOUCH SERIES
APPLICATIONS

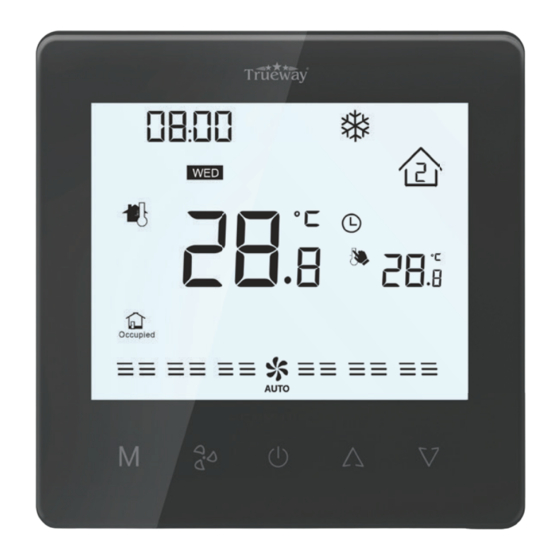

TX1000 Series is touch pad thermostat with many variants suitable for 2-pipe cooling & heating fan coil units and DX single stage
compressor units. Available in basic standalone and Modbus communicating variants.
Options of back-light selection in sky blue and black VA LCD. Fitted with built-in NTC 10K sensor and optional humidity sensor.
Several addon functions like remote sensor, key card can be chosen as per site requirements.
FEATURES
♦
Modern touch pad design
residential buildings
♦
Applicable for 2-pipe FCU
cooling&heating, Simple on-o valve
or compressor
♦
Black LCD and Sky-blue LCD
display selectable
♦
Special colors casing upon request
with RAL number can be provided
CAPACITIVE TOUCH SERIES
TX1000 OF220-V2 1CE
TX1000 OF024-V2 1C
♦
Both room and Set-point display
♦
Manual & Automatic fan functions
♦
User setting can be kept during
♦
Fan load 5A resistive and inductive
of 3A
♦
Big LCD with English display
♦
Temperature unit C&F
MODEL
TX1000 OF220-V2 1CK
1
♦
Regular color available in Black
and White body
♦
EC motor variants available
♦
Fits in 75mmx75mm electrical
junction box
♦
Real Time clock with infinite life
battery backup
Advertisement
Table of Contents
Related Manuals for Trueway TX1000 Series
Summary of Contents for Trueway TX1000 Series
- Page 1 TX1000 OF024-V2 1C APPLICATIONS TX1000 Series is touch pad thermostat with many variants suitable for 2-pipe cooling & heating fan coil units and DX single stage compressor units. Available in basic standalone and Modbus communicating variants. Options of back-light selection in sky blue and black VA LCD. Fitted with built-in NTC 10K sensor and optional humidity sensor.
-
Page 2: Specification
SPECIFICATION ♦ Set-point range: 10-32°C(50-90°F) • Display range: 0-50°C ♦ Power Supply: 85-240VAC / 24VAC• Frequency: 50~60Hz ♦ Function: Cooling/Heating ♦ Protection Glass: IP 20 • Operation Temperature: -18~49°C ♦ Relay Life: 220±10% VAC, 3(5)A, 100,000 times ♦ Shipping Temperature: -35~65°C • Suitable System: 2-pipe FCU cooling&heating, simple on-o valve or compressor. - Page 3 OPERATION INSTRUCTION ON-OFF VALVE /COMPRESSOR CONTROL POWER ON OR OFF INCREASE / DECREASE In the ON state, press UP Thermostat acquires the room temperature via its By pressing POWER button integrated sensor and maintains the set-point by DOWN to increase or decrease simple on-o output.
- Page 4 PERIODS SYMPOLS DEFAULT TIME DEFAULT TEMP. SYMPOLS DESCRIPTION 06:00AM 26 C PERIOD, WAKE UP 08:00AM 26 C PERIOD, LEAVE WORKDAYS 11:30AM 26 C PERIOD, 12:30PM 26 C BACK FOR LUNCH 17:00PM 26 C PERIOD, LEAVE 22:00PM 26 C PERIOD, 06:00AM 26 C BACK FOR DINNER WEEKEND...
- Page 5 RESERVED FOR ADDITIONAL ISU SETTINGS RESERVED FOR ADDITIONAL ISU SETTINGS RESERVED FOR ADDITIONAL ISU SETTINGS IN : INTERNAL SENSOR, OU: EXTERNAL SENSOR, IF SENSOR SELECTION CHOOSING EXTERNAL SENSOR, THE ROOM CARD FUNCTION WILL NOT BE AVAILABLE, DEFAULT IS IN ON: ON, OF: OFF, DEFAULT IS OF BEE SOUND SETTING 0: 5 WORKING DAYS AND 2 DAYS HOLIDAY A WEEK, 1: 6 PROGRAM SETTING...
-
Page 6: Wiring Diagram
WIRING DIAGRAM 85-240VAC 85-240VAC 24VAC TX1000OF220-V21CE TX1000OF220-V21CK TX1000OF024-V21C TERMINALS DESCRIPTION TERMINALS DESCRIPTION TERMINALS DESCRIPTION LIVE IN LIVE IN 24V ACTIVE HIGH SPEED FAN HIGH SPEED FAN LINE 220V LINE FOR 220V FAN MEDIUM SPEED FAN MEDIUM SPEED FAN HIGH SPEED FAN LOW SPEED FAN LOW SPEED FAN MEDIUM SPEED FAN... -
Page 7: Installation And Commissioning
The Up or Down button does not work Check whether the key pad is locked out (ISU mode item 4) T uch makes you Comfortable O ce: Factory: Trueway Controls Hong Kong Limited 4F, Building A2, Room 1318-19 Hollywood Plaza, Nanxi Industrial Area, 610 Nathan Road, Mongkok, Xiangzhou District, Kowloon, Hong Kong.
