Zencontrol zc-controller Instructions

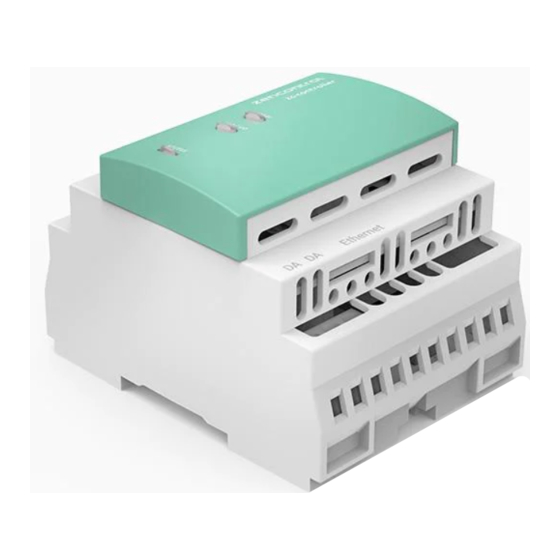

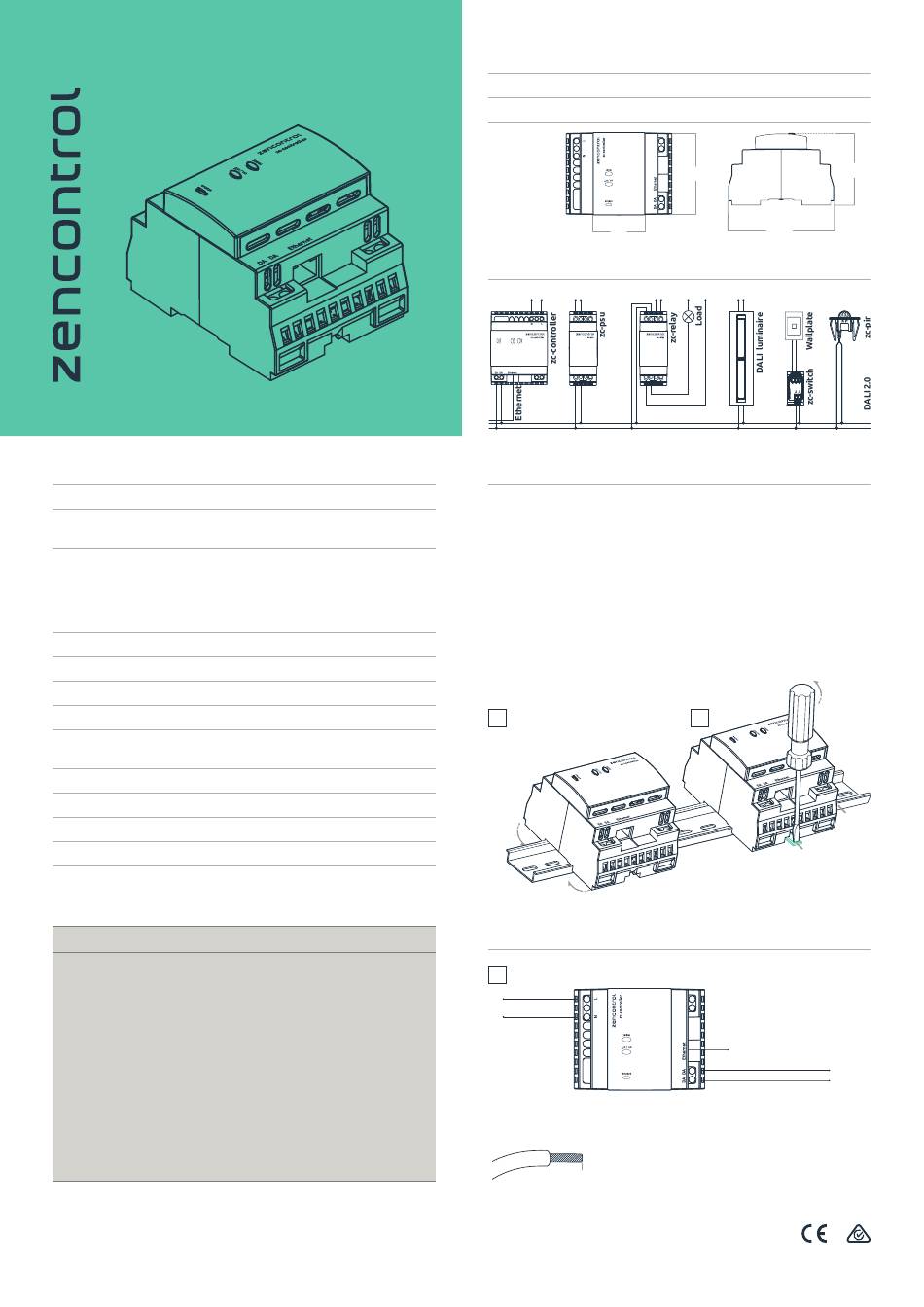

DALI-2 application controller zc-controller

Product range

Order code Description
zc-controller DALI-2 application controller and Ethernet
DALI gateway

Specifications

Supply voltage 230 V ~ 50 Hz
Control system DALI-2
DALI line current 2 mA
Ethernet 10 / 100 Ethernet port
Wiring 1 - 4 mm
Strip 6 - 7 mm
Operating temperature 0 to 45°C
Material PC
Classification Class II
Ingress protection IP20

Safety information

■ This product must only be installed by a licensed electrician.
■ Before commencing installation turn off and isolate the
electrical supply.
■ There are no user serviceable parts, attempting to service any
part of the product will void the warranty
■ DALI is not SELV and as such should be treated as LV.
■ As the installer, it is your responsibility to ensure you comply
to all relevant building and safety codes. Refer to application
standards for the relevant rules.
■ When the installation is complete, leave this manual with the
building's owner for future reference.
2

Dimensions

Mounting options DIN rail (35 mm)
Dimensions 92.5 / 72 / 62 mm
45

System overview

N L L N N L
L N DA DA N L
DA DA L' in L' out

Installation

Remove the product from the box and inspect it for any damage. If you
believe the product to be damaged or otherwise unsound, do not install
the product. Please pack it back into its box and return it to the place of
purchase for replacement.
If the product is satisfactory, proceed with the installation:
1 Ensure safety warnings are adhered to.
2 Mount the DALI application controller on DIN rail inside a mains
rated enclosure as shown in fig 1. To remove from DIN rail, release
the clip mechanism with a flat blade screw driver, as per fig 2.
3 Wire the DALI application controller as per fig 3.
1
Click*

Wiring diagram

3
L
N
Wire preparation
1 - 4 mm
2
6 - 7 mm
72
92.5
N L LN
Lʼout
Lʼin
2
Clip mechanism
10 100 Ethernet
/
DA
DA
62
DIN rail
