Zencontrol zc-blind Manual

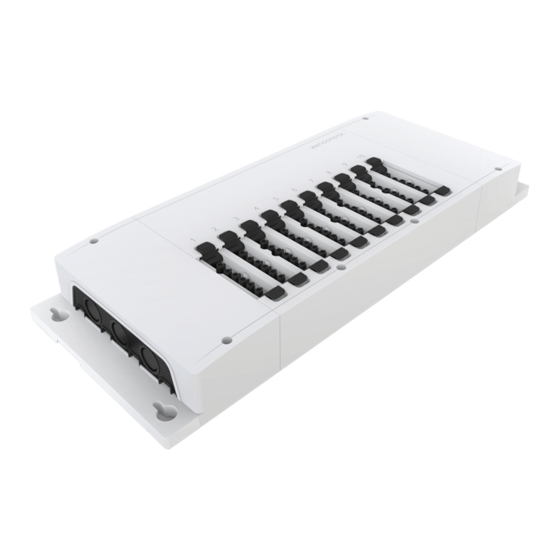

Blind controller zc-blind
Product range
Order code Description
zc-blind Full feature blind controller
Specifications
Supply voltage 230 V ~ 50 Hz
DALI supply current 235 mA
Maximum 250 mA
Output rating
Guaranteed supply 235 mA
Terminal capacity Mains 1 - 4 mm
Digital I/0 0.5 - 2.5 mm
Lighting circuits 3
Load per circuit 10 A
Motor channels 4
375 W /
Load per channel
1.6 A inductive load
Operating temperature 0 to 45°C
Material PC
Classification Class I
Safety information
■ This product must only be installed by a licensed electrician.
■ Before commencing installation or servicing turn off and isolate all
supply circuits.
■ Risk of accidental contact with live parts. Do not energise with product
open or disassembled.
■ There are no user serviceable parts, attempting to service any part of the
product will void the warranty
■ DALI is not SELV and as such should be treated as LV.
■ As the installer, it is your responsibility to ensure you comply to all
relevant building and safety codes. Refer to application standards for the
relevant rules.
■ When the installation is complete, leave this manual with the building's
owner for future reference.
■ Each circuit must be protected by a MCB rated at 16 A or less
2
2
/2 HP
1
Dimensions
Mounting options Independently mounted control for surface mounting
Mounting centres 470 / 150 mm
Dimensions 197 / 500 / 57 mm
500
470
Recommended cable clearance
Installation
Remove the product from the box and inspect it for any damage. If you
believe the product to be damaged or otherwise unsound, do not install
the product. Please pack it back into its box and return it to the place of
purchase for replacement.
If the product is satisfactory, proceed with the installation:
1 Ensure safety warnings are adhered to.
2 Mount the unit as shown in fig 1 or fig 2 using the appropriate
fasteners (not included).
3 Wire terminal I/O and secure using provided cable clamps or M20
cable glands as per the wiring diagram in fig 3.
4 Connect starter leads to output channels
per wiring diagram in fig 4-6.
1
Surface mount
M6 fastener
x4
2
Rod mount
Up to 15 mm
threaded rod
x4
57
150 197
170 mm
= 3 - 5 core
200 mm
= 6 core
57
