WorkSmart EX2655 Operating Instructions

3
5,7,8
4
9,6,7,8
5,7,8
1
Enlever toutes les pièces du carton, les organiser selon les numéros de pièce indiqués sur la liste et vérifier que les
quantités des pièces reçues sont correctes.
ÉTAPE 1 Fixer la base (1) au coussin du siège (5) avec la flèche vers l'avant du siège avec quatre vis courtes (5), quatre petite rondelles (7) et quatra
grande rondelles (8). RESSERRER COMPLÈTEMENT TOUTES LES VIS AVEC LA CLÉ ALLEN (11).
ÉTAPE 2 Fixer le support du dossier (10) au coussin du siège (5) avec quatre vis courtes (5), quatre petite rondelles (7) et quatra grande rondelles (8).
VOIR DÉTAIL A. RESSERRER COMPLÈTEMENT TOUTES LES VIS AVEC LA CLÉ ALLEN (11).
ÉTAPE 3 Aligner les trous des bras (4) sur les trous du coussin du siège (2) et trous du coussin du dossier (3), fixer les
bras (4) au coussin du siège (2) et coussin du dossier (3) avec deux vis longues (6), deux petite rondelles (7) et deux grande rondelles (8) pour chaque
bras (7). RESSERRER COMPLÈTEMENT TOUTES LES VIS AVEC LA CLÉ ALLEN (11).
ÉTAPE 4 Couvrir les trous des bras (4) avec deux bouchons en plastiques (9) pour chaque bras (4).
ATTENTION: AVANT D'UTILISER LE FAUTEUIL, S'ASSURER D'AVOIR SERRÉ COMPLÈTEMENT TOUTES LES VIS.
EX2655
CHAISE VISITEUR
INSTRUCTIONS DE MONTAGE
9,6,7,8
4
10
2
PIÈCE
1. Base . . . . . . . . . . . . . . . . . . . . . . . 1
2. Coussin du siège . . . . . . . . . . . . . . 1
3. Coussin du dossier . . . . . . . . . . . . 1
4. Bras . . . . . . . . . . . . . . . . . . . . . . . . 2
5. Vis courtes . . . . . . . . . . . . . . . . . . . 8
6. Vis longues . . . . . . . . . . . . . . . . . . 4
7. Petite rondelle . . . . . . . . . . . . . . . 12
8. Grande rondelle . . . . . . . . . . . . . . 12
9. Bouchons en Plastique . . . . . . . . . 4
10. Support du dossier (préinstallé) . . 1
11. Clé Allen (non montrée) . . . . . . . . 1
QTÉ
Limited Warranty
Work Smart chairs are warranted from the date of purchase against failure due to material and workmanship as follows:
• 15 Years on all non-moving metal parts.
• 5 Years on component parts including Control mechanisms, pneumatic cylinders, wood, plastic parts, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and
obtain return authorization. At it's option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer's component. The customer must prepay freight on any components returned to the factory. Return
freight on components still in warranty will be paid by Office Star Products.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 250 lbs. or
less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other
event beyond the control of Office Star Products. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or
consequential damages is excluded. The user assumes all risk of injury resulting from use of this product. When usage is more than 40 hours per week, a two
year warranty on all parts applies. Fabric and foam is warranted for one year. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts
are damaged or missing. Our Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail
parts@officestar.net, by Fax 1-909-930-5629, or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00
p.m. Pacific Time.
© Office Star Products Juillet 2012

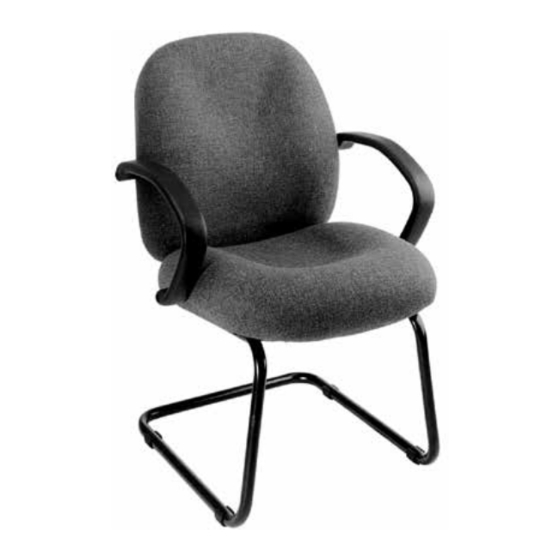

EX2655
VISITOR'S CHAIR
OPERATING INSTRUCTIONS

WarnInG

1. Use this product only one person at a time.
2. Do not use this chair unless all bolts screws and knobs are
securely tightened.
3. Check that all bolts screws and knobs are tight every three
months or as needed.
4. Dispose of packing material properly. Do not use plastic
cover as head covering. It may cause suffocation.
5. Do not use chair as a stepladder.
6. Use this chair for its intended purpose only.
7. Use mild detergent only for cleaning.
