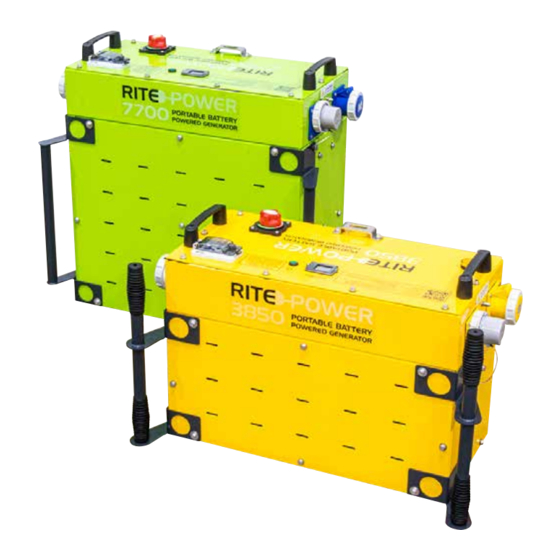

RITE-POWER 3850 / 7700 | 2500W | 110V / 230V
Operator's Manual
Product Resources
This user manual covers the Rite-Power 3850 / 7700
industrial portable power generators with the following product options:
110V | 230V | Type F | T60309 sockets
The information contained in this manual is based on products manufactured up to the time of publication.
Ritelite (Systems) Ltd reserves the right to change any of this information without notice.
No part of this manual may be reproduced in any form or by any means, electronic or mechanical without express written
permission from Ritelite (Systems) Ltd.
Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights,
and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,
which aim at improving our products or their safety standards.
Advertisement
Table of Contents
Related Manuals for Ritelite RITE-POWER 3850
Summary of Contents for Ritelite RITE-POWER 3850

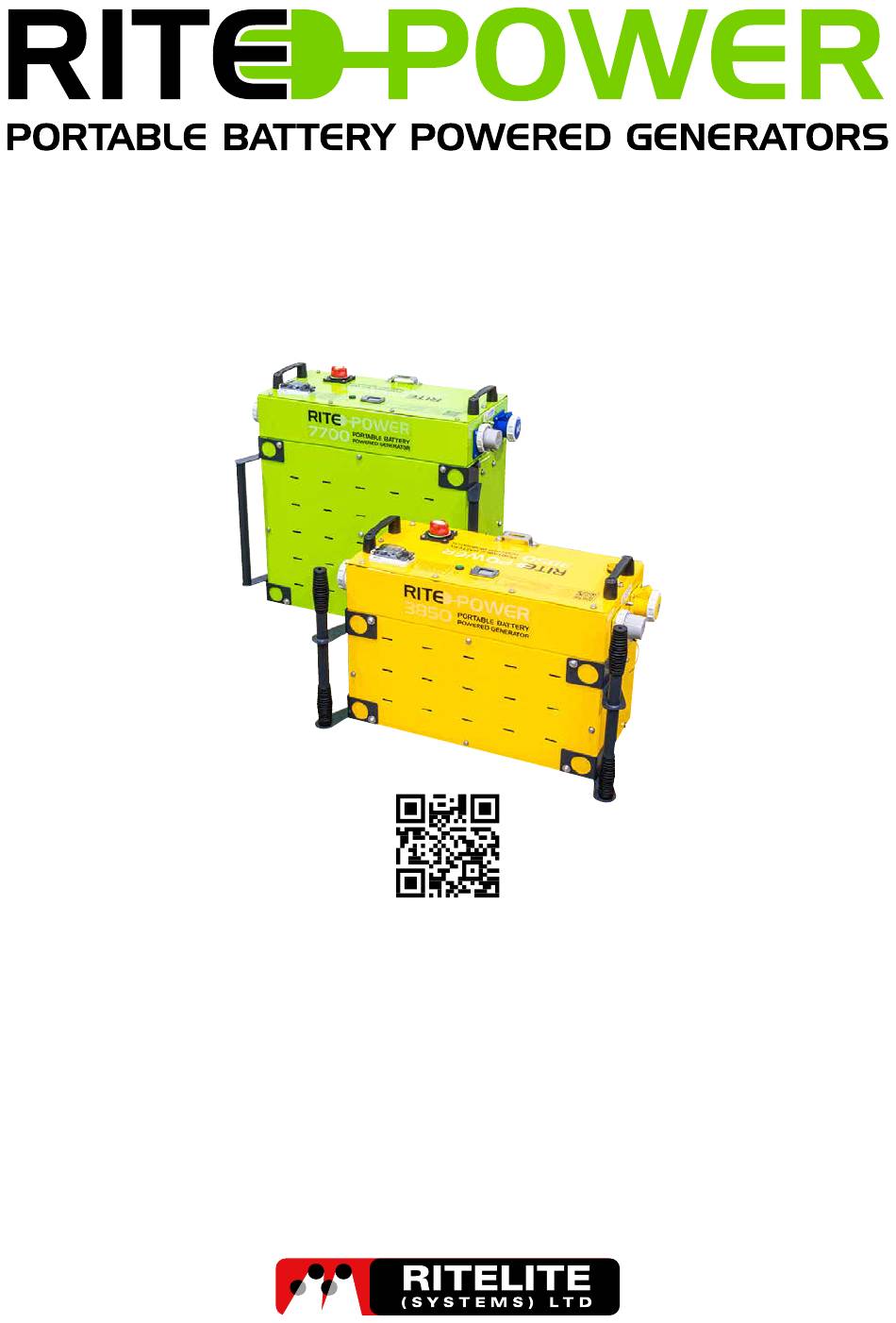

- Page 1 Ritelite (Systems) Ltd. Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights, and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,...
- Page 2 NOTE: Below is an example of a RITE-POWER data plate. You will be required to supply the products serial number when contacting Ritelite (Systems) Ltd or one of Ritelite’s approved dealers about parts and service.
-
Page 3: Table Of Contents
CONTENTS SECTION TITLE PAGE NUMBER Section 1: Introduction & applications for use Section 2 : Safety rules Section 3: Technical specifications Section 4: Setting up the RITE-POWER generator Section 5: Operating instructions 5a) Pre-operation inspection 5b) Using the RITE-POWER generator 5c) Recharging the RITE-POWER generator 5d) Optional ‘Pass through’... -
Page 4: Section 1: Introduction & Applications For Use
The RITE-POWER generator is designed for use in the following applications only. It should not be used for any other purpose. If in any doubt about applications for use, please contact either Ritelite (Systems) Ltd or Ritelite (Systems) Ltd’s distributor for more information. -
Page 5: Section 2: Safety Rules
RITE-POWER Portable Battery Powered Generator. The Manufacturer, Ritelite (Systems) Ltd cannot anticipate every possible circumstance that might involve a hazard. The warnings in this manual and on labels affixed to the RITE-POWER generator will therefore not cover every eventuality. If using a procedure or operating method not specifically recommended by the manufacturer then the user must verify that it is safe for others and that it does not make the equipment unsafe. - Page 6 Safety Data Sheet) for the product, for both use and transport/ shipping. The MSDS can be viewed the following link or by scanning the QR code on the right: https://ritelite.co.uk/product-resources/rite-power/ Do NOT allow the RITE-POWER generator to become submersed under water or allow any liquid to enter inside the product.
- Page 7 • Do NOT use if any damage to the sockets on the product occurs. • If any significant damage occurs the RITE-POWER generator must be returned to Ritelite (systems) Ltd or one of its authorized dealers for repair. • Do NOT use plugs or cables that are cut or damaged in any way.
- Page 8 • Do NOT use if there are any visible damaged parts. Contact your original point of purchase or Ritelite (Systems) Ltd to arrange for spares or repair options. • Do NOT use any type of abrasive or strong chemicals to clean the RITE-POWER generator.
-
Page 9: Section 3: Technical Specifications
Section 3: TECHNICAL SPECIFICATIONS RITE-POWER MODEL KEY SPECIFICATION 3850 watt hour battery capacity 2500W continuous power output Pure sine-wave inverter energy 3850 110V / 230V options 3 charger options 52kg Dimensions: 715 x 370 x 470mm Rated IP44 7700 watt hour battery capacity 2500W continuous power output Pure sine-wave inverter energy 110V / 230V options... - Page 10 CHARGING Via CEE 32A 2P IP67 Socket – use only the following Ritelite (Systems) Ltd model range – SLK350CH, SLK750CH & SLK1000CH. Note this socket is only for charging and must NOT be used for discharging or any other purpose than the sole connection of the SLK350CH, SLK750CH &...
- Page 11 The RITE-POWER Generator is fitted with an appropriate 110V or 230V 30mA RCBO to add an additional layer of protection over that mentioned above. However, all these protection systems can’t mitigate against all dangers and situations. Please see the HSE document 482/2 https:// www.hse.gov.uk/foi/internalops/ocs/400-499/oc482_2.htm which should be strongly considered and the appropriate risk assessments made to protect all users and those likely to come in to contact with the mains power generated by the RITE-POWER Generator.
-
Page 12: Section 4: Setting Up The Rite-Power Generator
Section 4: SETTING UP THE RITE-POWER GENERATOR Inspect the proposed area for use. An inspection of the proposed area in which to set up the RITE-POWER generator is necessary to ensure it is suitable for safe operation. This inspection should be performed by the operator prior to using the RITE-POWER generator. -
Page 13: Section 5: Operating Instructions
Maintenance and repairs can be executed only by authorised personnel. If any person maintaining or repairing the device is in any doubt, they should contact their supplying dealer or Ritelite (Systems) Ltd. - Page 14 RITE-POWER 3850 RITE-POWER 7700 Note All labels shown above show one voltage only. Labels will differ between 110V and 240V units. Units with built in chargers will have slightly different labels to include extra weight and different basic instructions for use.
-
Page 15: 5B) Using The Rite-Power Generator
5b) USING THE RITE-POWER GENERATOR Chose a suitable location, heeding the warnings in sections 4 & 5 of this manual. 1. Check there is sufficient battery capacity for the 2. If necessary, recharge the RITE-POWER task in hand, this is indicated by the display on the generator. - Page 16 5. Check the device to be powered is within the maximum constraints of the RITE-POWER generator, see technical specifications contained within this manual and on the RITE-POWER generator. Heed the notes in the section Applications and Restrictions of use with regard to Inductive, Resistive and capacitive loads and their limitations.
- Page 17 8. Certain equipment such as some lighting can be 9. In use note the fall of the battery capacity so dimmed, this can be useful to extend the runtime power isn’t suddenly lost unexpectedly. Once the RITE-POWER generator gets towards the end of the required while still potentially providing enough light for the task in hand.
-
Page 18: 5C) Recharging The Rite-Power Generator
5c) RECHARGING THE RITE-POWER GENERATOR 1. The RITE-POWER generator should be placed on charge to return it to full capacity once used. Choose a suitable location to recharge the unit away from any aforementioned hazards. Ideally the RITE-POWER generator should be charged in a cool ventilated environment. Note –... - Page 19 4. The charger will display via its LED indication once powered up, see the instruction manual for the charger for a full guide to it’s operation. ESTIMATED RECHARGE TIME TO FULL 100% 5. Check the display on the RITE-POWER generator, once the charger is connected and everything is ok the display will blink slowly as energy flows into the battery to recharge it.
-
Page 20: 5D) Optional 'Pass Through' Power Transfer System
HO7RN-F with a 2.5mm cross section cable, an earth conductor MUST be used to afford the safest setup and allow any RCBO’s to work effectively. Note – Ritelite (Systems) Ltd can supply suitable cables as required, please contact the sales office for information. - Page 21 Connect the load to the battery generator 16A outlet, if there is no power on/off switch on the connected load make sure the power is turned on/off via the supplying source, either the wall mains socket or other generator/battery generator via its RCBO/MCB switch. Do not make or break live connections using the plug or socket or this will cause arcing/burning of the contact pins.
-
Page 22: 5E) Packing Away And Transport
Observe the specific transport requirements and check the MSDS (Material Safety Data Sheet) when transporting the product by vehicle. This is available online at the following link: https://ritelite.co.uk/product-resources/rite-power/ or by scanning the following QR code: 5f) STORAGE / TRANSPORT MODE When planning to not use the RITE-POWER generator it is possible to put the unit into a storage or transport mode which reduces any unnecessary discharge of the battery. -
Page 23: Section 6: Troubleshooting
Section 6: TROUBLESHOOTING The following notes are here for help and guidance to get the best from your RITE-POWER generator. They describe possible errors/faults, what might cause them and how they are rectified. FAULT / ERROR SOLUTION No mains output from the unit Check the mains connection to the rear of the RITE-POWER generator, check the equipment to be powered is switched on, checked the equipment to be switched on works from another mains source. - Page 24 Note: The battery should always be recharged fully after every use. The system should always be powered off after every use via the button next to the display. Although the inverter will automatically shut down once a low battery voltage is detected there is still a small parasitic load from the system which will eventually discharge the battery in time if it’s not subsequently recharged.
-
Page 25: Section 7: Maintenance
The use of spares other than original parts from Ritelite (Systems) Ltd will invalidate any warranty. 7a) ADVICE ON DISPOSAL OF RITELITE PRODUCTS AT END OF LIFE For our latest advice on the disposal of Ritelite products at end of life please visit the link below. https://www.ritelite.co.uk/disposal-advice... - Page 26 The contents of this manual are subject to change without prior notice. We take no responsibility for errors or admissions. Ritelite (Systems) Ltd Meadow Park, Bourne Road, Essendine, Stamford, Lincolnshire, PE9 4LT Tel. +44 (0) 1780 758585 E-mail. sales@ritelite.co.uk www.ritelite.co.uk RI-94 V2 230306...
