- Page 1 DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 1 of 15 User Manual MODEL VCDM REV. DATE 2017. 06. 21 PULOON Technology Inc.
- Page 2 DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 2 of 15 Revision History Item Ver. DATE Name Title Details 2009.10.30 Released H.J.KIM 2010.09.09 Update Pictures Y.J.LEE 2017.06.21 Removal of cassette Serene Kim...
-
Page 3: Table Of Contents
DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 3 of 15 Contents 1 PREVIEW AND FEATURES ..............4 PREVIEW ............4 FEATURES............5 2 LOADING AND UNLOADING NOTES ..........6 PREPARING NOTES ..........6 REMOVAL OF CASH CASSETTE AND COLLECTING REJECTED NOTES 8 NOTE LOADING ........... -
Page 4: Preview And Features

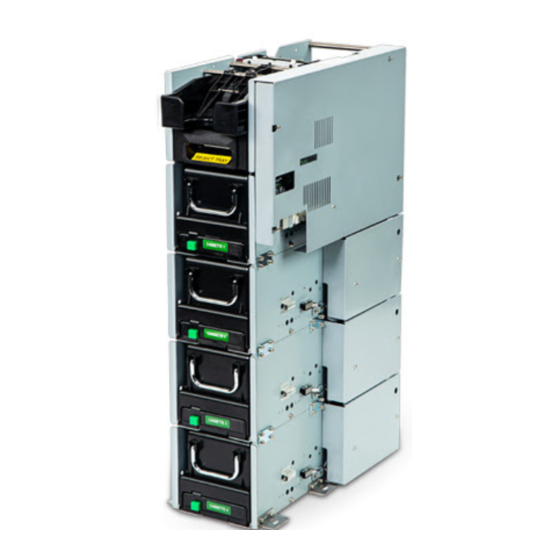

User Manual 4 of 15 PREVIEW AND FEATURES PREVIEW VCDM is the cash-dispensing unit and its main function is to dispense the exact number of banknotes in the cassette by a customer’s request and to transfer to the customer automatically. -
Page 5: Features
DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 5 of 15 FEATURES 1) To separate notes by friction roller & plate. 2) To prevent from double dispensing case by utlrasonic double detect mechanism 3) To implement mold guides and paths to minimize jam occurrence... -
Page 6: Loading And Unloading Notes
DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 6 of 15 LOADING AND UNLOADING NOTES PREPARING NOTES The number of rejects depends directly on the loading procedure and the quality of the notes. Store the notes at room temperature for at least eight hours before feeding from cash cassette. - Page 7 DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 7 of 15 - Torn, with tears exceeding 5mm or with centre edged tears - Having holes or missing sections - Crumpled or crisp and crinckled - Dog-eared, with a folded edge exceeding 5mm...
-
Page 8: Removal Of Cash Cassette And Collecting Rejected Notes
MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 8 of 15 REMOVAL OF CASH CASSETTE AND COLLECTING REJECTED NOTES The cash cassette can only be removed when the machine is NOT in operation. Please do not take out the cassette while the machine is running. If the cassette is removed during operation, it might cause a problem to the dispenser. -
Page 9: Note Loading
9 of 15 NOTE LOADING Load only notes of the correct denomination into the VCDM cash cassette. ① Open the cover top and move the pusher plate & the rear pusher - The pusher plate has to be moved to give space for the notes between the pusher plate and... - Page 10 DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 10 of 15 ② Prepare and load the notes [Warning] - Notes are sometimes thicker in certain parts. They can also be cupped in the bundle. - If the notes are turned the same way, the pile will be unequal and the notes will be difficult to dispense.
- Page 11 DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 11 of 15 - Concave bundle : To avoid dispensing problems caused by cupped bundles, turn all the bundles with the cupped side towards the dispense opening.
- Page 12 : Turn every other bundle to face the other way to make the pile the same height at both sides, as shown. It will make dispensing of notes from the VCDM easier. : Always place the bundles containing old notes into the cassette first and bundles containing new notes last.
- Page 13 ⑤ Insert the cash cassette - Using the handle, slide the cash cassette into the machine. - Make sure the cash cassette is fully inserted. - The VCDM is now ready to execute commands from host or application.
-
Page 14: Trouble Shooting
DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 14 of 15 TROUBLE SHOOTING CLEARING NOTE JAM ① Remove cash cassette (see page 8) [Important] - Always switch the power OFF before clearing jams. - All notes removed from the mechanism must be handled according to local procedures. - Page 15 DOC NO MODEL NAME REV. PAGE PL-VCDM0000-005 VCDM User Manual 15 of 15 ④ Close the path guide - Make sure that your close the path guide properly. ⑤ Remove jammed notes (using the knob) - Remove all visible jammed notes in the note transport by turning the knob wheel clockwise as shown.
