Summary of Contents for Hyundai power products HSP200

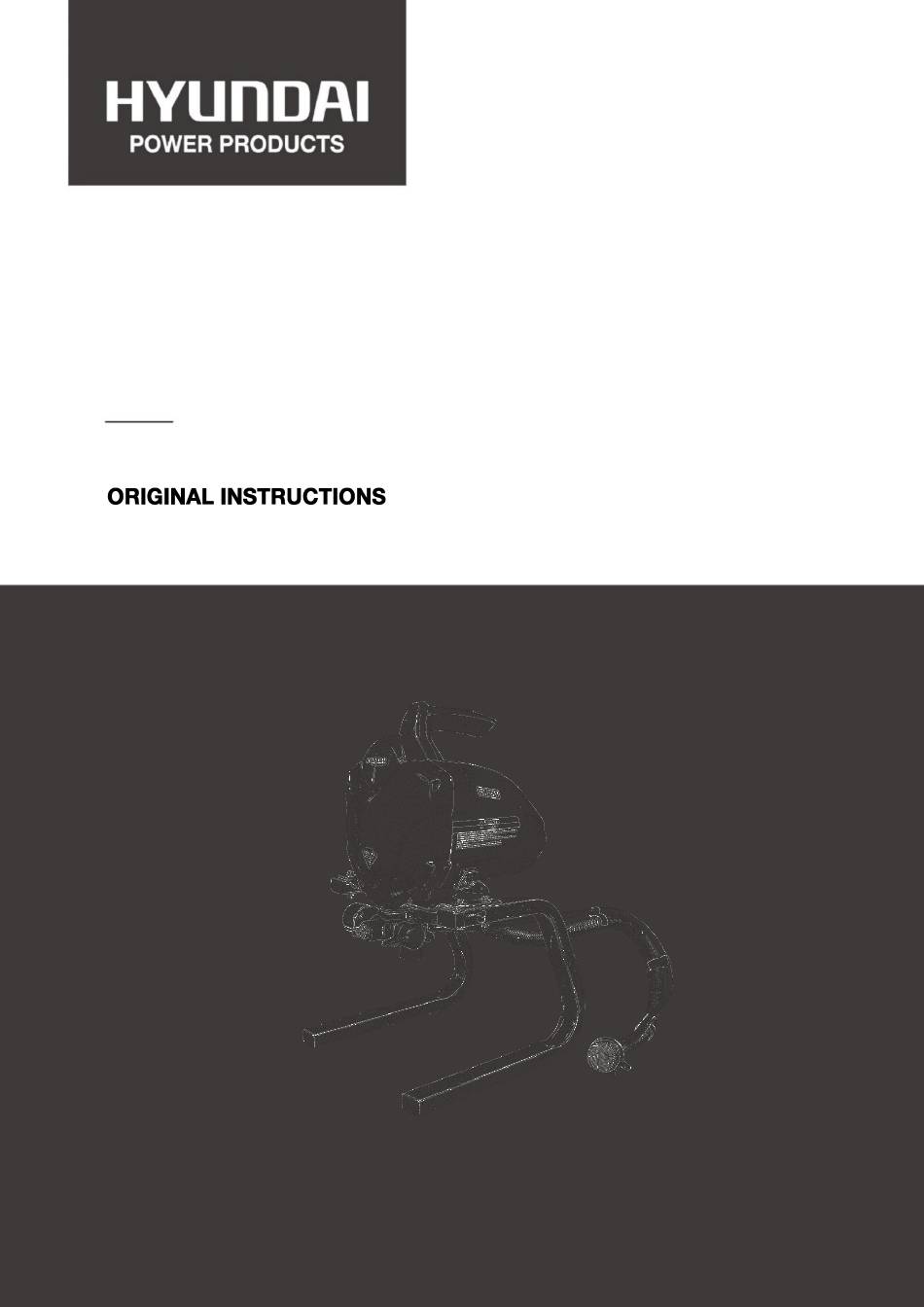

- Page 1 ORIGINAL INSTRUCTIONS HIGH PRESSURE PAINTING UNIT HSP200...
- Page 2 ORIGINAL INSTRUCTIONS CONTENTES 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. USE 4. CARE AND MAINTENANCE 5. TROUBLESHOOTING 6. EXPLODED VIEW 7. DECLARATION OF CONFORMITY CE 8. DISPOSAL...
-
Page 3: Safety Instructions
ORIGINAL INSTRUCTIONS 1. SAFETY INSTRUCTIONS Read these instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children use this machine. If you give or lend this machine, also provide this manual to the third person. Furthermore, make sure that this person uses this device only after having received the necessary instructions. - Page 4 ORIGINAL INSTRUCTIONS try to stop leaks with any part of the body. Always use the nozzle tip protection. Do not spray without the nozzle protectors in place. Use only the nozzle tips specified by the manufacturer. Be careful when cleaning and changing nozzle tips. In case the nozzle tip jams during spraying, follow the manufacturer's instructions to turn off the unit and release the pressure before removing the nozzle tip to clean it.
- Page 5 ORIGINAL INSTRUCTIONS immediately with factory spare parts only. Do not disassemble or modify the unit. Use this equipment only for its intended use. Call your distributor for additional information. Direct hoses and cables away from moving areas, sharp corners, moving parts and hot surfaces.
-
Page 6: Your Product
ORIGINAL INSTRUCTIONS 2. YOUR PRODUCT a. Description of the unit 1- Connection of the high-pressure hose 2- Pressure release lever 3- Pressure control 4- ON/OFF switch 5- Power cable 6- High-pressure gun 7- High-pressure hose 8- Connecting the paint supply 9- Carrying handle... - Page 7 ORIGINAL INSTRUCTIONS b. Technical specifications Voltage and frequency 230V˜ 50Hz Power 650-700W Operational Intensity 2.0-4.0A Maximum operating pressure 20.7mPa Maximum flow rate (LpM) 1.44 L/min Standard nozzle Φ 0.43mm (517) Paint flow connector 1/4-18NPSM Maximum pressure/length of 22.8Mpa/7.6m the hose Weight 7.5 kg Max temperature...
- Page 8 ORIGINAL INSTRUCTIONS 3. USE NOTE: the machine should always be switched off and unplugged before assembly. a. Assembly Remove the plastic red hose. Install and screw one end of the high-pressure hose onto the hose connector. Connect and screw the gun to the other end of the hose. Use a wrench (not provided) to tighten these two connections.
- Page 9 ORIGINAL INSTRUCTIONS c. Spray alignment Release the pressure and turn off the device. Align the protection horizontally to spray a horizontal pattern. Align the protection vertically to spray a vertical pattern After each alignment, tighten the protection nut again. d. Operating instructions The paint tank should be filled at least at ¾.
- Page 10 ORIGINAL INSTRUCTIONS f. Pressure release When you need to release the pressure, proceed as follows: o Release the gun trigger and turn off the machine. o Position the pressure lever in vertical position (the lever should be positioned downwards). o Pull the gun trigger to release the pressure (do this by placing the gun in a container).
-
Page 11: Care And Maintenance
ORIGINAL INSTRUCTIONS 4. CARE AND MAINTENANCE Maintain your machine regularly. A well-maintained machine provides a consistently high-quality work and extends the life of the machine. Before any servicing or maintenance, switch off and disconnect the tool. a. Cleaning Thoroughly clean equipment and accessories after use. Roll the tube after cleaning in case of damage. -
Page 12: Troubleshooting
ORIGINAL INSTRUCTIONS 5. Troubleshooting The table below can help solving a problem encountered. If this table does not solve your problem, please do not use the machine and contact your technical service for assistance. PROBLEMS POSSIBLE CAUSES SOLUTIONS Adjustment with pressure Slowly increase... -
Page 13: Exploded View
ORIGINAL INSTRUCTIONS 6. EXPLODED VIEW... - Page 14 ORIGINAL INSTRUCTIONS Description Description Description Amount ount High-pressure I 37 Paint inlet spring Insert spraying gun High pressure of the I 38 Ball Stell Dw=12.7 Copper guiding bush fluid hose Bottom frame I 39 Paint inlet Piston Screw M6*14 Paint inlet Locking sleeve Pressure relief valve I 41...
- Page 15 ORIGINAL INSTRUCTIONS Insert block I 60 Engine assembly PCB support Spot block I 61 Power switch Connection wire Plastic ring I 62 Pin 3*12 Nylon rope Sealing ring (5*1.8) I 63 Screw M 5*14 Thread 28 Pressure release pole I 64 Spring washer Pressure release I 65...
- Page 16 ORIGINAL INSTRUCTIONS 7. DECLARATION OF CONFORMITY CE BUILDER 32, rue Aristide Bergès –Z1 31270 Cugnaux - France Tel: +33 (0)5.34.508.508 Fax : +33 (0)5.34.508.509 Declares that the machinery designated below: High-pressure paint pump Model: BDSP200 Serial number: From xxxxxxxxxx to XXXXXXXX Complies with the provisions of the Directive "machinery"...
- Page 17 ORIGINAL INSTRUCTIONS 8. DISPOSAL Selective collection of electrical and electronic equipment waste. Electrical products should not be disposed of with household products. According to the European Directive 2012/19/UE for electrical and electronic equipment waste and its implementation in national law, used electrical products should be collected separately and disposed of at collection points provided for this purpose.
- Page 18 ORIGINAL INSTRUCTIONS...
