Summary of Contents for Rohde & Schwarz FS-SNS18

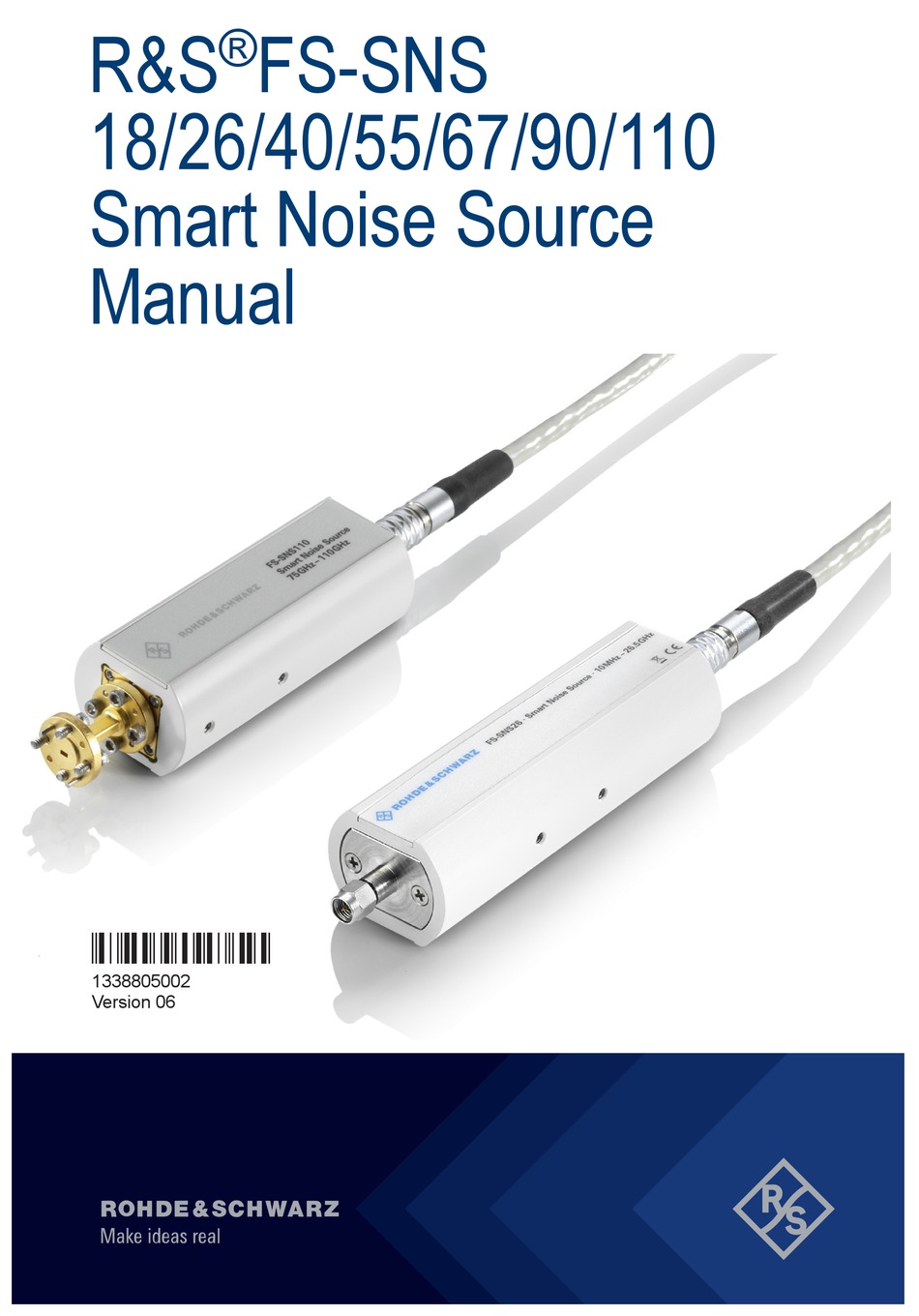

- Page 1 ® R&S FS-SNS 18/26/40/55/67/90/110 Smart Noise Source Manual (=VÞÀ2) 1338805002 Version 06...
- Page 2 The R&S FS-SNS smart noise sources are especially designed for Rohde & Schwarz signal and spectrum analyzer families. This manual applies to the following devices: Product name Order number R&S FS-SNS18 1338.8008.18 R&S FS-SNS26 1338.8008.26 R&S FS-SNS40 1338.8008.40 R&S FS-SNS55 1338.8008.55...
- Page 3 ● Ensure the instrument that you want to connect the R&S ® FS-SNS to has an appropriate RF input connector. ® – R&S FS-SNS18: SMA male ® – R&S FS-SNS26: APC 3.5 mm male (compatible with SMA) ® – R&S FS-SNS40: 2.92 mm male (compatible with SMA)
- Page 4 ® Measurement setup R&S FS-SNS 18/26/40/55/67/90/110 Setup for Lemosa noise source control connector For instruments with the Lemosa noise source control connector, use the SNSCABLE. Lemosa Noise source control Input SNSCABLE RF cable Figure 3-1: Setup with SNSCABLE Setup with BNC connector or Lemosa noise source control connector with- out middle pin For instruments with a BNC connector or a Lemosa noise source con- trol connector without the middle pin, use the SNSCABLE-Y.
- Page 5 ® Measurement setup R&S FS-SNS 18/26/40/55/67/90/110 Adapting waveguide to coax connectors ® The R&S FS-SNS90 and 110 models have waveguide connectors for output. If the DUT or the other connected devices have a coax connector, an adapter is required. Lemosa IF IN / Noise source...
- Page 6 ® Spare parts R&S FS-SNS 18/26/40/55/67/90/110 Lemosa IF IN / Noise source Input control Ext. mixer (e.g. FS-Z110) Noise source Preamplifier (e.g. FS-SNS110) Figure 3-4: Setup using a preamplifier and external mixer Spare parts Article Order number DX SNSCABLE 1338.8020.00 DX SNSCABLE-Y 1338.8066.00 ©...
