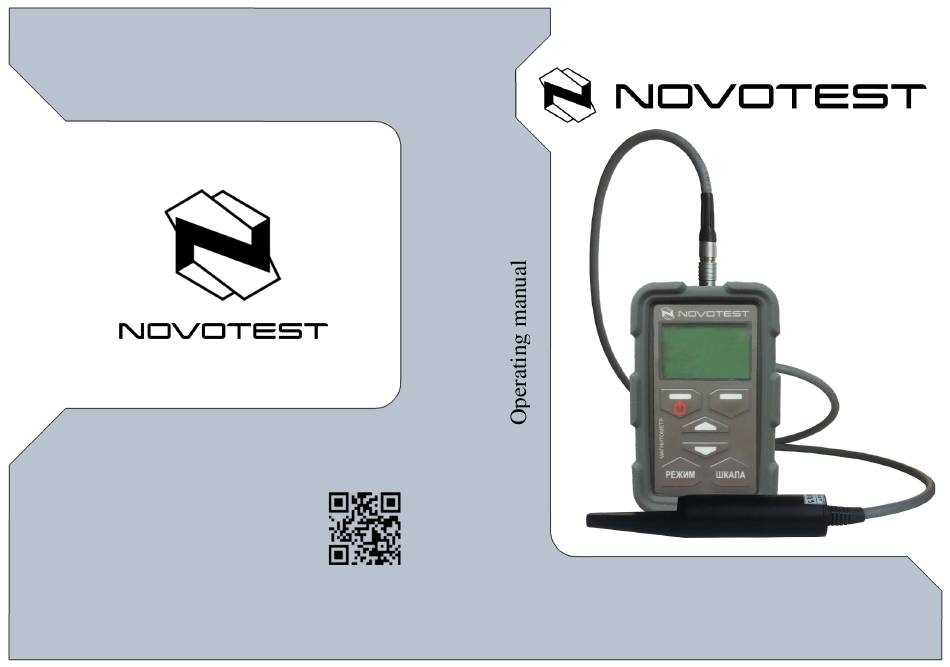

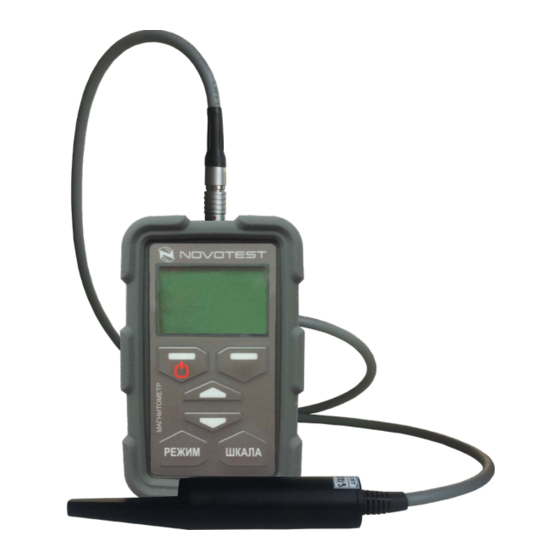

- Page 1 NOVOTEST Phone: +38-067-593-59-77 Email: sales@novotest.biz Web: http://novotest.biz Magnetometer NOVOTEST MF-1M...
-
Page 2: Table Of Contents
Operating manual Magnetometer NOVOTEST MF-1M CONTENTS 1 Description and operation of the device and its components..............5 1.1 Purpose ............................5 1.2 Specifications ..........................5 1.3 Package ............................5 1.4 Composition ............................ 6 1.5 Design and operation ........................7 1.6 Hall probe ............................7 1.7 Measurement instruments and accessories .................. - Page 3 Operating manual Magnetometer NOVOTEST MF-1M 3.2.3 Visual inspection ........................19 3.2.4 Testing ............................ 19 3.2.5 Measurement error definition....................19 3.2.6 Documentation of verification ....................19 3.3 Warranty obligations ........................19 3.3.1 Basic warranty........................19 3.3.2 Extended warranty ......................... 20 3.3.3 Warranty for repaired or replaced parts ................. 20 3.3.4 Wearing parts .........................
- Page 4 Magnetometer NOVOTEST MF-1M Caution! Please read this operating manual carefully before using the Magnetometer NOVOTEST MF-1M. This operating manual (hereinafter referred to as OM) includes the information required to inform user about the performance and operating procedure of the product, magnetometer NOVOTEST MF- 1M (hereinafter referred to as the device or magnetometer).
-
Page 5: Description And Operation Of The Device And Its Components
1 DESCRIPTION AND OPERATION OF THE DEVICE AND ITS COMPONENTS 1.1 Purpose Magnetometer (teslameter) NOVOTEST MF-1M is designed to measure magnetic field strength (magnetic induction). The device is used in industrial and construction fields. The magnetometer is designed to test the following parameters: −... -
Page 6: Composition
Protective silicone case ......................1 pc. Charger ............................ 1 pc. Operating manual RDC.OD.MF-1M.000 OM ................ 1 pc. Transport packaging ........................ 1 pc. * By request of the customer, the package can be added by extra equipment or parts. The exact information about the scope of delivery is specified in the datasheet. -
Page 7: Design And Operation
Х – linear Hall element; ADC – analog-to-digital converter; M – microprocessor controller; G – graphic display; PS – power source. Figure 1.2 – Schematic stricture of magnetometer NOVOTEST MF-1M The Hall element converts the magnitude of the magnetic field into a voltage which is fed to the input of analog-to-digital converter “ADC”. -
Page 8: Measurement Instruments And Accessories
Operating manual Magnetometer NOVOTEST MF-1M Figure 1.3 – The readings depending on the passing of the magnetic induction vector through the Hall probe. The positive reading of the magnetometer means that the normal component of the induction vector of a constant magnetic field at the measurement point goes outside the working surface of the magnetic field transducer. -
Page 9: Intended Use
Operating manual Magnetometer NOVOTEST MF-1M 2 INTENDED USE 2.1 Operating restrictions The device should be operated away from direct exposure to dust and aggressive environments with consideration of the parameters of the test objects under the agreed technical requirements and used within its specifications. -
Page 10: Hall Probe Connection
Operating manual Magnetometer NOVOTEST MF-1M 2.2.4 Hall probe connection Connect the Hall probe via the connecting cable to the probe socket on the processing unit. Connect the connecting cable so that the red dot on the plug and the connector are aligned (fig. 2.2). -
Page 11: Operation
Operating manual Magnetometer NOVOTEST MF-1M Note – Connection and disconnection from the processing unit are allowed only with the magnetometer powered on. 2.3 Operation 2.3.1 Turning on Turning on is performed by pressing “ ” until a short screensaver appears on the graphic display (fig. -
Page 12: Measurement Modes
Operating manual Magnetometer NOVOTEST MF-1M Note – The CODE scale is used for calibration by the manufacturer. Figure 2.8 – Selection of measurement units Select the needed measurement unit by “ ” and “ ” and press “ ”. The selected measurement unit is shown on the graphic display of the device. -
Page 13: Measurement
Operating manual Magnetometer NOVOTEST MF-1M Figure 2.11 – The graphic scheme of the device operation The threshold level and range are set in the “Settings” section. If the threshold of the measured value is exceeded, the sound signal is generated (the signal can be disabled in the “Settings” section). -
Page 14: Archive" Section
Operating manual Magnetometer NOVOTEST MF-1M Figure 2.15 – “Calibration” section The current value of the code The calculated value of the function (polynomial) Figure 2.16 – “Calibration” section A magnetometer shall be calibrated by four points: 0 G, + 999 G, -999 G, and 500 G with the magnetic inductometer SH1-1: 1. -
Page 15: Settings" Section
Operating manual Magnetometer NOVOTEST MF-1M 2.3.6 “Settings” section When the “Setting” section is selected, the device goes to its settings (fig. 2.19). Figure 2.19 – “Settings” section 2.3.6.2 The device settings This menu features the setting of the following parameters (fig. 2.20): −... - Page 16 Operating manual Magnetometer NOVOTEST MF-1M Figure 2.22 – Calibration backup It is recommended to back up the calibration before calibrating the factory settings of the probe. This option allows for recovering the calibration after incorrect settings. 2.3.7.2 Downloading backups The saved calibrations can be downloaded from the Hall probe memory. This function is needed to recover the right calibration in the event of incorrect settings of the probe.
-
Page 17: Information
Operating manual Magnetometer NOVOTEST MF-1M Figure 2.26 – Viewing of the memory stare 2.3.8 Information In this menu section (fig. 2.27) user can view the information about the device, manufacturer and representative offices around the world. The “INFORMATION” mode also allows viewing the serial numbers of the device and the probe, the firmware version of the magnetometer and the number of measurements, for this the needed bookmark should be opened using the keys “... -
Page 18: Maintenance Of The Device And Its Components
The verification technique hereinafter referred to as verification, applies to the Magnetometer NOVOTEST MF-1M and stipulates the methods and accessories of primary and periodic verification. The device shall be verified by the State metrology service or other authorized authorities and organizations with the right of verification. -
Page 19: Visual Inspection
3.2.4 Testing The device shall be prepared for operation in line with c. 2.2 of RDC.OD.MF-1M.000.OM. The control buttons of the device and switching of the measurement modes must be checked. 3.2.5 Measurement error definition... -
Page 20: Extended Warranty
The warranty on batteries and chargers is provided by the manufacturers of batteries and chargers, and therefore they are not covered by the NOVOTEST warranty. However, the authorized dealer of NOVOTEST will assist you in making warranty claims regarding batteries, batteries, and chargers. -
Page 21: Warranty Restrictions
Operating manual Magnetometer NOVOTEST MF-1M − If any defect or fault is found, submit the device to NOVOTEST or the authorized dealer of NOVOTEST for a warranty repair as soon as possible. This can minimize the repair required for the device. -
Page 22: Maintenance
So, always make sure that the authorized service center of NOVOTEST puts a stamp in the right place under the record about the performed procedure. -
Page 23: Running Repairs
Operating manual Magnetometer NOVOTEST MF-1M 4 RUNNING REPAIRS By design and operating conditions, the device belongs to the devices to be repaired by specialized companies or a manufacturer. To submit the device to the service center (SC) for warranty service, the datasheet of the device must be submitted. - Page 24 Operating manual Magnetometer NOVOTEST MF-1M The content of precious metals in the device components (electronic boards, connectors, etc.) is very low, so recycling is not expedient. NOTES __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________...
