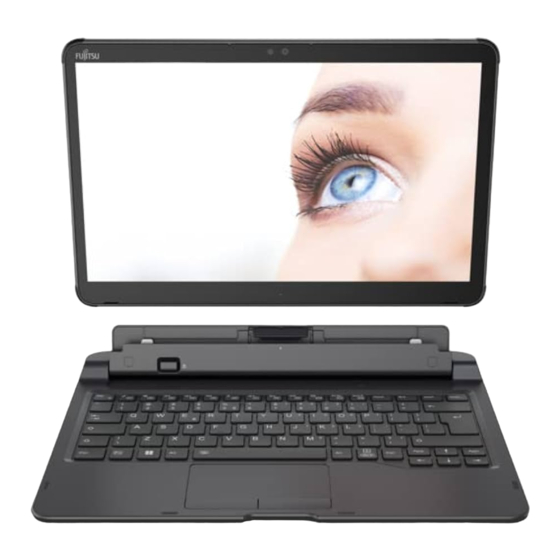

System Operating manual FUJITSU Tablet STYLISTIC Q7312...
Page 2
Internet at: "http://www.fujitsu.com/fts/" You can find driver updates at: "http://support.ts.fujitsu.com/download" Should you have any technical questions, please contact: • our Hotline/Service Desk ("http://support.ts.fujitsu.com/contact/servicedesk") • Your sales partner • Your sales office We hope you enjoy working with your new Fujitsu system!
Page 5
FUJITSU Tablet STYLISTIC Q7312 Operating manual Innovative technology Ports and controls Important notes First-time setup of your device Working with the Tablet PC Accessories for your Tablet PC (optional) Security functions Connecting external devices Settings in BIOS Setup Utility Troubleshooting and tips Technical data Manufacturer’s notes...
Page 6
Information on the product description meets the design specifications of Fujitsu and is provided for comparison purposes. Several factors may cause the actual results to differ. Technical data is subject to change without prior notification. Fujitsu rejects any responsibility with regard to technical or editorial mistakes or omissions.
The Windows drivers for your device can be found on our Internet site. The factory installation of your device does not support any other operating system. Fujitsu Technology Solutions accepts no liability whatsoever if any other operating system is used.
"Safety information" • cross-references to an external source, e.g. a web address: For more information, go to "http://www.fujitsu.com/fts/" • Names of CDs, DVDs and titles or designations for other materials, e.g.: "CD/DVD Drivers & Utilities" or "Safety/Regulations" manual indicates a key on the keyboard, e.g:...
9 = Ambient light sensor 3 = Camera 10 = Slots for SIM card (depending on 4 = Infrared camera configuration) and memory card 5 = Camera LED (protected by cover) 6 = Power-on indicator 11 = Docking port 7 = Loudspeaker Fujitsu...
Page 14
1 = Security Lock device 4 = SmartCard reader (configuration dependent) 2 = Combined Headphone and Microphone Port (protected by cover) 5 = Eyelet for the optional pen cord 3 = USB 2.0 port (USB Type-A, protected 6 = Pen slot by cover) Fujitsu...
Page 15
2 = Volume up button 4 = Shortcut button Bottom The card slots are protected by a cover. 1 = Mechanical fixture for keyboard 3 = SIM card slot (configuration-dependent) dock/tablet stand 4 = Memory card slot 2 = Docking port Fujitsu...
Page 16
Ports and controls Rear 1 2 3 1 = Camera 4 = Fingerprint scanner (depending on the configuration) 2 = Camera light 3 = Camera LED Fujitsu...
(e.g. petrol station, paintshops), as the transmitted radio waves can cause an explosion or a fire. For information on how to switch wireless components on and off, see chapter "Switching the wireless components on and off", Page Fujitsu...
You will then be able to work for longer before having to recharge the battery. Power efficiency is increased and environmental pollution reduced. You save money and help protect the environment. Energy saving under Windows ► Make use of the power management features (see ""Using the power-management features", Page 37"). Fujitsu...
► Unplug the mains adapter and all external devices from the power socket. ► Disconnect the mains adapter cable and the data cables for all external devices. ► To protect against damaging jolts and bumps, use a Tablet PC carrying case to transport your Tablet PC. Fujitsu...
("Switch the battery off and on", Page 36). ► Allow the Tablet PC to dry for at least 24 hours. ► If the Tablet PC cannot be switched on after reconnecting the power adapter, please contact our Hotline/Service desk. Fujitsu...
► Unpack all the individual parts. Packaging Transport ► Check your device for any visible damage which may have occurred during transportation. You may need the packaging in the future, if you need to transport your device. Fujitsu...
Keep other objects at least 100 mm / 4 inches away from the device and its mains adapter to ensure adequate ventilation. • Do not expose the device to extreme environmental conditions. Protect the device against dust, moisture and heat. Fujitsu...
USB type-C power adapter provided for the device, see chapter "Technical data", Page ► Plug the mains cable (2) into a mains outlet. ► Connect the supplied USB Type-C cable (3) of the power adapter to the Intel® Thunderbolt™ 4 USB power port. Fujitsu...
If a Windows operating system is installed on your device, you will find more information on the system and drivers, help programmes, updates, manuals etc. on the device. This information can also be found on the Internet at "http://www.fujitsu.com/fts/support/". You can find information and help on the Windows operating system functions on the Internet at "http://windows.microsoft.com".
This chapter describes the basics for operating your Tablet PC. You can find instructions on how to connect external devices (e.g. mouse, flash memory) to the Tablet PC in the chapter "Connecting external devices", Page Please refer to the notes in "Important notes", Page Fujitsu...
• The indicator light is orange: The battery is being charged. • The indicator is not lit: The battery is not being charged (the battery is already more than 90% charged or the mains adapter is not connected). Fujitsu...
In the BIOS setup utility menu you can set the system to switch on automatically as soon as the mains adapter is connected: ► To do this, set Automatic Power-On by AC to Enabled in the menu Advanced - Miscellaneous Configurations. Fujitsu...
Control Panel - Hardware and Sound - Power Windows Options If you have assigned a password, you must enter this when requested to do so, in order to start the operating system. Detailed information can be found in the chapter "Security functions", Page Fujitsu...
"Screen resolutions for integrated screen and external screens", Page High-quality LCD screens (TFT) are installed in Fujitsu Tablet PCs. For technical reasons, these screens are manufactured for a certain resolution. An optimum and sharp image can only be ensured with the resolution intended for the particular screen. A screen resolution which differs from the specification can result in an unclear image.
Page 30
In Windows 10 you can proceed as follows to set the output type: ► Wipe your finger over the screen starting from the right-hand edge. ► Select All settings. ► Select Settings - System - Display - Multiple screens. Fujitsu...
In Settings there are profiles saved for operation with different screen orientations. These profiles have preset standard configurations that can be modified as desired. These settings do not just affect the screen settings on the Tablet PC, but also those on externally connected monitors. Fujitsu...
"Calibrating the pen", Page Please note: There are separate calibration programs available for calibrating the pen and for calibrating finger tip operation. Do not use the calibration tool for the pen to calibrate finger tip operation. Fujitsu...
To avoid damage, the pen should be stored in the slot when not in use. The pen can be influenced by electromagnetic fields (cursor quivers or jumps). There may be a few areas on the screen where the cursor quivers slightly in spite of pressing the pen down firmly. Fujitsu...
Page 34
Opening a context Click with the right-hand mouse Place the pen directly on the required menu button. element and hold the pen pressed against the screen. Moving the cursor Place the pen tip directly on the screen. Fujitsu...
Page 35
A charging time of approximately 15 seconds is sufficient to enable to pen to be used for 90 minutes again. ► Insert the pen fully in the slot. After a charging period of approximately 5 minutes, the pen battery is fully charged. Fujitsu...
Page 36
You should attach the pen with a pen tether to prevent accidentally dropping or losing it. ► Secure one end of the pen tether to the pen and the other end of the pen tether to the Tablet PC. Fujitsu...
Decrease the volume Shortcut button Start function manager or screen shot function If the ON/OFF switch of the Tablet PC is pressed in combination with the volume-down button, this corresponds to the function of the key combination Ctrl on a keyboard. Fujitsu...
The camera automatically adjusts itself to the current light level. For this reason the touchscreen may flicker while the light level is adjusted. Further information on use of the camera and additional settings can be found in the Help function of the program which uses the camera. Fujitsu...
If you require the maximum battery life for mobile use, we recommend configuring Battery Charge Mode to 100%. You can find Battery Utility in the Windows start menu under Settings - Extras and online at "https://support.ts.fujitsu.com/" Charging and maintaining the battery Battery Battery The rechargeable battery of the Tablet PC can only be charged when the ambient temperature is between 5 °C / 41 °F and a maximum temperature of 35 °C / 95 °F.
The device is currentless. Switch on the battery ► Connect the device to the mains adapter of the Tablet PC. ► Connect the device to a keyboard docking that is connected to a mains adapter. ► Switch the device on again. Fujitsu...
When operating the Tablet PC on battery power: The power consumption level can be set if the system is being used in rechargeable battery mode. ► Click the battery symbol on the task bar. ► To spontaneously reduce power consumption, click the power-saving mode button. Fujitsu...
Your Tablet PC is equipped with an integrated memory card reader. You can use memory cards to increase the storage of your Tablet PC. Observe the manufacturer’s instructions when handling the memory cards. Memory card Supported formats It supports the following formats: • Micro Secure Digital (microSD Card) • microSDHC • microSDXC Fujitsu...
► Press the edge of the memory card so that the memory card jumps (2) slightly out of the slot (a). ► Pull the memory card out of the slot (a) in the direction of the arrow (3). ► Close the slot cover again. Fujitsu...
► Insert the SIM card (3) in the SIM card holder as shown. ► Push the SIM card holder back into the slot (4). ► Close the slot cover again. ► Switch the battery on again ("Switch the battery off and on", Page 36). Fujitsu...
► Remove the SIM card from the SIM card holder (3). ► Push the SIM card holder back into the slot (4). ► Close the slot cover again. ► Switch the battery on again ("Switch the battery off and on", Page 36). Fujitsu...
Working with the Tablet PC Wireless LAN / Bluetooth / LTE radio components (configuration dependent) The installation of radio components not approved by Fujitsu will invalidate the certifications issued for this device. Switching the wireless components on and off wireless components are switched on and off via the corresponding functions of the operating system.
The network cable is not included in the delivery scope. This type of cable can be obtained from a specialist dealer. Use a shielded network cable (CAT 5e). Whether your device has this function or not depends on the device configuration chosen. Fujitsu...
Select a suitable location for the tablet stand before setting it up. In doing so, please follow these instructions. ► Place the tablet stand on a stable, flat and anti-slip surface. ► Protect the tablet stand from dust, humidity and heat. Fujitsu...
Tablet PC firmly when you alter the set-up angle. Remove Tablet PC from the tablet stand ► To remove the Tablet PC from the tablet stand, lift the Tablet PC upwards away from the guide pins of the tablet stand. Fujitsu...
In addition, damage can occur to the tablet stand or port replicator, which can lead to a short circuit. ► Remove the Tablet PC from the tablet stand. ► Fold the supporting surface of the tablet stand completely upwards. Fujitsu...
Page 51
► Remove the covers from the VESA holes on the bottom side of the port replicator. ► Place the port replicator on the opened supporting surface of the tablet stand so that the VESA holes of the tablet stand are exactly above the VESA holes of the port replicator. Fujitsu...
Page 52
► Insert the four screws supplied with the tablet stand completely through the VESA holes in the base plate and use them to secure the tablet stand to the port replicator. ► Place the Tablet PC on the tablet stand. Fujitsu...
Page 53
Accessories for your Tablet PC (optional) ► Connect the mains adapter supplied with the port replicator to the port replicator. Fujitsu...
Page 54
► If required, connect your external devices to the Tablet PC via the corresponding ports on the port replicator. If you want to transport the Tablet PC, all you have to do is disconnect the Thunderbolt cable from the Tablet PC and lift the Tablet PC off the tablet stand. Fujitsu...
8 = LAN port A microfibre cloth is provided with your keyboard dock. To protect your Tablet PC’s touchscreen, we recommend placing the microfibre cloth between the keyboard and the touchscreen when the device is folded closed. Fujitsu...
"Technical data", Page ► Plug the power cable into the mains socket (4). If the Tablet PC is connected to the keyboard dock, you can also connect the mains adapter to the Tablet PC instead of to the keyboard dock. Fujitsu...
PC using the appropriate function in the operating system. ► Press and hold the release button (1) until it remains in the pressed position (red marking becomes visible). ► Lift the Tablet PC away from the keyboard dock in the direction of the arrow (2). Fujitsu...
► Tap the touchpad once or press the left button once. The item is selected. Executing commands ► Move the pointer to the field you wish to select. Touchpad ► Tap the touchpad twice or press the left button twice. The command is executed. Fujitsu...
Page 59
► Press and hold the left button and, with your finger on the touchpad, drag the item to the desired position. The item will be moved. Switching the Touchpad on and off You can switch the touchpad on and off using the keyboard, see "Key combinations", Page Fujitsu...
The illustrations shown below may differ from your actual device. Alt Gr Description Backspace key The Backspace key deletes the character to the left of the cursor. Backspace Backspace Tab key The Tab key moves the cursor to the next tab stop. Tabkey Fujitsu...
Page 61
The cursor keys move the cursor in the direction of the arrow, i.e. up, down, left, or right. Cursor keys Cursor control Windows key The Windows key switches between the start screen and the last used application. Windowskey Menu key The Menu key opens the menu for the active application. Fujitsu...
Page 62
Further information about the status indicators can be found in chapter "Status indicators", Page Country and keyboard settings ► Change the country and keyboard settings as described in the documentation for your operating system. Fujitsu...
Page 63
Fn key. Combination Description Switching the microphone on/off This key combination enables and disables the microphone. Fn+F1 Microphone Microphone Switching the loudspeakers on and off This key combination switches your Tablet PC’s loudspeakers off and on. Fn+F2 Loudspeakers Loudspeakers Fujitsu...
Page 64
Fn+F10 Toggleoutputscreen Activate/deactivate keyboard backlight On backlit keyboards, this key combination activates or deactivates the backlight. Fn+spacekey Activate/deactivatekeyboardbacklight Switch between open applications Use this key combination to switch between several open applications. Alt+Tab Fujitsu...
Page 65
In battery mode, it is recommended to turn on the backlight only when needed and to use the lower brightness level to maximize battery life. Fujitsu...
If you change the Password Severity setting from Strong to Stringent in the Security BIOS Setup Utility menu, the Fujitsu Service Desk can no longer reset the password. In this case, the system can remain permanently unusable.
► You must install the fingerprint software in order to be able to use the fingerprint sensor (1). The current AuthConductor Client Basic software for the fingerprint sensor is available on the Internet at: "https://support.ts.fujitsu.com/" After selecting the product and the operating system, you will find the software under Downloads, Applications, Tools and Utilities.
If you change the Password Severity setting from Strong to Stringent in the Security BIOS Setup Utility menu, the Fujitsu Service Desk can no longer reset the password. In this case, the system can remain permanently unusable.
You can only change the supervisor password when you have logged into the BIOS Setup Utility with the supervisor password. Password Supervisorpassword User password ► Call the BIOS Setup Utility and go to the Security menu. ► When changing the password, proceed exactly as for password assignment. Fujitsu...
► Select the Disabled option and press the Enter key. If you do not want to change any other settings, you can exit BIOS Setup Utility. ► Select the Save Changes & Exit option under Exit. The Tablet PC reboots. The system is no longer password-protected. Fujitsu...
► After providing the input, press the Enter key three times. ► From the Exit menu, choose the option Exit Saving Changes. ► Press the Enter key and select Yes. The Tablet PC reboots and there is no longer any password protection for this disk. Fujitsu...
PIN. When you use the CardOS SmartCard for the first time, you will either need to enter the preset PIN "12345678" or the PIN given to you by your systems administrator. Fujitsu...
Do not use force when inserting and removing the SmartCard. Make sure that foreign objects do not fall into the SmartCard reader. ► Push the SmartCard into the SmartCard reader (1) with the chip towards the front of the Tablet PC. Fujitsu...
► In the Exit menu, choose the option Exit Saving Changes. ► Press the enter key and select Yes. The tablet PC is rebooted and the password dialogue is displayed. Tap on the password field to enable the on-screen keyboard. Fujitsu...
Dolby Digital or DTS. To play back HDMI sound, you must change the HDMI sound settings accordingly. You can find the settings under Control Panel - Hardware and Sound. Deactivate the settings for DTS Audio and Dolby Digital to enable playback of HDMI sound. Fujitsu...
Additional information can be found in the documentation for the USB devices. ► Connect the data cable to the external device. ► Connect the data cable to the USB port on the Tablet PC. Device drivers USB devices will be automatically recognised and installed by your operating system. Fujitsu...
► Tap the symbol for safe removal of the hardware. ► Select the device which you want to shut down and remove. ► Tap OK. Wait for the dialogue box which tells you that it is now safe to remove the device. Fujitsu...
If you buy a cable from a retailer, please note the following information: The headphones/microphone/Line-In/Line-Out/headset-combi port on your Tablet PC is a "3.5 mm jack socket". If you want to connect headphones or a speaker you will need a "3.5 mm jack plug". Fujitsu...
You can use this to start the system, also via other data sources, e.g. via a network. You can also access the BIOS-Setup-Utility from the boot menu with the tab key. Fujitsu...
► Select the option that you want to change with the cursor keys ↑ ↓ ► Press the Enter key. ► Press the key to exit the selected menu. ► For future reference, make a note of the changes you have made (e.g. in this manual). Fujitsu...
► If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes. Save Changes and Power Off ► To save the changes and switch off your device, select Save Changes and Power Off and Yes. The changes are saved. Your device is shut down. Fujitsu...
Settings in BIOS Setup Utility Erase Disk Erase Disk is a solution that is integrated into the firmware of the FUJITSU Computer (UEFI: Unified Extensible Firmware Interface), to delete all the data from a hard disk or a solid state drive (SSD) memory module.
Page 83
• Reset administrator and user password • Load BIOS setup defaults • Shutdown the Computer • Exit Erase Disk with no additional options upon completion ► Select the function which you require. The deletion process starts. Fujitsu...
PC if you are running processor-intensive gaming software, e.g. games with intensive 3D graphics. Updating your hardware with drivers which have not been approved by Fujitsu Technology Solutions may result in performance losses, data losses or malfunction of the equipment. A list of approved drivers and current BIOS versions can be downloaded from: "http://support.ts.fujitsu.com/Download/Index.asp"...
► Contact the Service Desk responsible for your country for clarification of the problem: "http://support.ts.fujitsu.com/contact/servicedesk". When you do this, please have ready the ID number and serial number of your system.
"Intel Graphics Media Accelerator Driver for mobile". The display on the Tablet PC’s touchscreen is difficult to read. Touchscreen Touchscreen Cause Troubleshooting Reflected glare ► Move the Tablet PC into a different position. ► Increase the brightness of the screen. Fujitsu...
PC. Change the following setting: ► Set the screen resolution: Set the screen resolution as described in the documentation for your operating system. ► Select monitor: Select monitor 1 or 2 as described in the documentation for your operating system. Fujitsu...
► Close the application program or restart malfunction. the Tablet PC (by restarting the operating system or switching the device off and back on again). The battery is dead. ► Charge the battery. ► Connect the mains adapter to the Tablet Fujitsu...
The maximum brightness may have been set ► Reduce the brightness of the screen to for the screen. lower energy consumption: You will find the setting under Control Panel – Hardware and Sounds – Windows Mobility Center. Fujitsu...
► If you work in a network, contact your system administrator, who can boot your Tablet PC with a Supervisor SmartCard. Acoustic warnings Acoustic error messages Errors Cause Troubleshooting A beep sounds every few seconds. ► Charge the battery. The battery is almost flat. Fujitsu...
This section describes the error messages generated by the BIOS Setup. Error messages displayed by the operating system or programmes are described in the relevant documentation. If the error message appears repeatedly, despite troubleshooting measures, please contact the place of purchase or our customer service centre. Fujitsu...
Page 92
► Contact your sales outlet or our customer service centre. System cache error - Cache disabled ► Contact your sales outlet or our customer service centre. System timer error ► Contact your sales outlet or our customer service centre. Fujitsu...
Restoring the system under Windows If necessary, you can reset your system to the original state of the drive. ► Select Settings from the Start menu. ► Select your System. ► Select Recovery. ► Select Reset this PC. The system will be reset. Fujitsu...
Pen with 2 pen buttons Slots Memory card slot 1 x microSD SIM card slot (configuration-dependent) 1 x Nano-SIM SmartCard reader (configuration dependent) Ports 3.5 mm stereo mini jack Combined headphone and microphone port Docking port Micro HDMI port Fujitsu...
Page 95
5 °C ..35 °C / 41 °F ..95 °F Transport temperature (2K2) –15 °C ..60 °C / 5 °F ..140 °F Relative humidity 20 % ... 80 % (no condensation) Operating height up to 3048 m Fujitsu...
Technical data Screen resolutions for integrated screen and external screens System interface Max. number of Number of Integrated Display port / screens external screens monitor microHDMI port USB type-C 4096x2160@24Hz 1920x1080@60Hz 3840x2160@30Hz 1920x1080@60Hz 3840x2160@60Hz 4096x2160@24Hz 1920x1080@60Hz 3840x2160@60Hz 3840x2160@30Hz Fujitsu...
Technical data Rechargeable battery You can find information on the batteries used in your device on the Internet at "http://www.fujitsu.com/fts/support/". 3-cell lithium-ion rechargeable battery 3420 Rated voltage 11.1 V Rated capacity 38 Wh Type Lithium ions Interchangeability By authorized service provider Battery Button Cell CR2032 0.24 Wh...
5 °C ..35 °C / 41 °F ..95 °F Temperature during transportation -10 °C ..60 °C / 5 °F ..140 °F Relative humidity 20 % ... 80 % (no condensation) Operating height up to 3048 m Fujitsu...
TCO Certified TCOCertified Please note that TCO-certified systems bear the "TCO certified" logo. Further information is given in the "TCO certified" manual appendix at "http://support.ts.fujitsu.com/Manuals/". Electrical safety including ergonomic requirements (GS, depending on the device) Please refer to the associated data sheet to establish whether the model variant of your device has GS certification.
