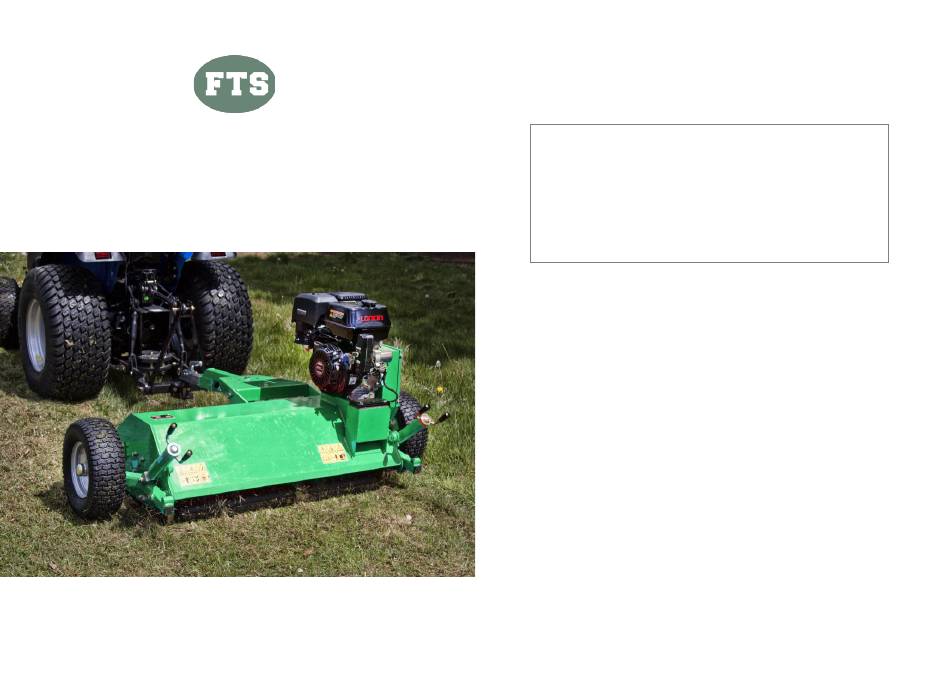

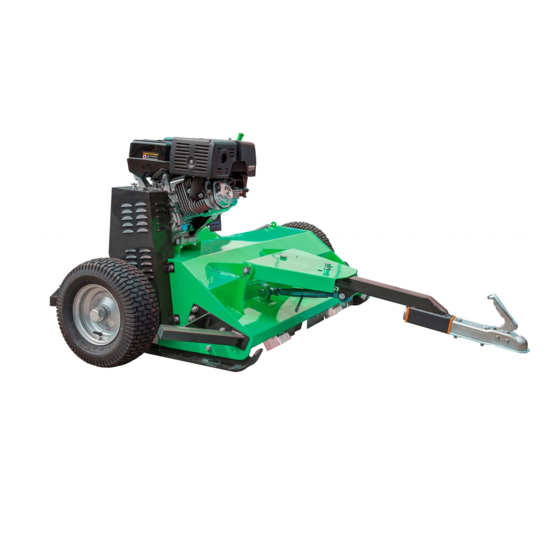

Congratulations on the purchase of your new attachment! Before you get started, we have provided a helpful space to jot down a few important details: Owner Manual Model number: G-AFL120 Serial number: ATV Grass Flail Mower Date of purchase: G-AFL120...
Safety Information Safety Information (continued) Before installation/maintenance, ensure vehicle and mower are Mower Pre-Use Checks stationary and the ignition key removed. Read and understand this manual before operating any machinery to avoid equipment Upon receipt of your new mower and again within the first 4 hours of use damage.
Parts Diagram 1……………………………………………………………………………..page 10 Parts List for Diagram 1…………………………………………………………….page 11-12 Working Width Depth Model Width Parts Diagram 2……………………………………………………………………………..page 14 (cm) (cm) (cm) Parts List for Diagram 2………………………………………………………………….page 15 G-AFL120 15hp...
Drawbar Adjustment Starting the Engine Before installation/maintenance, the vehicle and mower should be Before installation/maintenance, the vehicle and mower should be stationary and the ignition key removed. stationary and the ignition key removed. Adjust the mower drawbar to allow the mower to run directly behind the Observe all safety precautions: Keep hands and feet away from rotor/ towing vehicle.
Adjusting Roller & Side Skids Parts Diagram 1 On uneven ground, if a wheel drops into a hole, the roller takes the weight of the mower to stop the flails scalping the ground. The roller allows the wheel to hang over the kerb edge, so kerb side grass can be cut without difficulty.
Parts List for Diagram 1 Parts List for Diagram 1 (Continued) Diag. Diag. Part No Description Part No Description GB/T 276-94 Bearing 6005-2RS AT120-019 Mower deck welding AT120-106 Bushing GB/T 5782 Bolt M16x90 AT120-108 Lower pulley GB/T 5782 Bolt M20x90 Power lock GB/T 97.1 Flat washer 20...
Parts List for Diagram 2 Diag. Part No Part Description AT120-114 Wheel cap GB/T 5783 Bolt M12x30 GB 93-87 Spring Washer 12 GB/T 96.1 Flat gasket12 GB/T 276-1994 Bearing 6205-2RS Wheel assembly GB/T 889.1 Lock nut M12 AT120-021 Wheel arm (Right or Left) GB/T 97.1 Flat gasket 12 GB/T 5782...
