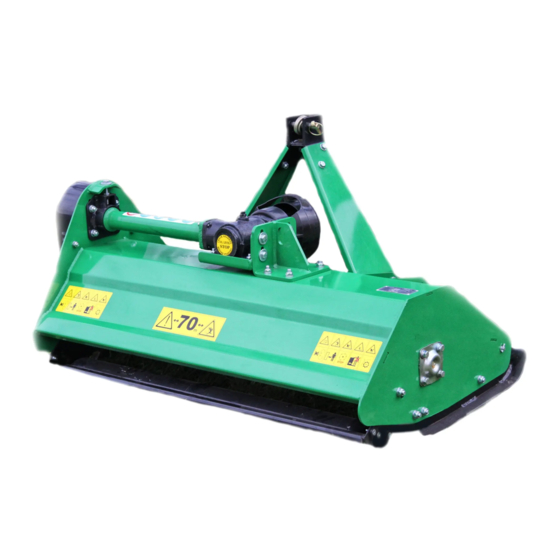

Flail mower

Advertisement

Owner Manual
Flail Mower
G-EFG
IMPORTANT: Read all instructions before using this attachment
Congratulations on the purchase of your new attachment!
Before you get started, we have provided a helpful space to jot down a
few important details:
Model number: G-EFG125 / G-EFG145
Serial number:
Date of purchase:
Factory reference: EFG125 / EFG145
This manual should be considered a permanent part of this attachment
and therefore should remain with it even if the attachment is
subsequently sold.
The manufacturer continually seeks advancements in its product design
and quality. Therefore, while this manual contains the most current
product information available at the time of printing, there may be minor
discrepancies between your attachment and this manual.
If you have any questions concerning this manual, please consult your
local dealer.
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-EFG125 and is the answer not in the manual?

Questions and answers

Summary of Contents for FTS G-EFG125

  • Page 1 Congratulations on the purchase of your new attachment! Before you get started, we have provided a helpful space to jot down a few important details: Owner Manual Model number: G-EFG125 / G-EFG145 Serial number: Flail Mower Date of purchase: G-EFG...
  • Page 2 Safety Information Safety Information (continued) Before installation/maintenance, ensure tractor and mower are Mower Pre-use Checks stationary with the hydraulic lift system in a neutral position, and the ignition key removed. Read and understand this manual fully Upon receipt of your new mower and again within the first 4 hours of use before operating machinery.
  • Page 3: Table Of Contents

    Drive Belt Adjustment……………………………………………………………….page 10-11 Working Width Depth Height Gearbox Maintenance…………………………………………………………………...page 12 Model Width (cm) (cm) (cm) (cm) Servicing & Maintenance………………………………………………………………..page 13 Parts Diagram 1 & Parts List …………………………………………………… page 14-16 G-EFG125 16-35 Parts Diagram 2 & Parts List …………………………………………………… page 18-19 G-EFG145 25-40...
  • Page 4: Installation Overview

    Installation Overview Resizing the PTO Drive Shaft Before installation/maintenance, the tractor and mower should be Before installation/maintenance, the tractor and mower should be stationary with the hydraulic lift system in a neutral position and the stationary, the hydraulic lift system in a neutral position and the ignition key removed.
  • Page 5: Setting Cut Height

    Setting cut height Drive Belt Adjustment Before installation/maintenance, the tractor and mower should be Before installation/maintenance, the tractor and mower should be stationary with the hydraulic lift system in a neutral position and the stationary with the hydraulic lift system in a neutral position and ignition key removed.
  • Page 6: Gearbox Maintenance

    Drive Belt Adjustment (continued) Gearbox Maintenance Check drive belts regularly and replace if damaged or worn. To check the Gear Oil Grade 80w90 gear oil for all conditions (or equivalent) belt condition and tension: Gearbox Oil Level Approx. 0.5 litres to level plug Loosen screw (A) and (B) that locks the support shaft and loosen First Oil Change 50 hours use...
  • Page 7: Servicing & Maintenance

    Parts Diagram 1 Servicing & Maintenance Before installation/maintenance, the tractor and mower should be stationary with the hydraulic lift system in a neutral position and the ignition key removed. Greasing & Lubrication: Use a clean cloth to wipe grease nipples before greasing to avoid injecting any dirt.
  • Page 8 Parts List for Diagram 1 Parts List for Diagram 1 (continued) Diag. Diag. Ref No. Part No. Part Description Ref No. Part No. Part Description 801160021 EFG120.013 Blade shaft (125) 31-1 805380112 RK90.019 Transmission box 31-2 805380110 RK120.019 Transmission box 801180006 EFG140.013 Blade shaft (145)
  • Page 9 Parts Diagram 2 Notes...
  • Page 10 Parts List for Diagram 2 Diag. Ref No. Part No. Part Description 511040032 UC207 Rotor bearing 207 801160021 EFG120.013 Blade rotor 125 801180006 EFG140.013 Blade rotor 145 501014721 GB5785-M12X1.5X78 Blade bolt M12 x 1.5 x 78 701140011 EF100.00.102B Hammer Blade 503010738 DIN985-M12X1.5 Blade nut M12 x 1.5...
