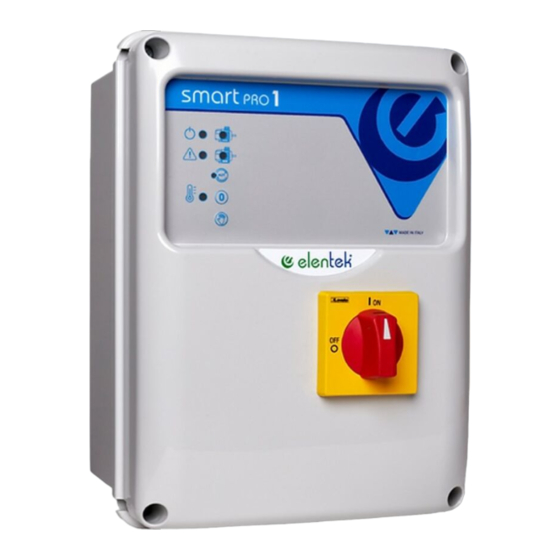

- Page 1 SMART PRO - User Manual ELECTRICAL PANEL FOR 1 OR 2 MOTORS...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ...................... 5 WARNINGS ......................6 OVERVIEW ......................7 INSTALLATION ......................9 LIGHT INDICATORS AND COMMANDS ..............10 MAIN BOARD INPUTS AND OUTPUTS..............11 EXPANSION INPUTS ..................... 13 RS485 expansion ......................13 Voltage-free contact output expansion ................. 13 Probe input expansion for motor start ................13 Probe input expansion for water seepage into oil chamber .......... - Page 4 MAX TRIMMER - Activation on current overload ............22 BOARD SPECIFICATIONS .................. 23 STANDARD WIRING DIAGRAMS ............... 24 12.1 SMART PRO Single phase (230V) wiring diagram ............24 12.2 SMART PRO Three phase (400V) wiring diagram ............25 EXPANSION WIRING DIAGRAMS ..............26 13.1...
-
Page 5: Introduction
1. INTRODUCTION This manual must always accompany the relevant equipment and be kept at an accessible location for consultation by qualified technicians assigned for operation and maintenance of the system. The installer/user is strongly recommended to carefully read all instructions and information in this manual before using the product, in order to avoid damage or improper use of the unit, which would also render the warranty null and void. -
Page 6: Warnings
2. WARNINGS The electrical panel must be used exclusively for the purpose and function as specified in design. Any other application or use is to be considered improper and therefore hazardous. In the event of a fire in the place of installation or the surrounding area, avoid using water jets and use appropriate extinguishing equipment and means (powder, foam, carbon dioxide). -
Page 7: Overview
3. OVERVIEW • Single-phase board power supply 100-240Vac 50/60Hz; • Three-phase board power supply 310-450Vac 50/60Hz; • Electronic board own consumption 3W; • G/P1 and G/P2 normally open inputs for motor start-up; • C-MIN-MAX inputs for single-pole level probes; • T1 and T2 normally closed inputs for motor thermal switch (Klixon);... - Page 8 • Provision for start-up capacitors, single phase version (not included); • Box in ABS, IP55; • Ambient temperature: -5/+40 °C; • Altitude a.s.l. 2000 m; • Relative humidity 50% at 40 °C (condensate free). CAUTION! For further technical data, please refer to the nameplate on the control panel.
-
Page 9: Installation
4. INSTALLATION Ensure that the mains power supply specifications match the voltage specified on the data plate of the electrical panel and connected motor, then provide an earthing connection before all other wiring. The power line must be protected by a residual current circuit breaker. Tighten the electrical cables on the corresponding terminals using a suitable tool correctly sized to avoid the risk of damaging the fixing screws. -
Page 10: Light Indicators And Commands
5. LIGHT INDICATORS AND COMMANDS STEADY green led: mains power ON FLASHING green led: failure or incorrect phase sequence Green led OFF: device not powered; STEADY green led: electric pump operating QUICK FLASHING green led (1 second): minimum current control enabled Green led OFF: electric pump on standby STEADY red led: motor thermal switch trip SLOW FLASHING red led: minimum current alarm... -
Page 11: Main Board Inputs And Outputs
6. MAIN BOARD INPUTS AND OUTPUTS Normally open input for motor 1 Klixon (thermal switch). Jumper if not using this input. Normally open input for motor 2 Klixon (thermal switch). Jumper if not using this input. Inputs for single-pole level probes Input for minimum level float (connection between C and MAX). - Page 12 SINGLE PHASE: • L/S - Motor phase • N/R - Motor idle • AVV - Start with on board capacitor OUT MOTOR THREE PHASE: • T1 (contactor) - Motor phase U • T2 (contactor) - Motor phase V • T3 (contactor) - Motor phase W Earthing.
-
Page 13: Expansion Inputs
7. EXPANSION INPUTS RS485 expansion Module for RS485 communication standard with MODBUS protocol A(-) – B(+) Voltage-free contact output expansion Module for 6 digital outputs 300mA 35V max for the signalling of: - O1: Motor 1 run - O2: Motor 2 run - O3: Overcurrent protection for motor 1 O1 –... -
Page 14: Bluetooth-Wifi Expansion
Bluetooth-WIFI expansion Allows the panel to be connected to any device via Wi-Fi or Bluetooth to use the Elentek APP... -
Page 15: Motherboard Dip-Switch Settings
8. MOTHERBOARD DIP-SWITCH SETTINGS Set DIP-SWITCHES with the panel switched off. DIP-SWITCH 1 - level alarm signalling from probes input OFF Level alarm signalling from probe input disabled ON Level alarm signalling from probe input enabled DIP-SWITCH 1 enables level alarm signalling from probe input or minimum level float (C-MIN- MAX input). -
Page 16: Dip-Switch 3 - Klixon Input Deactivation
DIP-SWITCH 3 - Klixon input deactivation OFF Klixon thermal switch enabled ON Klixon thermal switch disabled DIP-SWITCH 3 enables the Klixon input for motor overtemperature control. In the OFF position, Klixon inputs are enabled. In the ON position, Klixon inputs are disabled. If inputs are disabled and motors do not have a thermal switch, there is no need to jumper them. -
Page 17: Dip-Switch 6 - Self-Holding Enable (Start/Stop Floats)
DIP-SWITCH 6 - Self-holding enable (start/stop floats) OFF Self-holding disabled (start/stop floats) ON Self-holding enabled (start/stop floats) DIP-SWITCH 6 is used to activate the self-holding function for start/stop floats for wastewater emptying. For this setting, the stop float must be connected to the C-MAX input and the start float to G/P1 and G/P2. -
Page 18: Dip-Switch 8 - Motor Switching Module Enable
DIP-SWITCH 8 - Motor switching module enable OFF Switching module deactivation ON Switching module activation DIP-SWITCH 8 enables automatic switching of the motors. In OFF position, G/P1 input directly and independently controls motor output 1 and G/P2 directly and independently controls motor output 2. -
Page 19: Dip-Switch Settings Display
9. DIP-SWITCH SETTINGS DISPLAY Set DIP-SWITCHES with the panel switched off. DIP-SWITCH 1 - NO/NC (G/P1 - G/P2 - G.A.) Input reversal OFF Normally open inputs. ON Normally closed inputs. DIP-SWITCH 1 allows to invert the enabling of digital inputs G/P1 - G/P2 - G.A. In the OFF position, normally open inputs enable the system to close the contact. -
Page 20: Dip-Switch 4 - Manual Push Or Impulse Key
DIP-SWITCH 4 - Manual push or impulse key OFF Manual push key. ON Manual impulse key. DIP-SWITCH 4 sets operation of the manual key. In the OFF position, the manual key enables the motor by holding the key down; when it is released, the motor stops. -
Page 21: Trimmer Settings
10. TRIMMER SETTINGS 10.1 TRIMMER SENS. PROBE - Probe sensitivity The trimmer “SENS. PROBE” can be used to adjust sensitivity of the sensors to adapt them to liquid conductivity. This value should therefore be increased in the case of liquids with low conductivity. 10.2 TRIMMER MIN - Activation on minimum current The “MIN”... -
Page 22: Max Trimmer - Activation On Current Overload
10.3 MAX TRIMMER - Activation on current overload The "MAX" trimmer enables adjustment of the maximum motor current, over which the system protection trips due to current overload. The maximum current can be adjusted in two ways: Nominal motor current. Assisted calibration. -
Page 23: Board Specifications
11. BOARD SPECIFICATIONS MOTOR 1 MIN MOTOR 2 MIN FLAT DISPLAY CURRENT CURRENT MAIN BOARD CONNECTION REGULATION REGULATION DIP-SWITCH TRIMMER TRIMMER MOTOR 2 MAX MOTOR 1 MAX TERMINAL BOX CURRENT CURRENT REMOVABLE REGULATION REGULATION CONTROL TRIMMER TRIMMER MOTOR 2 OUTPUT MOTOR 1 OUTPUT PROTECTION FUSE BOARD... -
Page 24: Standard Wiring Diagrams
12. STANDARD WIRING DIAGRAMS 12.1 SMART PRO Single phase (230V) wiring diagram... -
Page 25: Smart Pro Three Phase (400V) Wiring Diagram
12.2 SMART PRO Three phase (400V) wiring diagram N.B.: On the three phase 230V version, the power supply and motors must be 3~230V. -
Page 26: Expansion Wiring Diagrams
13. EXPANSION WIRING DIAGRAMS 13.1 PRO-RS485 expansion 13.2 Voltage-free contact expansion PRO-6DO... -
Page 27: Pro-Sl Probe Input Expansion
13.3 PRO-SL probe input expansion 13.4 PRO-SL H20 probe input expansion... -
Page 28: Wiring Diagrams
14. WIRING DIAGRAMS 14.1 SMART PRO LED 1 MONO... -
Page 29: Smart Pro Led 2 Mono
14.2 SMART PRO LED 2 MONO... -
Page 30: Smart Pro Led 1 Tri
14.3 SMART PRO LED 1 TRI... -
Page 31: Smart Pro Led 2 Tri
14.4 SMART PRO LED 2 TRI... -
Page 32: Rs485 Modbus Addresses
Program to be followed 0x11F Type of Alarm Timer 0x120 Language 0x121 Display brightness on standby 0x122 ELENTEK name displayed on panel 0x123 Panel name enable 0x124 Klixon self-reset 0x125 Max. settable current in A/10 0x126 Alarm inhibition time at start in s/10... - Page 33 0x127 Pump start delay time in s/10 0x128 Pump off delay time in s/10 0x129 Simultaneous pump trigger delay time in s/10 0x12A Minimum current alarm delay time in s/10 0x12B Maximum current alarm delay time in s/10 0x12C High/low voltage alarm delay time in s/10 0x12D Pump 1 current calibration 0x12E...
- Page 34 0x151 Measurement unit selection 0x152 Analog signal operation 0x153 Analog sensor full scale in /10 0x154 Setpoint in /10 0x155 Start/stop threshold 1 in /10 0x156 Start/stop threshold 2 in /10 0x157 Start/stop threshold 3 in /10 0x158 Start/stop threshold 4 in /10 0x159 Service mode 0x15A...
-
Page 35: Size Table
16. SIZE TABLE CODE MODEL MEASURES TYPE 11015NB SMART PRO LED 1-Mono 195X245X120 PLASTIC 12015NB SMART PRO LED 2-Mono 11015 SMART PRO LED 1-Mono 310X240X185 PLASTIC 12015 SMART PRO LED 2-Mono 11016 SMART PRO LED 1-Tri/7,5 11017 SMART PRO LED 1-Tri/11... -
Page 36: Troubleshooting
17. TROUBLESHOOTING PROBLEM CHECKS/SOLUTIONS • Check that all phases are available at the panel input. THE POWER ON LED • Check and modify the phase sequence at the input of the door lock FLASHES disconnect switch. • Check that the green led on the automatic mode key is lit; THE PANEL IS POWERED UP BUT THE MOTOR otherwise press the key. - Page 37 NOTES...
- Page 38 NOTES...
- Page 39 NOTES...
- Page 40 ELENTEK SRL SOCIETÀ UNIPERSONALE Via A. Meucci 5/11 - 35028 Piove di Sacco (PD) - ITALIA Tel. +39 049 9730367 - Fax +39 049 9731063 Code MQ 0037 UK www.elentek.com - info@elentek.com Rev. 00 VAT No. 04534630282 Is. 12.2021...
