Videofied BR651 Product Installation

INSTALLATION SHEET
PRODUCT SUMMARY
The Outdoor Badge Reader BR651 is designed for use in operating a
Videofied security system. The Outdoor Badge Reader includes the
following features:
>
Totally wireless, battery operated
>
Dual tamper function provides detection for both wall and
cover tamper.
>
Transmits check-in/status signal every 8 minutes.
>
Mobility-Use outdoors or indoors with a fully weatherproof
casing withstanding temperatures from -25°C to
+60°C (-20°/+140°F).
>
XT-series panels allow up to a total of 18 badges to be recorded
and W-series panels allow up to a total of 48 badges.
DEVICE PROGRAMMING & RANGE TESTING
The following provides summarized steps for device programming
and testing. For complete details, refer to the control panel
installation manual.
• 1 Remove top and bottom screws, separate base from Badge
Reader and install the batteries.
• 2 Put control panel into configuration/add a new device
mode using the keypad.
• Press the programming button on the inside of the case.
3
4
• Wait for keypad display to show Badge Reader Recorded
• Re-attach base to secure tamper switch.
5
6 • Press OK/YES on the keypad. The display shows RADIO
RANGE TEST? Press Yes again. The detector LED starts
flashing and keypad display shows TEST IN PROGRESS
END=OK/YES.
• Take badge reader to its intended mounting location
7
and make sure LED flashes continuously, indicating good
communication with control panel.
• Press OK/YES to end radio range test, then press ESC/NO.
8
• The display shows RECORDING A NEW DEVICE? Repeat
9
steps 4 - 8 for remaining badge readers.
• When finished, exit from configuration mode.
10
BADGE READER BR651 PRODUCT INSTALLATION
LAST MODIFICATION DATE : NOVEMBER 2016
INSTALLATION GUIDELINES
For easier installation and programming, RF testing should be done
to check for good communication between the control panel and all
system devices before mounting system devices. Install the badge
reader and other system devices in order of the following steps:
>
Programming/RF Testing - program reader and all other devices
into the control panel and test RF communication from each
intended device location to the control panel.
>
Mounting - mount reader at the tested location.

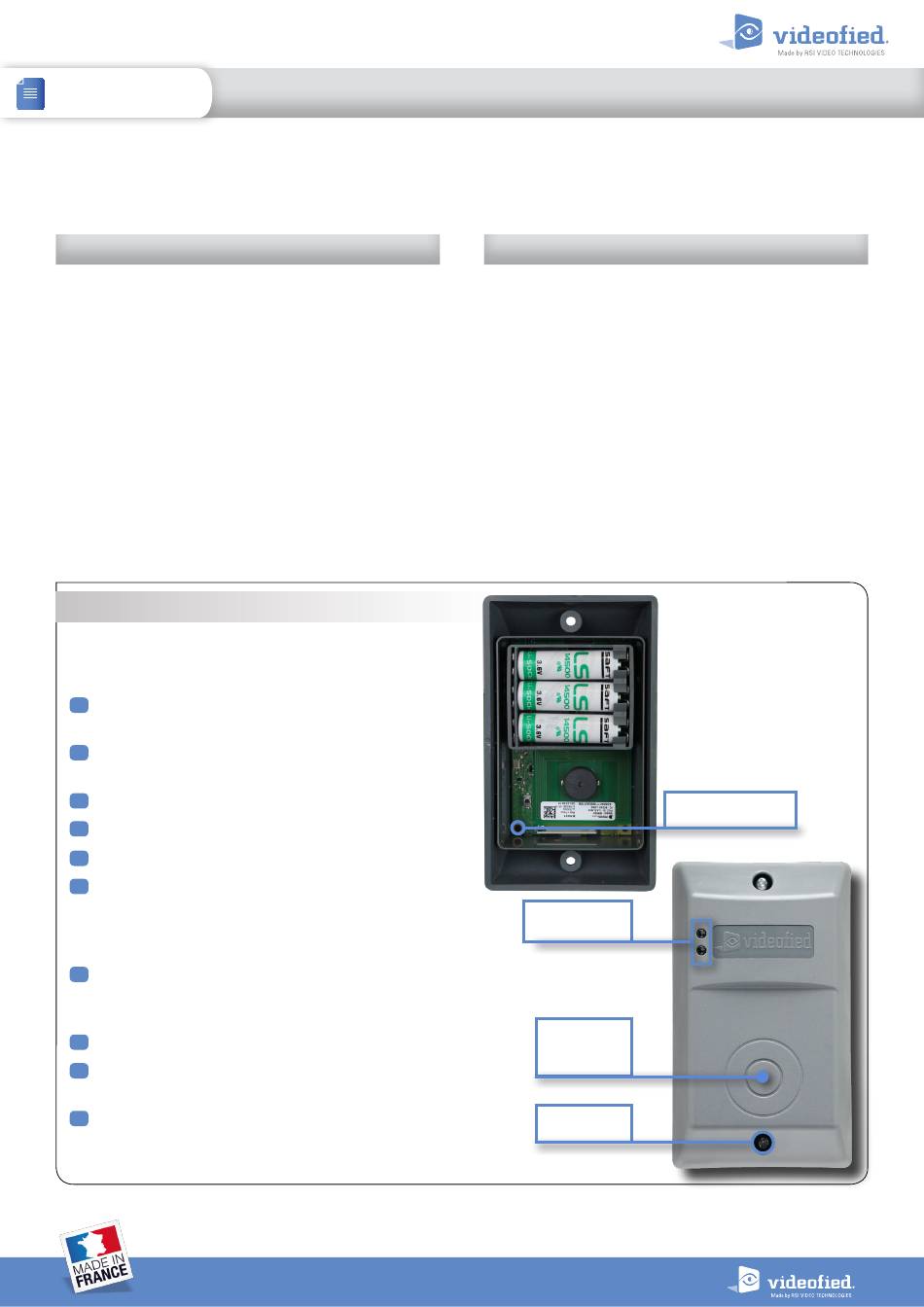

Indicator LEDs
Surface of the
badge reader
Access Screw
DOC. - REF. 238-BR
FIRMWARE VERSION : N/A
PROGRAM Button
1
