Videofied BR651 Installation Sheet

Product Summary

The Outdoor Badge Reader BR651 is designed for use in
operating a Videofied security system. The Outdoor Badge
Reader includes the following features:
>
Totally wireless, battery operated
>
Dual tamper function provides detection for both wall and
cover tamper.
>
Transmits check-in/status signal every 8 minutes.
>
Mobility-Use outdoors or indoors with a fully weather
proof casing withstanding temperatures from -25°C to
+60°C.
>
Depending the alarm panel used, up to 18 badges can be
recorded.

Programming /RF Testing

The following provides summarized steps for device
programming and testing. For complete details, refer to the
control panel installation manual.
Remove top and bottom screw, separate base from Badge
1
Reader and install batteries.
Put control panel into configuration/add a new device
2
mode using the keypad.
3 Press the programming button on the inside of the case.
4 Wait for keypad display to show Badge Reader Recorded
Re-attach base to secure tamper switch.
5
6 Press Yes on the keypad. The display shows RADIO RANGE
TEST? Press Yes again. The detector LED starts flashing
and keypad display shows TEST IN PROGRESS.
Take badge reader to its intended mounting location
7
and make sure LED flashes continuously, indicating good
communication with control panel.
Press Yes to end radio range test, then press Esc/No.
8
9 The display shows RECORDING A NEW DEVICE? Repeat
steps 4 - 8 for remaining badge readers.
10 When finished, exit from configuration mode.
P R O D U C T I N S T A L L A T I O N S H E E T
Made by RSI VIDEO TECHNOLOGIES

Installation Guidelines

For easier installation and programming, RF testing should be
done to check for good communication between the control
panel and all system devices before mounting system devices.
Install the badge reader and other system devices in order of
the following steps:
>
Programming/RF Testing - program reader and all other
devices into the control panel and test RF communication
from each intended device location to the control panel.
>
Mounting - mount reader at the tested location.

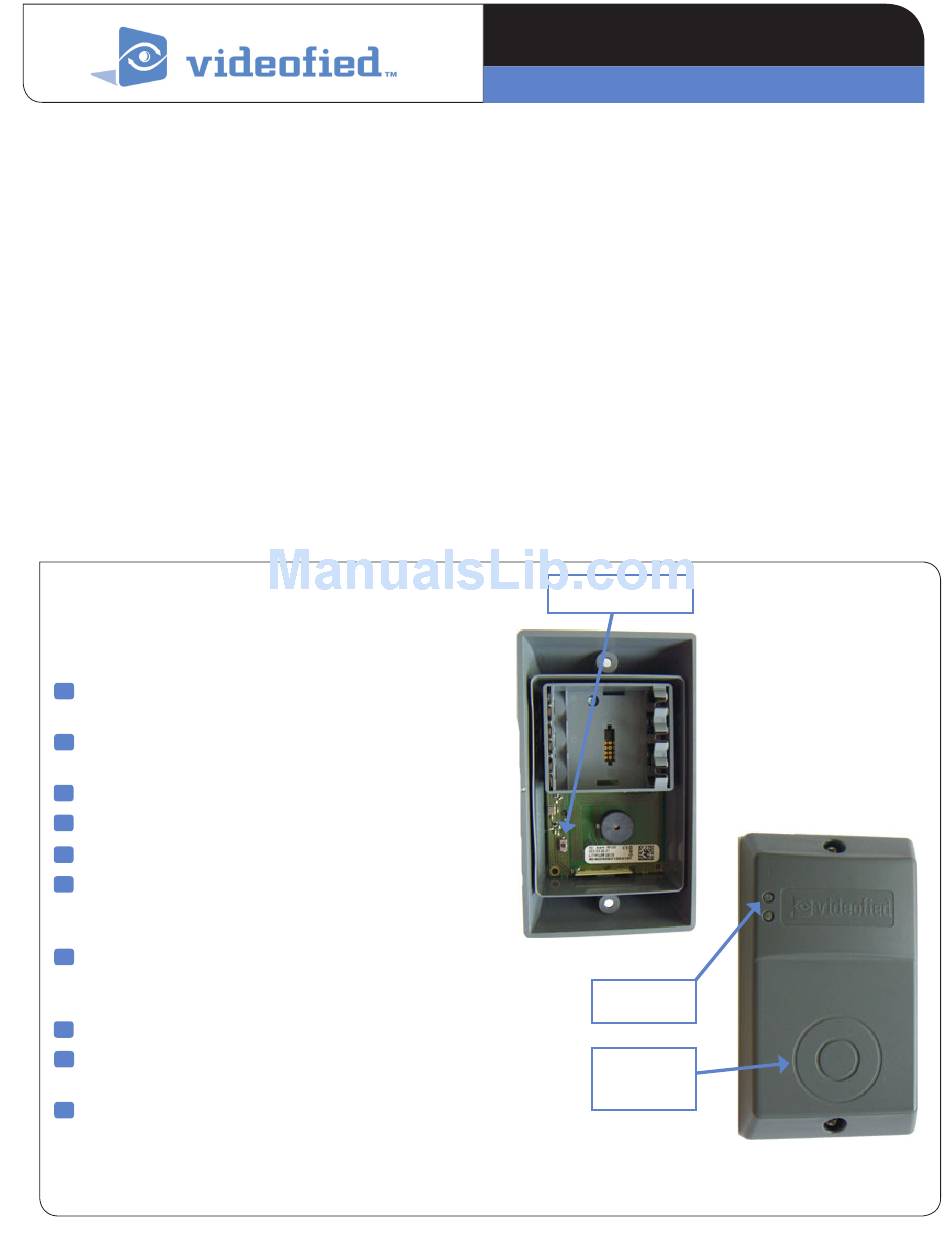

Badge Reader BR651
PROGRAM Button
Indicator LED
Surface of the
badge reader
