Tudelu MUTE Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Manual
SYSTEM:
MUTE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tudelu MUTE

Summary of Contents for Tudelu MUTE

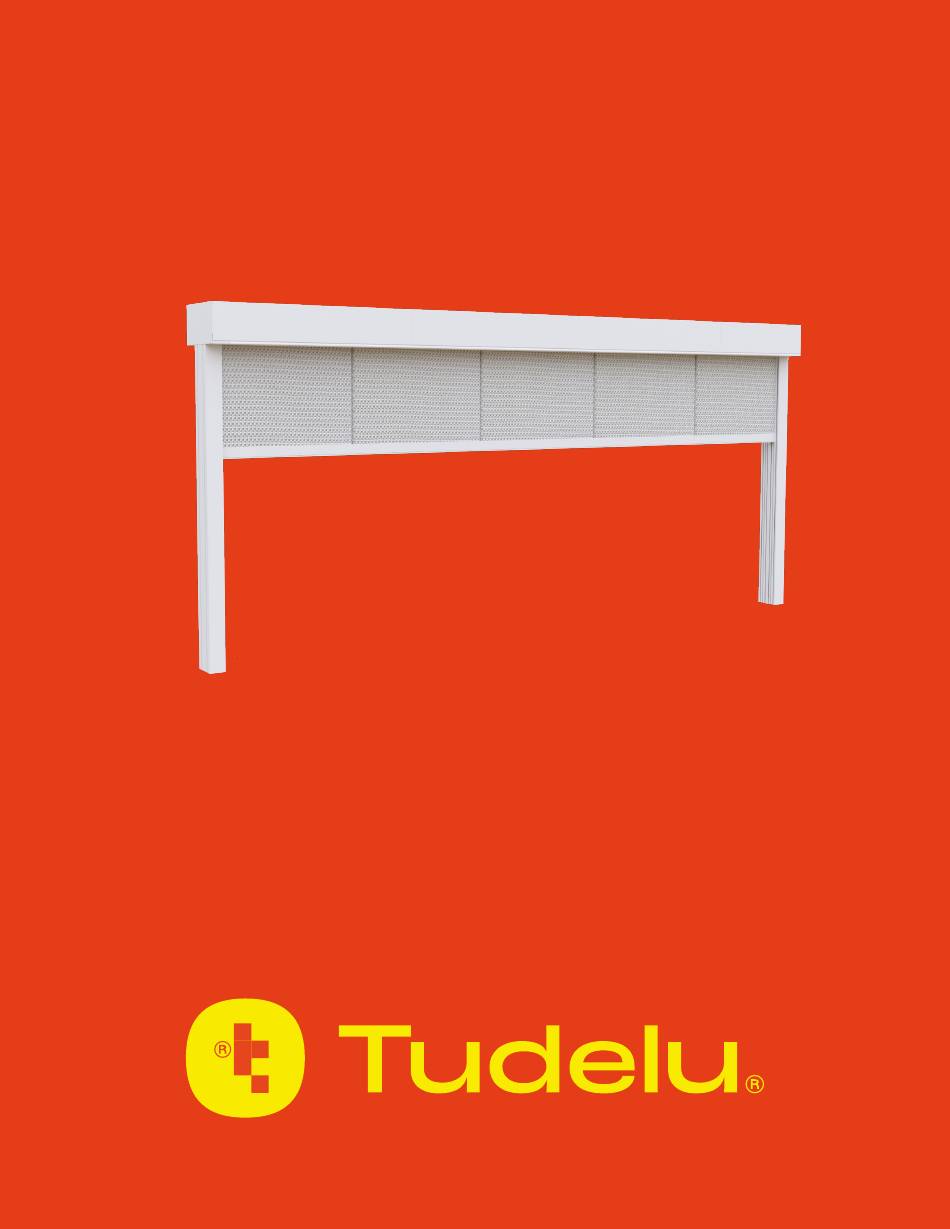

  • Page 1 Installation Manual SYSTEM: MUTE...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS MEET THE SYSTEM PRE-INSTALLATION CHECKLIST: - BOXES - TOOLS - ROOM HOUSING INSTALLATION: - INSIDE THE BOX: - BEGINNING UNIT - MIDDLE UNIT - END UNIT - ASSEMBL Y - INSTALLATION - SOUND BOARDS - ROLLERS - MOTOR: - INSIDE THE BOX - TUBE: - ASSEMBL Y...

  • Page 3: Meet The System

    MEET THE SYSTEM HOUSING WALL PANEL SIDE GUIDE WEIGHT & BOTTOM BAR...

  • Page 4: Pre-Installation Checklist

    PRE-INSTALLATION CHECKLIST Before getting started, complete the following checklists to ensure you are set for installation: Boxes checklist Tools checklist Room checklist...
  • Page 5 CHECKLIST #1 : BOXES Make sure you received your full order. Beginning Unit Middle Unit/s* Ending Unit Motor Unit Wall Panel Units* Weight and 2 Side Guide Units Bottom Bar Unit *amount depends on the length of your specific system...
  • Page 6 CHECKLIST #2 : TOOLS These are the tools you'll need to install your system: Wrenchs Philips #2 Drill bits Tape measure Socket / Wrench; 7/16 + 3/8 + 9/16 Extension cord Utillty knife Stapler Leveler Laser Material Lift Drill with aluminum blade 2 ladders and Plier Duct tape...
  • Page 7 CHECKLIST #3 : ROOM A. Make sure you have power to operate your tools and the system B. Ensure the power is in a convenient location C. Clear the room for installation D. Use the laser to check that the structural support is leveled E.
  • Page 8 CHECKLIST #3 : ROOM F. Verify once more that the system you ordered and the room measurements match G. Mark 26'' on the ceiling (this is where the system will be installed) H. If installed on a drop, ensure that each nut and bolt is firmly tightened...

  • Page 9: Housing Installation : Inside The Box

    HOUSING INSTALLATION : INSIDE THE BOX BEGINNING UNIT - HM1066 Beginning housing 2 tubes Under-housing covers frame and access panels 3 sets of: Soundboards Screws and tools 4 large rollers 2 small rollers...

  • Page 10: Middle Unit

    HOUSING INSTALLATION : INSIDE THE BOX MIDDLE UNIT - HM1060 Each Middle Unit box contains: Middle housing frame 2 tubes Under-housing covers 3 sets of: Soundboards Screws and tools 4 large rollers 2 small rollers...
  • Page 11 HOUSING INSTALLATION : INSIDE THE BOX ENDING UNIT - HM1089 Ending housing frame 2 tubes Under-housing covers and access panels 3 sets of: Soundboards Screws and tools 4 large rollers 2 small rollers...
  • Page 12 HOUSING INSTALLATION : ASSEMBL Y Place metal rods under the housing so the unit remains intact when you lift it Set all the housing modules on the floor before installation...
  • Page 13 HOUSING INSTALLATION : ASSEMBL Y Follow the instructions that are relevant to your system and refer to the mini manual for more information DIRECT TO I-BEAM CROSS/DROP SECTION Insert the screw clamp and washers Disconnect the screws from the into the unistrut housing Connect the unistrut to the housing Insert the screws and washers into...
  • Page 14 HOUSING INSTALLATION : INSTALLATION Use the material lift to raise the first housing unit DIRECT TO I-BEAM CROSS/DROP SECTION Push the screw clamp in Push the screw in and rotate Note: Do not tighten the screw all the way Tighten the screw...
  • Page 15 HOUSING INSTALLATION : INSTALLATION Repeat the previous steps to install the middle housing frame/s Repeat the previous steps to install the ending housing frame...
  • Page 16 HOUSING INSTALLATION : INSTALLATION Project a laser beam across the housing. If it isn't leveled, use the laser's lowest point as a guide to level the housing Check all 4 corners of each housing Join each housing unit together to ensure they are all leveled If nedded insert a shim to lower the Tighten the screws that connect the housing...
  • Page 17 HOUSING INSTALLATION : SOUNDBOARDS Finger INSTRUCTIONS Open the fingers Insert the boards Lock the fingers Repeat for all the soundboards...
  • Page 18 HOUSING INSTALLATION : ROLLERS INSTRUCTIONS All rollers should be facing the same Note: Only one side could be pushed in Repeat on the other side Insert the rollers into the arms 1. Larger rollers go on either side 2. Smaller rollers go in the center...
  • Page 19 MOTOR UNIT : INSIDE THE BOX MOTOR UNIT - HM1138 2 motors 2 idlers 2 control boxes...
  • Page 20 HOUSING INSTALLATION : TUBE ASSEMBL Y Starter tube (Notice the screws for the motor) Middle tube Tube connectors Ending tube INSTRUCTIONS Connect the motor to the starter tube Connect the starter tube to the tube Note: The screws connecting the motor are different connector than the screws connecting the tubes to the connectors Push the tube connector halfway to...
  • Page 21 HOUSING INSTALLATION : TUBE INSTALLATION INSTRUCTIONS Use the materal lift to raise the connected tubes to the housing system Lift the tubes to the center of housing Push the tubes into the arms on both sides Side view of the tubes inside arms...
  • Page 22 HOUSING INSTALLATION : TUBE INSTALLATION Ensure that the limit adjusters are on the bottom of the housing (facing the floor) Push the tube with the motor into the Insert and tighten the screws motor connector (make sure it's all the way in) Connect the tube wire to the Rotate the motor downwards temporary connection...
  • Page 23 WALL PANEL UNIT : INSIDE THE BOX Heavy-duty paper tubes Rolls of wall panels (inside paper tubes) and hook attachment Slide the hook attachment into the Press on the end off the hook wall panel attachment to lock it in...

  • Page 24: Wall Panel Unit

    WALL PANEL UNIT : INSTALLATION Zippers 76'' Custom size Custom size INSTRUCTIONS Start from the bottom Then click in to the top Use the material lift to raise the wall panel Connect the top of the metal attachment to the tube Slowly lower the lift Measure 3'' from the wall Slide the wall panel to 3'' from the wall...
  • Page 25 WALL PANEL UNIT : INSTALLATION Raise the next wall panel roll Slide it next to the first wall panel Zipper both sides of the wall panels Lock the zipper on each side with a zipper stopper Tape the zipper to the tube Insert and tighten the screws on top of the metal panel attachment Flap closed...

  • Page 26: Weight & Bottom Bar Unit: - Inside The Box

    WEIGHT AND BOTTOM BAR : INSIDE THE BOX 2 bottom bars 2 weight bars Bottom bar connectors Weight bar connectors (large) (small)

  • Page 27: Installation

    WEIGHT AND BOTTOM BAR : INSTALLATION Weight bar Bottom cover Side view...
  • Page 28 WEIGHT AND BOTTOM BAR UNIT: INSTALLATION Raise the wall panels off the floor Slide the weight bar into the wall panel Repeat the previous steps to all the Slide the small weight bar connector wall panels into the weight bar under the wall panel Insert the screws into the weight bar Attach the bottom bar connector...
  • Page 29 UNDER-HOUSING COVER : INSIDE THE BOX Middle under-housing covers Access panel covers Beginning/ending under-housing covers DO NOT REMOVE PROTECTION FILM UNTIL CONSTRUCTION IS COMPLETE...

  • Page 30: Under Housing Cover

    UNDER-HOUSING COVER : INSTALLATION Under- housing cover Side view of under-housing cover...
  • Page 31 UNDER-HOUSING COVER : INSTALLATION INSTRUCTIONS Hook the under-housing cover to the Hook onto the other side inside of the housing Insert the beginning under-housing Clip it in access panel Insert the smallest size (lengthwise) Repeat the previous steps for the rest under-housing cover and clip it in of the under-housing covers Insert the access panels covers in the...
  • Page 32 SIDE GUIDE : INSIDE THE BOX SIDE GUIDE UNIT - GM1018 Side guide Aligners Connectors Sensor cable extrusion raceway SG-13 sensor Rubber seal Top attachment Tools & screws transmitter DO NOT REMOVE PROTECTION FILM UNTIL CONSTRUCTION IS COMPLETE...
  • Page 33 SIDE GUIDE : ASSEMBL Y Side guide INSTRUCTIONS Insert the connectors into the side Insert and tighten the screws guide Connect the second side guide to the Insert and tighten the screws first Insert the aligners Use an allen key to tighten the screws...
  • Page 34 SIDE GUIDE : ASSEMBL Y After assembling the side guides, measure the height from the housing to the floor and cut the side guides accordingly cut side guide accordingly...
  • Page 35 SIDE GUIDE : ASSEMBL Y INSTRUCTIONS Insert an SG-13 sensor transmitter into To secure the wire, insert the raceway to one track and reciver into the other on top of the sensor cable from the top Note: Sensor should be facing up Slide the rubber seals into the side Slide both top attachments on top of guide...
  • Page 36 SIDE GUIDE : INSTALLATION INSTRUCTIONS Insert the side guide into the middle of the housing Push it against the wall Use a leveler to make sure the front and side are leveled...
  • Page 37 SIDE GUIDE : INSTALLATION Insert the screws into the side guide...

  • Page 38: Control Box : Installation

    CONTROL BOX : INSTALLATION Screw control box into access panel in beginning housing and then into wall Connect control box to access panel Connect control box to the wall...
  • Page 39 CONGRATULATIONS ON YOUR MASTERPIECE! View with the partition raised View with the partition lowered...
