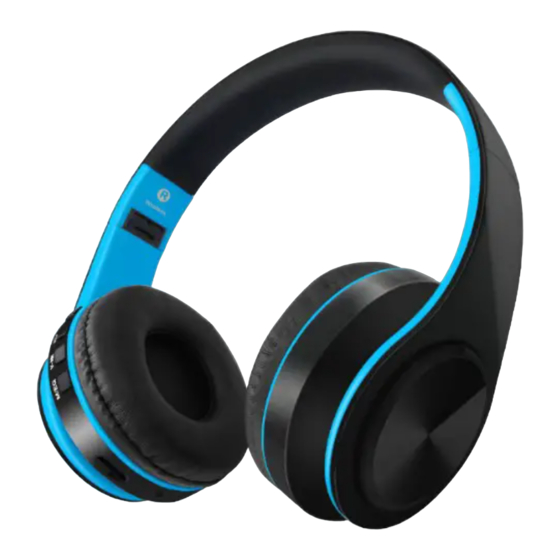

Shike Kam Wah Electronic SBT-668 Quick Start Manual

Bluetooth.Headphones
MODEL: SBT-668
Thank you very much for choose SBT-668 Bluetooth.Headphones !
Your new SBT-668.Bluetooth.Headphones are designed to link with your
Bluetooth enabled device to allow you to wirelessly listen to music and
answer phone calls within the normal 10 meter Bluetooth operating range.
J68 is compatible with Apple iPhone, iPad, iPod, Android phones or any
tablets and notebooks with Bluetooth audio support.
USB Charging Cable
Auxiliary Input Cable for Wired Use
Specifications
BT Specification Bluetooth V5.1
A2DP, AVRCP, HFP, HSP.
BT Profiles Supported
Effective range Appox. 10 m
Speaker diameter 40mm
Impedance 64Ohm
Sensitivity 102dB at 1KHz
20Hz – 20KHz
Frequency Range
Rechargeable Battery 300mAh
Working Voltage: 3.7V
Standby Current ＜8uA
Max working electric current 12mA
Micro USB (B type)
Charging socket
Talk time 52 hours
Music Play time 48hours at 80% volume
Standby Time (un-paired) 90 days or more
Charging Time 2 hours
Product outline
1 Microphone
2 Micro USB Charging Port
3
3.5mm Audio Socket
4
Volume Down / Previous Button
5 Volume Up / Skip Button
6
LED Light Indicator
7 Multi-function Button (MFB)
Using Your Earphone
Very happy you own this True wireless stereo headphones, We are here
showing you how to use it, you will easy to use this earphones after
reading this instructions. The earphones have voice prompt function，
real-time reporting of the current state, it is easy to use and convenient.
Power On/Off, First Time Pairing
While the headphones are switched off, press and hold the Button until you
hear the voice 'Power on' and 'Bluetooth pairing'.
The Blue & red Indicator will flash alternately to enter pairing mode. Go to the
Bluetooth settings on your phone and select 'J68' from
the list. Once paired, you will hear 'Connected', That meant pairing is completed.
While the headphones are switched on, press and hold the Button for 5
seconds until hear the voice 'Power off' to switch off the headphone.
Play/Pause Short press the Button
Volume Down/Up Short press the Buttons
Previous/Skip Track Press and hold the Buttons to change tracks
Answer/End Call Short press the Button
Redial Double press the Button to redial the last number when J68 is standby
Decline Call Double press the Button while call is coming
Activate Google Press and hold the Button for 2 seconds to activate Siri or Google Assistant
Assistant or Siri Listen for the familiar Voice Assist 'beep' then ask a question or state a command
Power ON/OFF Press and hold the Button
Note: Some of the functions described above may not be supported on your
specific Bluetooth device. Please check the manual of your device to ensure
the features supported by your device.
Charging
Before charge，turn off the headphone，The headphones charging cable
connect to the computer/Adaptor USB port，the LED light Indicator will turn
on in Red, it means connect with the USB successfully and the headphone is
charging. When the charging is completed, the headphones charging
indicator will turn off. When the headphones broadcasts a voice prompt:
"low battery, please charge", it indicates that the power of the headphones is
too low. Please charge your headphones in time.
Computer USB Port
Computer
connected
USB Adaptor
to working
(not included)
outlet
Note:
1. Do not turn on the headphone when charge，Or will damage headphone
hardware and battery life.
2. This headphones haven't waterproof function，Please pay attention to
water and moisture，so that to confirm the headphone can working
perfectly.
3. The headphones can not be long-term placement, please charge and
discharge once a week, thereby extending battery life.
KINDLY REMINDER
Continuous use high volume might damage hearing
WARNING
Adjust headset to the proper volume. Too Loud sound may damage your ears.
for traffic safety, never use the headset while riding a bicycle,
motor bike, or while driving a car, it is dangerous to increase
the volume too much because you can not hear external sounds.
Take great care about traffic around you.
please don't pull the cord too hard in case of breakage.
The "JBU" & "JBUNION" logo and other products,service names and logos are the
intellectual property of its owner.other third-party trademarks belong to their respective
owners are used for reference only and if third -party owners wished to removed their
reference in association with this packaging. please contact the owner of "JBU" &
"JBUNION" logo, Any use of the "JBU" & "JBUNION" Mark is prohibited without express
written permission.
Proprietor of a mark: Shenzhen Shike Kam Wah Electronic Co.,Ltd.
Manufacturer: Shenzhen Shike Kam Wah Electronic Co.,Ltd.
Address: 1st Floor NO.#36,LangKou Industrial Park,LangKou Community, Dalang,Longhua
District,ShenZhen,Guangdong,P.R.China
Website: www.china-headphone.com
E-mail: info@china-headphone.com
Service hotline: 0086-755-29538997
