A B B M E A S U R E M E N T & A N A LY T I C S | C O M M I S S I O N I N G I N S T R U C T I O N
LST200

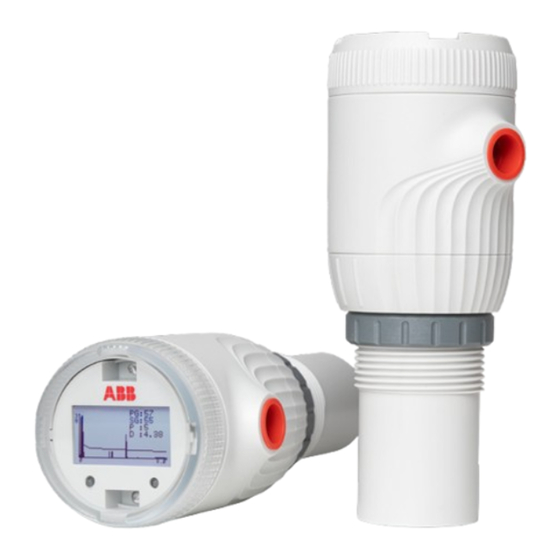

Ultrasonic level transmitter
—
LST200
Ultrasonic level
transmitter
Introduction
The LST200 is a microprocessor-
based ultrasonic level transmitter
that transmits ultrasonic pulses in
the direction of product surface.
When some of the energy is
reflected and travels back towards
the sensor, by measuring the time
elapsed between the initial pulse
and the reflected one, the
electronics can calculate the
distance.
Quick Start Guide
Professional measurement
starts from easy and intelligence
For more information
Detailed user manual, training material and videos
guide are available:
https://new.abb.com/products/measurement-
products/level/ultrasonic-level-transmitters-and-
switches/lst200
or by scanning this code:
